Plan No. 5006
$4,250.00
Skip to product information
Plan No. 5006
5 Bedroom | 4.5 Bath | 5,006 SF Home
Additional Features:
$4,250.00
Shipping calculated at checkout.
Plan Description
5 Bedroom | 4.5 Bath | 5,006 SF Home
This magnificent rustic lodge style masterpiece offers an extraordinary 5,006 square feet of grand, character-rich living space featuring 5 bedrooms, 4.5 bathrooms, and a 3-car garage — designed for those who believe bigger is better and every detail deserves attention. From the moment you step inside, the warmth and craftsmanship of lodge-inspired design surrounds you at every turn. A dedicated office, bonus room, and game room provide endless flexibility for work, relaxation, and entertainment, while a beautiful sunroom floods the home with natural light and brings the outdoors in year-round. The walk-in pantry and mudroom keep daily life organized and running smoothly, and a thoughtfully designed dog room ensures even your four-legged family members have a space to call their own. A built-in safe room adds an important layer of security and peace of mind, making this exceptional lodge-inspired retreat as safe as it is stunning.
REQUEST MODIFICATION
We will send you a quote based on your requests!
COST TO BUILD ESTIMATE
Get A Cost Estimate For This Plan
This estimate is for general budgeting only and should not be used for financing or contractor bids. Texas House Plans assumes no responsibility for estimate accuracy.
We will send you a quote based on your requests!
BEDROOMS: 5
BATHROOMS: 4.5
GARAGE SPACES: 3
HEATED SQ FT: 5,006
TOTAL COVERED SF:
WIDTH:
DEPTH:
STORIES: 2
FOUNDATION:
EXTERIOR WALLS:
ROOF PITCH:
CEILING HEIGHT 1ST FLOOR:
CEILING HEIGHT 2ND FLOOR:
WHAT YOU WILL RECIEVE:
Within 1 -2 business days of purchasing your plan, you will be sent a digital Construction Drawing set in PDF format. The drawing set includes:
Shows boundaries of the foundation and dimensions of plumbing fixtures located in the foundation. This is not a structurally engineered foundation plan, but can be used by an engineer to create one.
Floor plan showing dimensions and annotations for all interior and exterior walls, door and windows, and key elements.

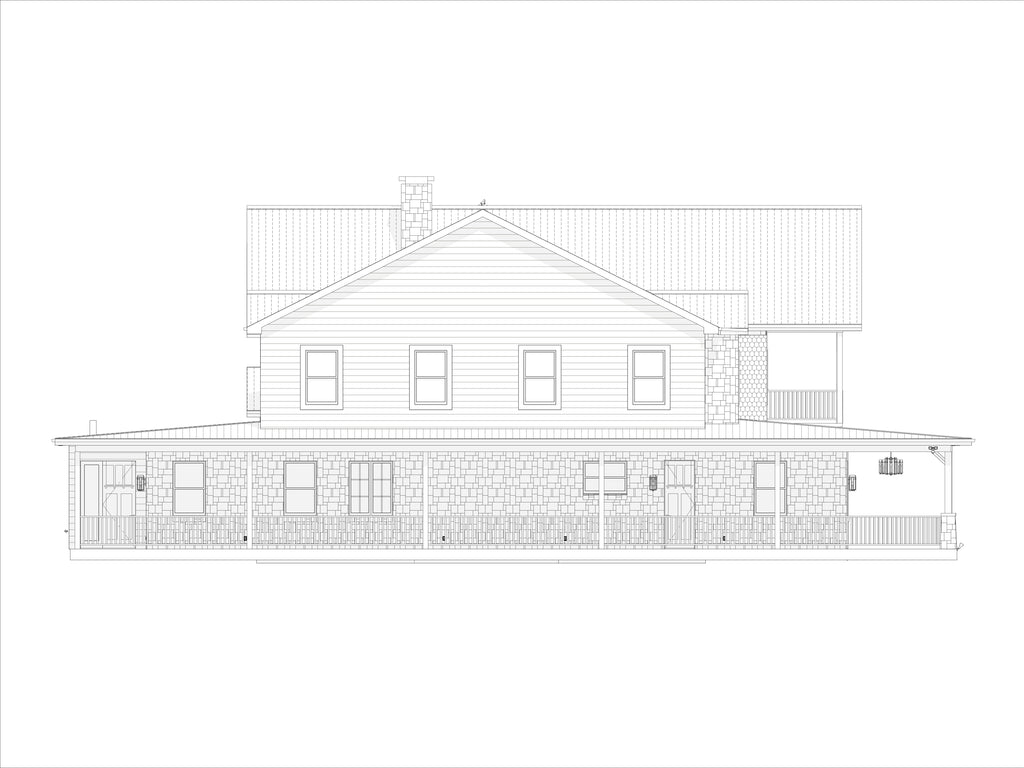

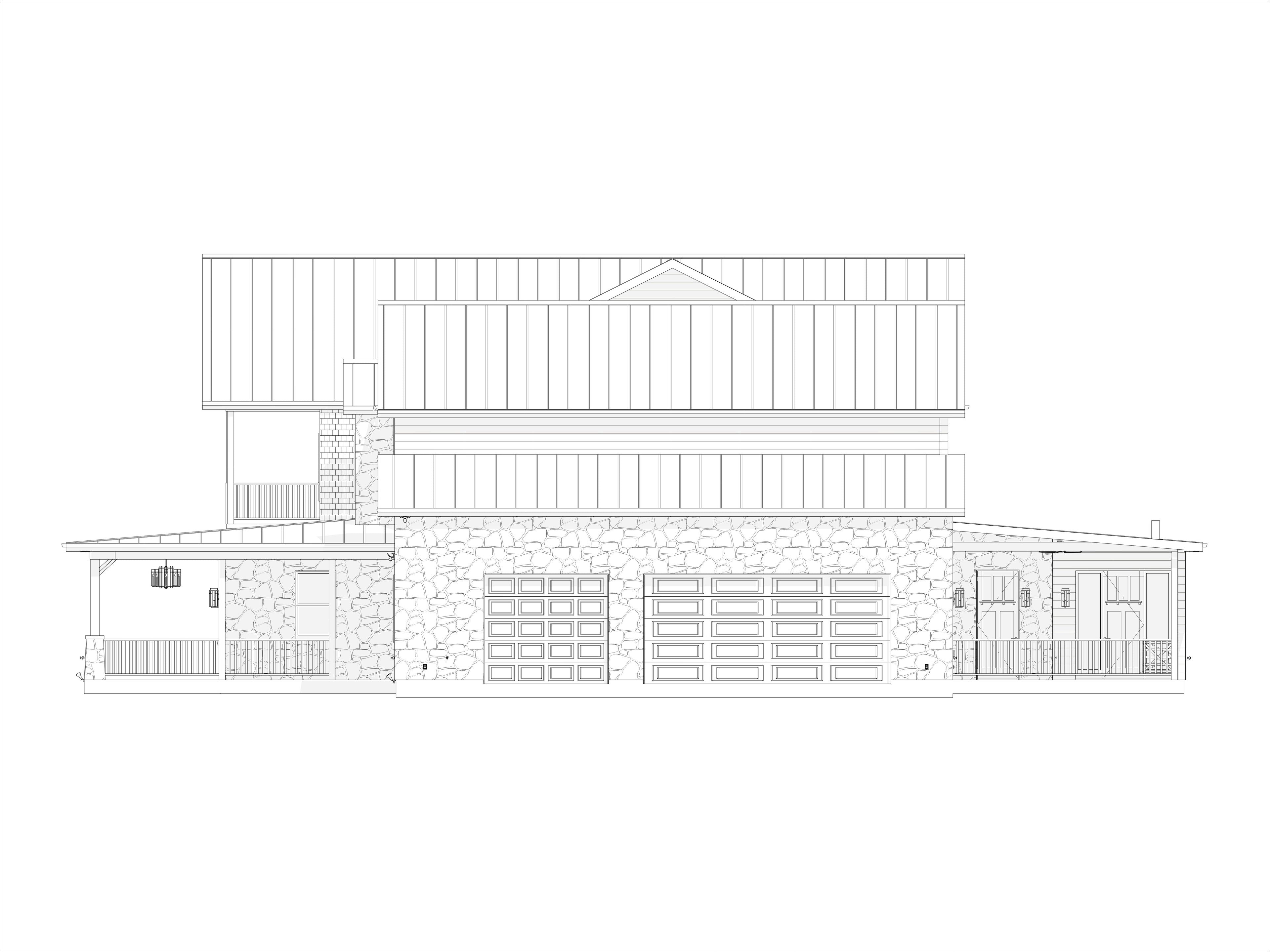

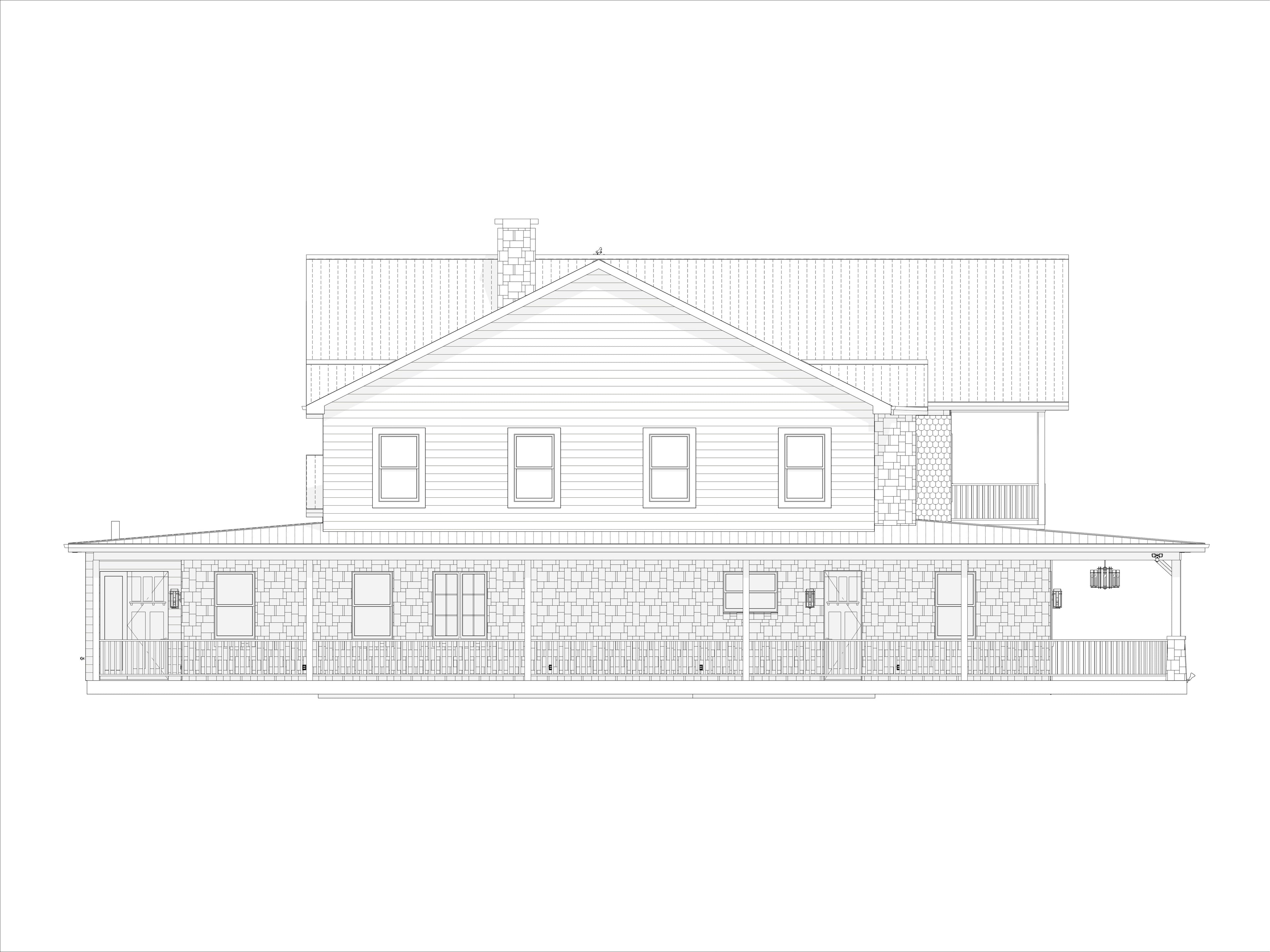

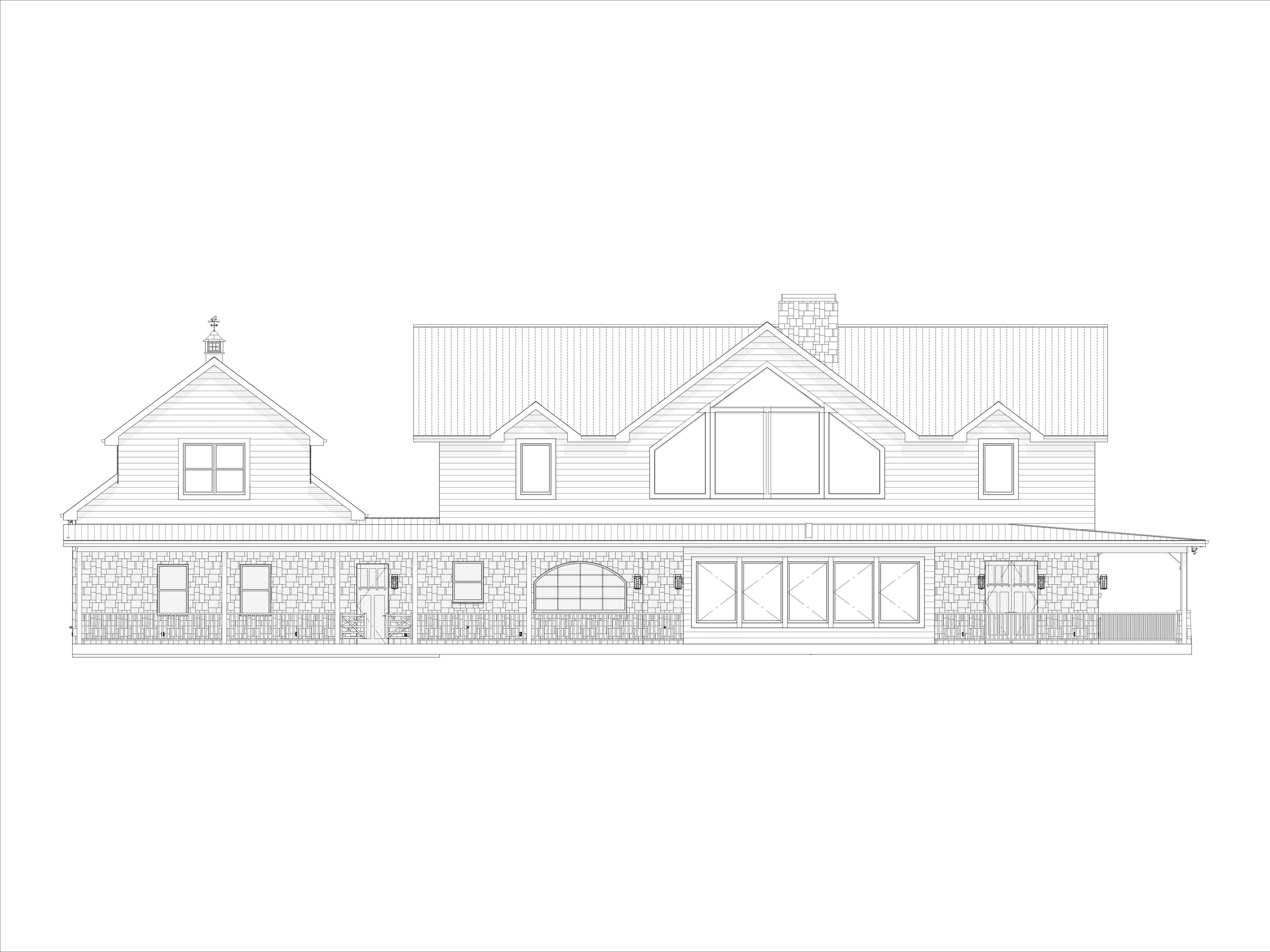

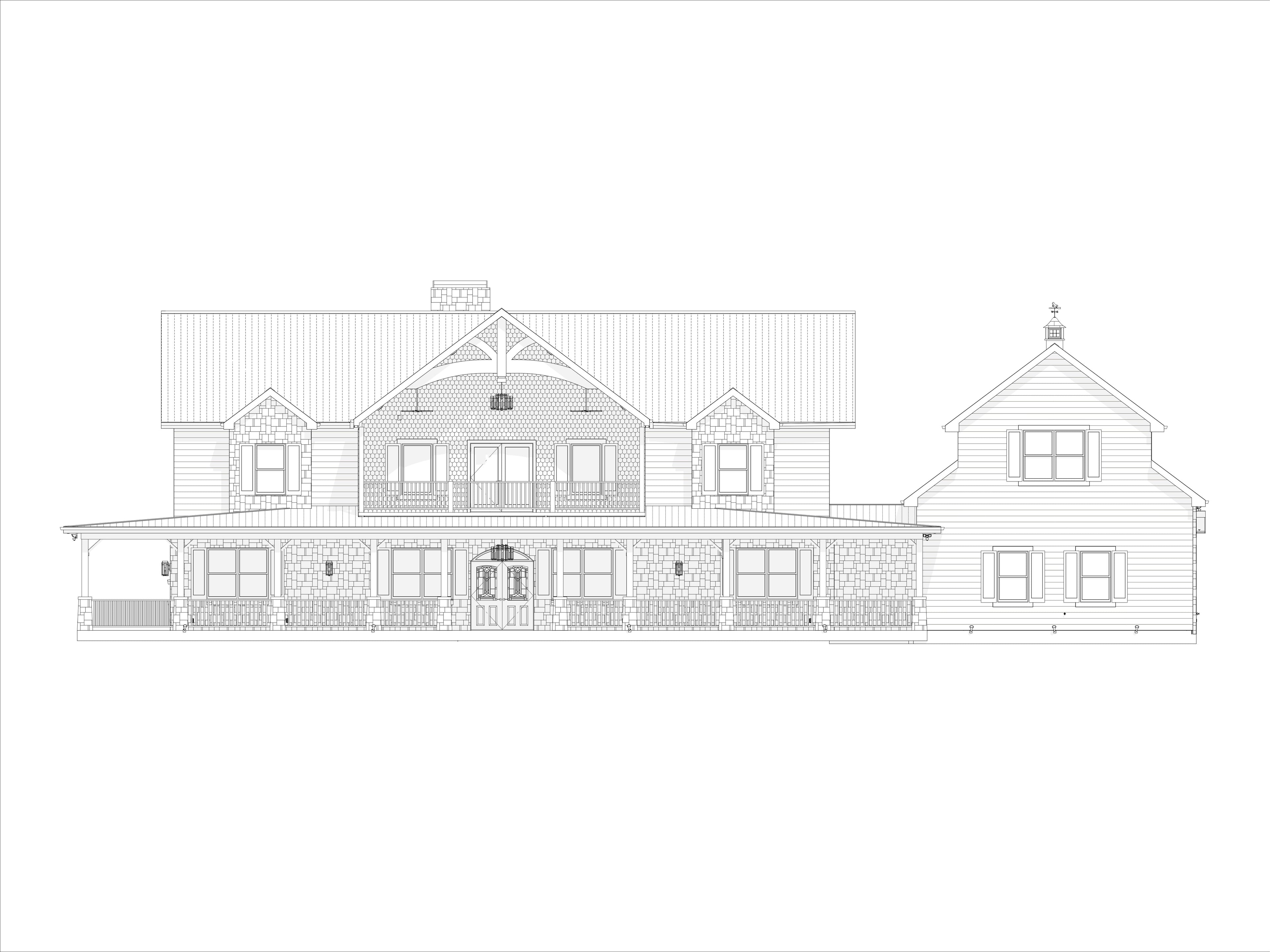

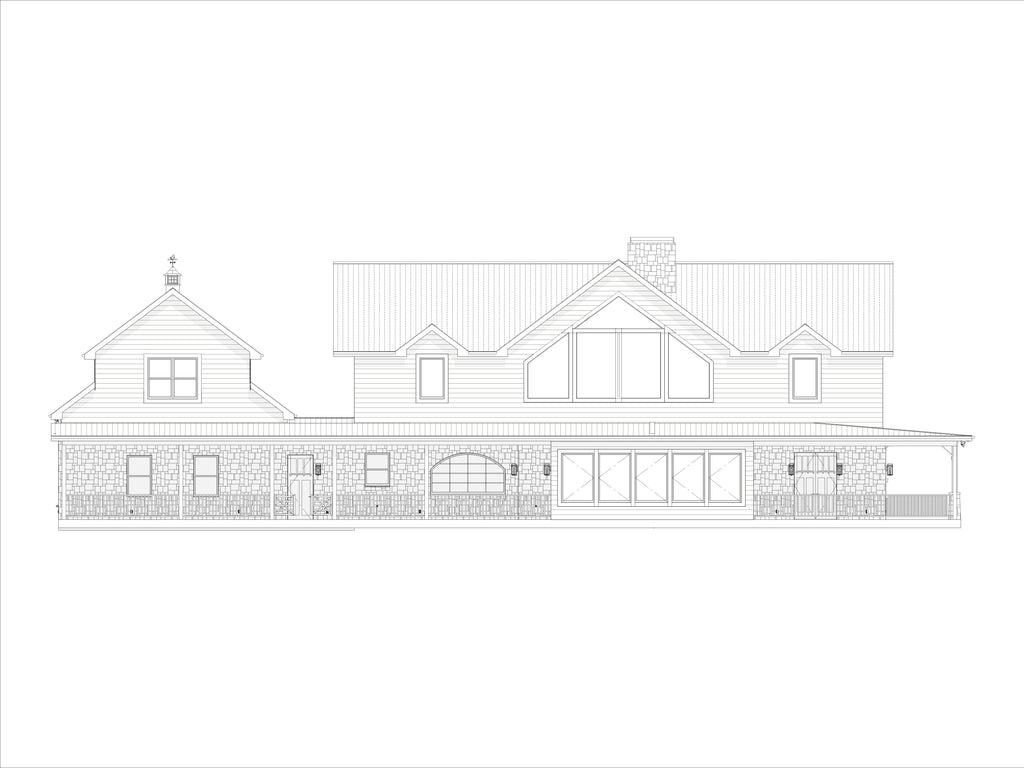

2D view of the homes exterior showing the design, finish materials, critical height relationships, door and window placements, and roof lines.
Top-down view of the roof, including ridge, valley, and hip locations, roof pitches, overhangs, and gutter and downspout locations.
Shows a section cut through the house and typical wall assembly. Shows details on how the wall is constructed and critical building heights.
Shows the location of light fixtures, switches, and outlets in the home.
This set includes:

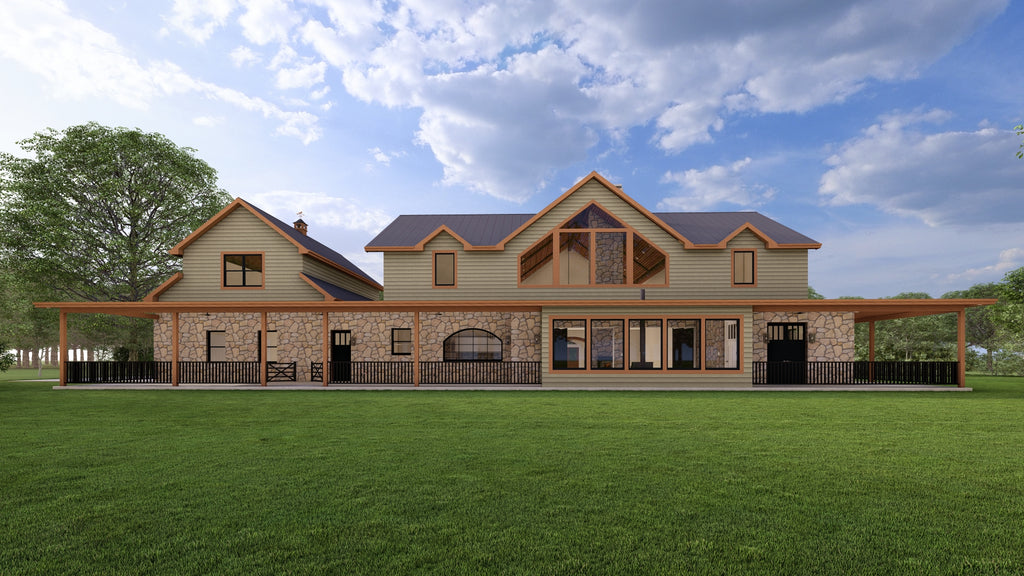

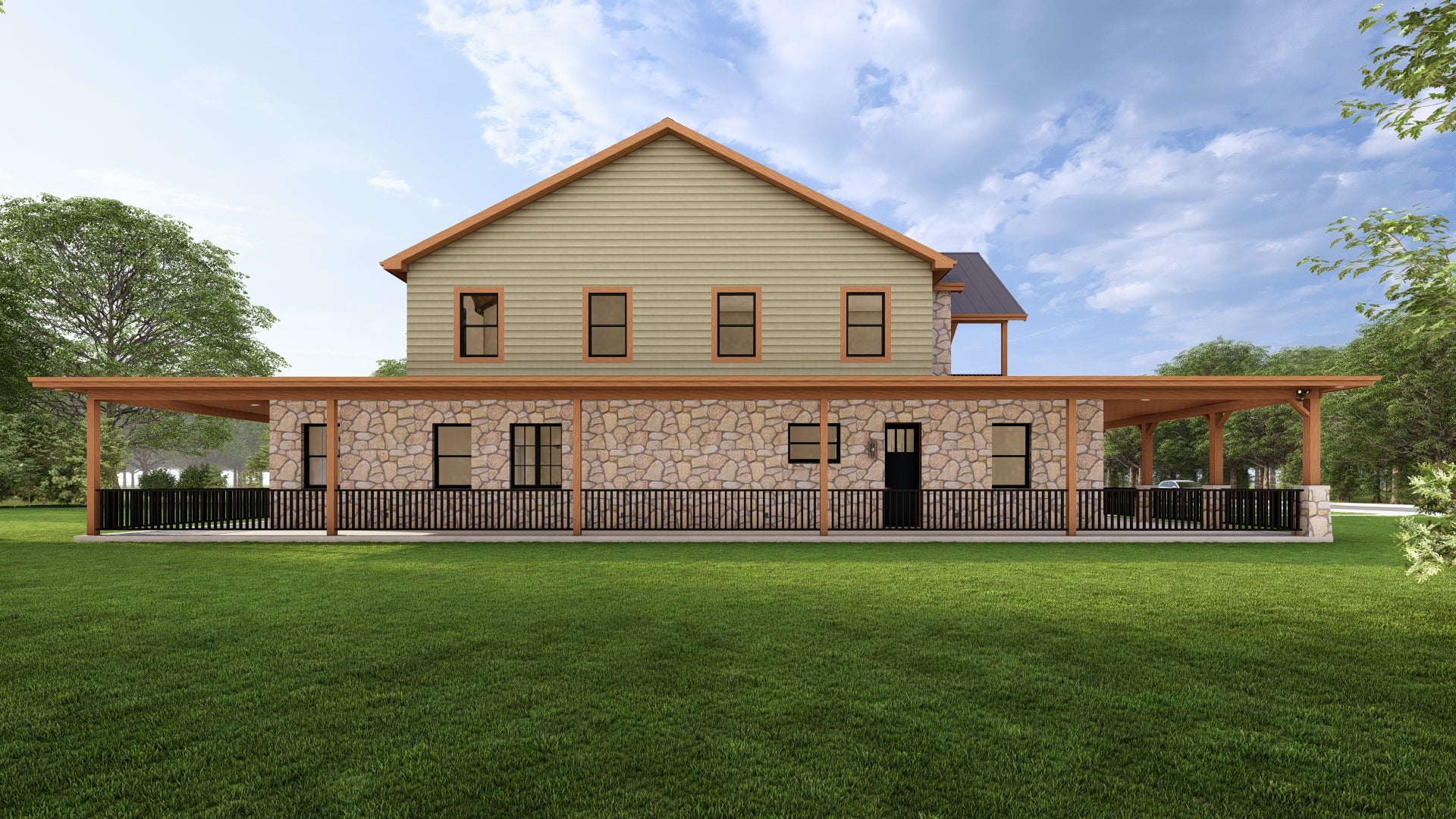

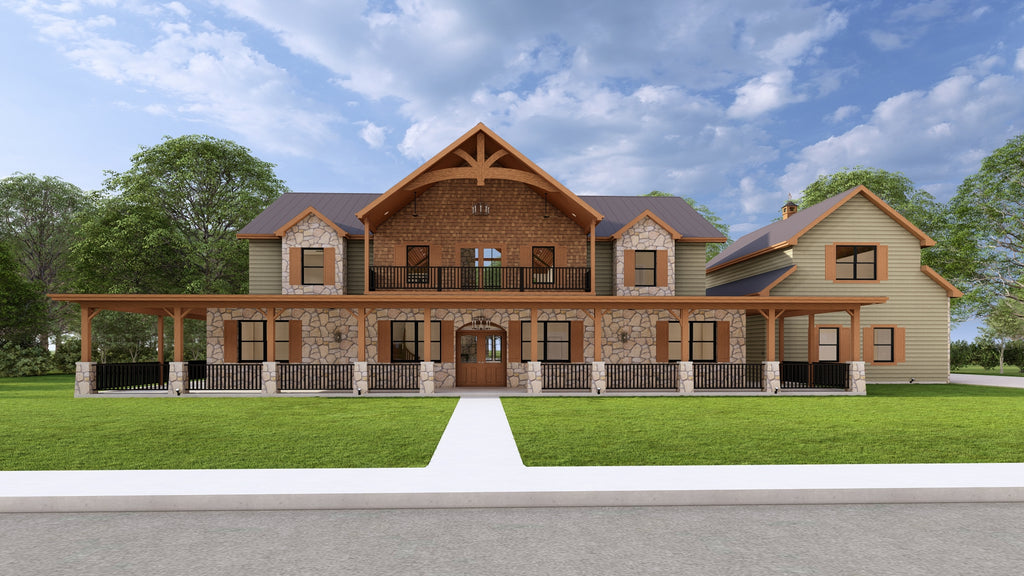

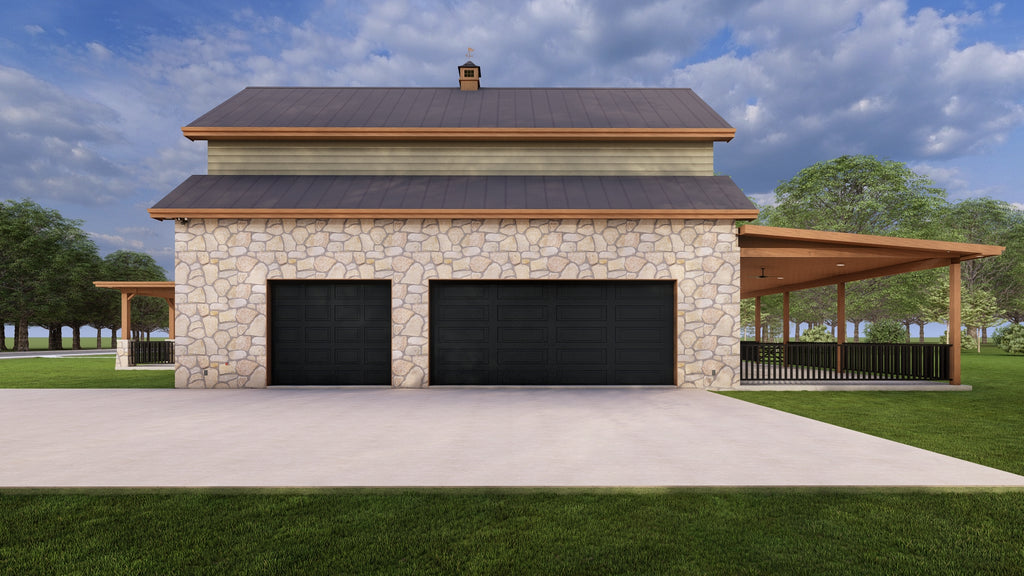

- Exterior Rendering
- Foundation + Plumbing Layout Plan
- Dimensioned Floor Plan
- Exterior Elevations
- Roof Plan
- Door + Window Schedule
- Lighting and Power Plan
- Cross Section + Wall Section
- Typical Details
The set does not include:
- Architectural or Engineering Stamp - handled locally if required
- Structural Foundation or Framing Plans
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings showing the actual plumbing pipe sizes and locations- your subcontractors handle this
- Energy calculations
- Site Plan (Add-on available)
- Cabinet Elevations (Add-on available)
Frequently asked questions
Can I request modifications to a house plan?
Yes! Click the Request Modifications button under the Plan Description and fill out the form. We will provide a quote for the additional charge for the changes.
Are any purchases final sale?
Yes, because these are electronic files we are not able to offer refunds on plans that have been sent. If you have issues with an order please send us an email.
When will I get my order?
You will receive your drawing set via email set within 1 business day after purchase.
Do you offer printed sets?
While we don't offer printed sets, we can offer recommendations on where to get full size drawings sets printed. We also recommend checking with your builder for access to printed sets.
