Plan No. 0004

$2,000.00

Plan No. 0004

0 Bedroom | 1 Bath | 476 SF Home

476

SQUARE FEET

NUMBER OF BEDROOMS

1.0

NUMBER OF BATHROOMS

GARAGE SPACES

NUMBER OF STORIES

Cabin

HOUSE STYLE

Additional Features: Studio, Covered Porch, Open Floor Plan

Studio | 1 Bath | 476 SF Home

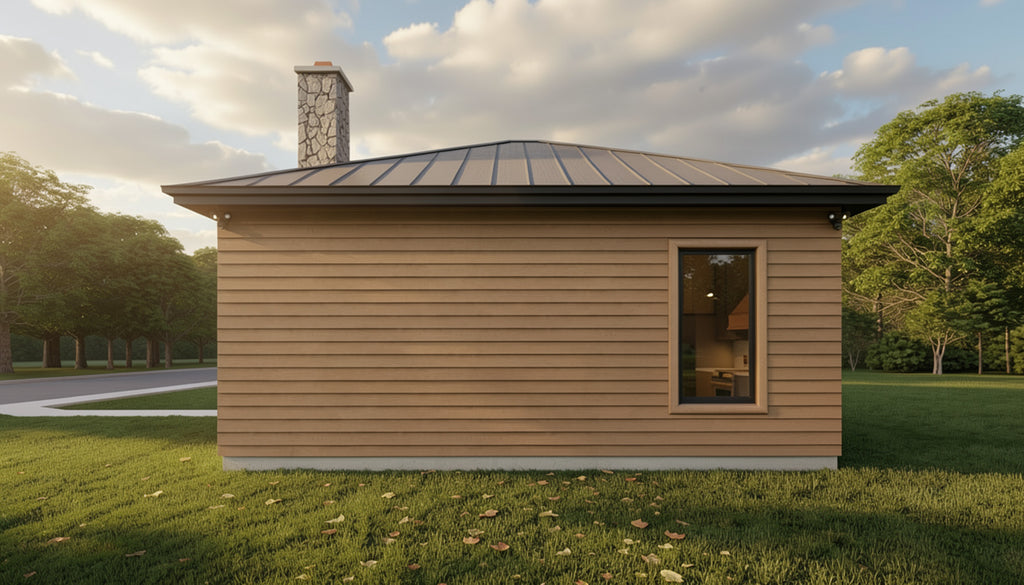

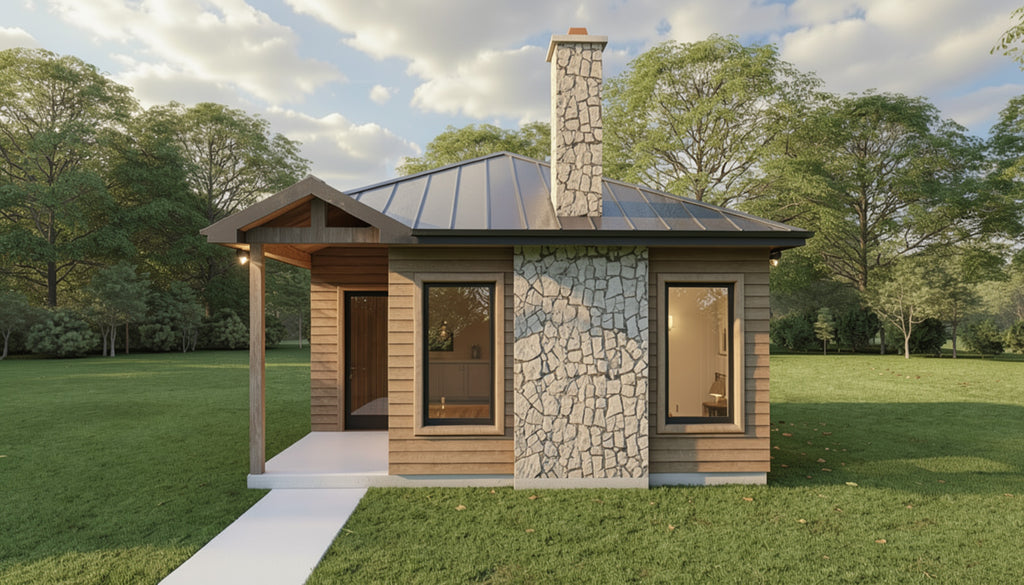

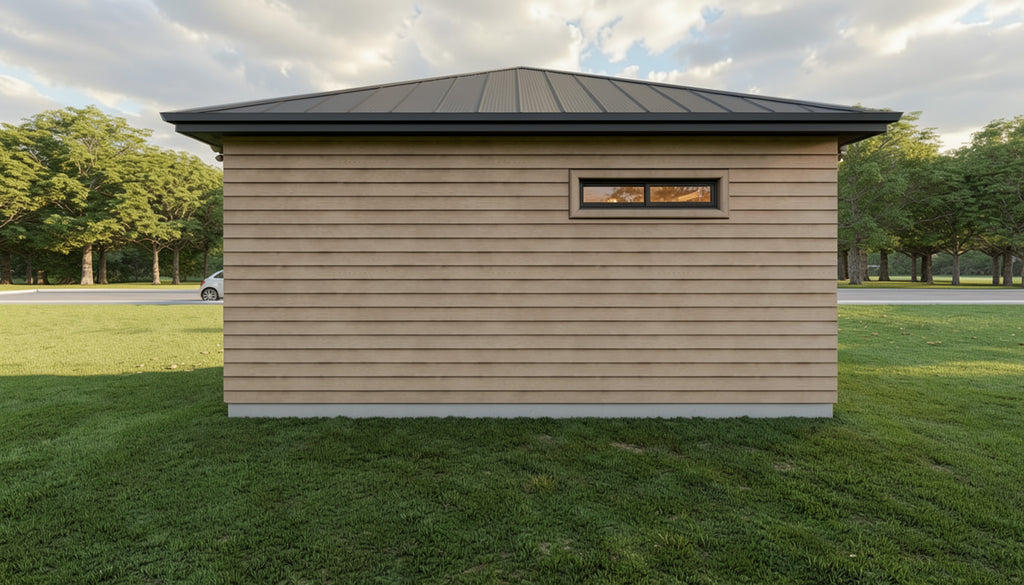

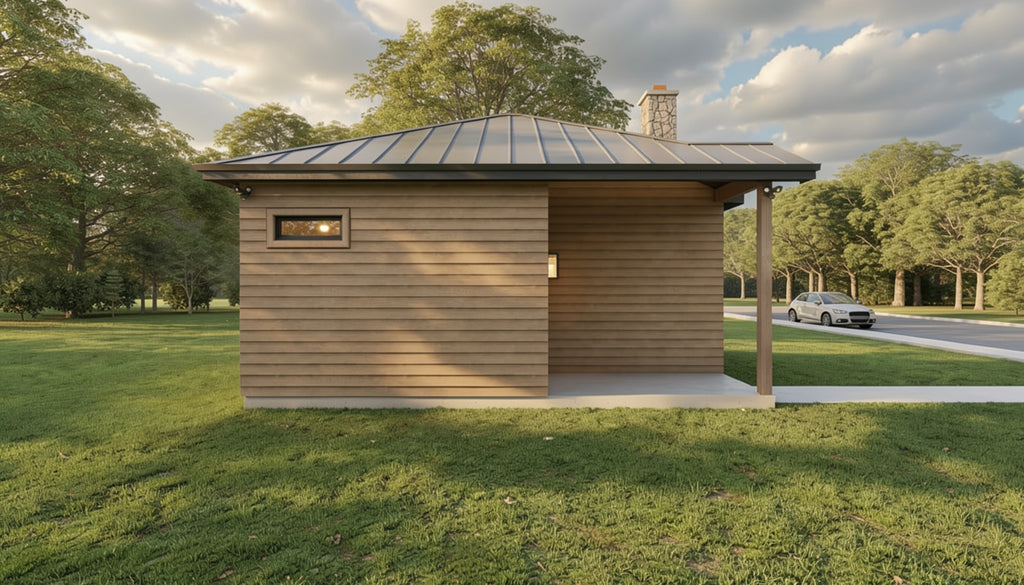

This delightful one-story cabin style ADU packs charm and smart design into just 476 square feet of efficient, self-contained living space featuring a studio layout and 1 bathroom — proving that great things truly do come in small packages. Every inch of this thoughtfully designed plan has been carefully considered to maximize comfort, functionality, and livability without feeling cramped or compromised. The sweet cabin aesthetic adds undeniable curb appeal and character, making it a seamless and attractive addition to any existing property. Whether used as a guest suite, rental unit, in-law quarters, home office, or private retreat, this versatile little gem offers endless possibilities and outstanding value. Affordable to build, easy to maintain, and impossible not to love, this cottage ADU is the perfect solution for homeowners looking to make the most of their property.

$2,000.00

Within 1 business day of purchasing your plan, you will be sent an electronic Construction Drawing Set with the following sheets:

Foundation + Plumbing Layout Plan
Dimensioned Floor Plan
Exterior Elevations
Roof Plan
Door + Window Schedule
Lighting and Power Plan

The set does not include:

Architectural or Engineering Stamp - handled locally if required
Structural Foundation or Framing Plans
Site Plan
-Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings showing the actual plumbing pipe sizes and locations- your subcontractors handle this
Energy calculations

CONSTRUCTION DRAWING SET INCLUDES:

FOUNDATION + PLUMBING LAYOUT PLAN

Shows boundaries of the foundation and dimensions of plumbing fixtures located in the foundation. This is not a structurally engineered foundation plan, but can be used by an engineer to create one.

DIMENSIONED FLOOR PLAN

Floor plan showing dimensions and annotations for all interior and exterior walls, door and windows, and key elements.

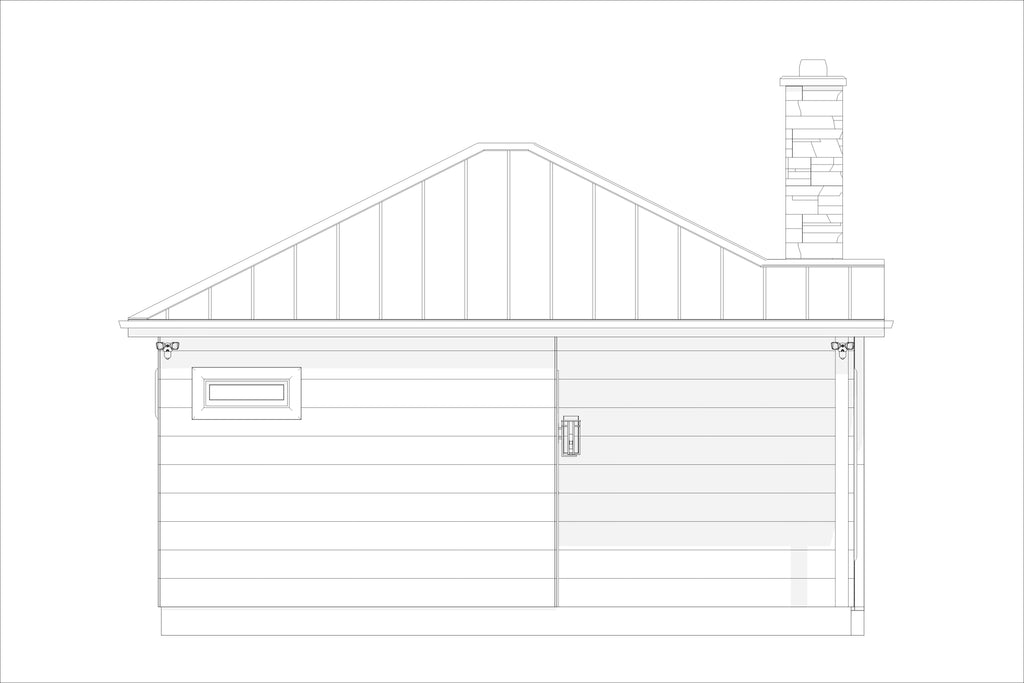

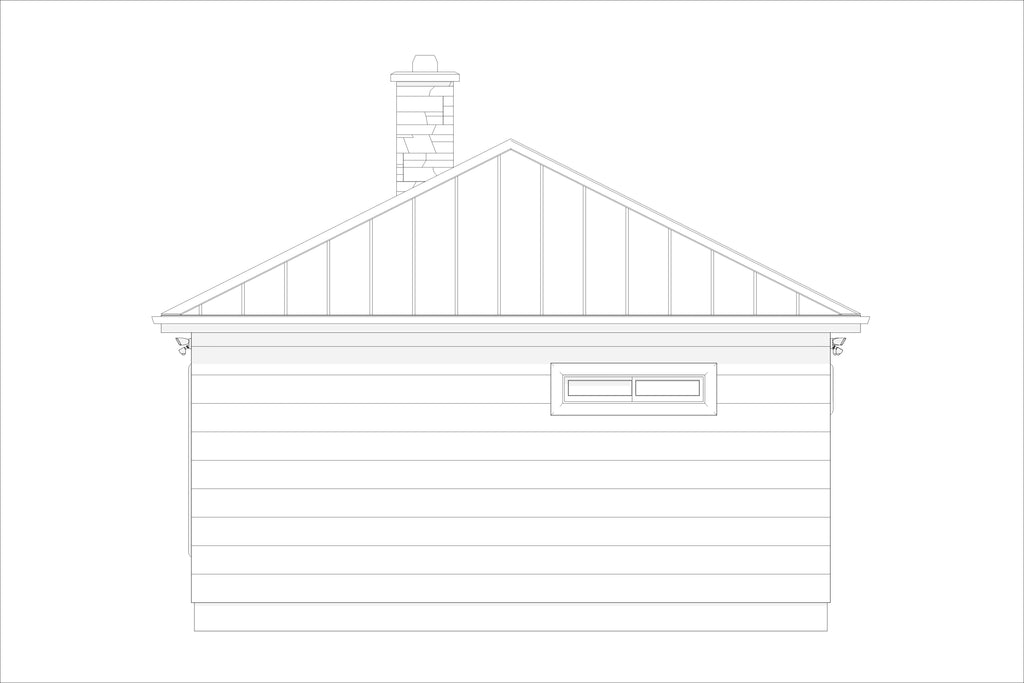

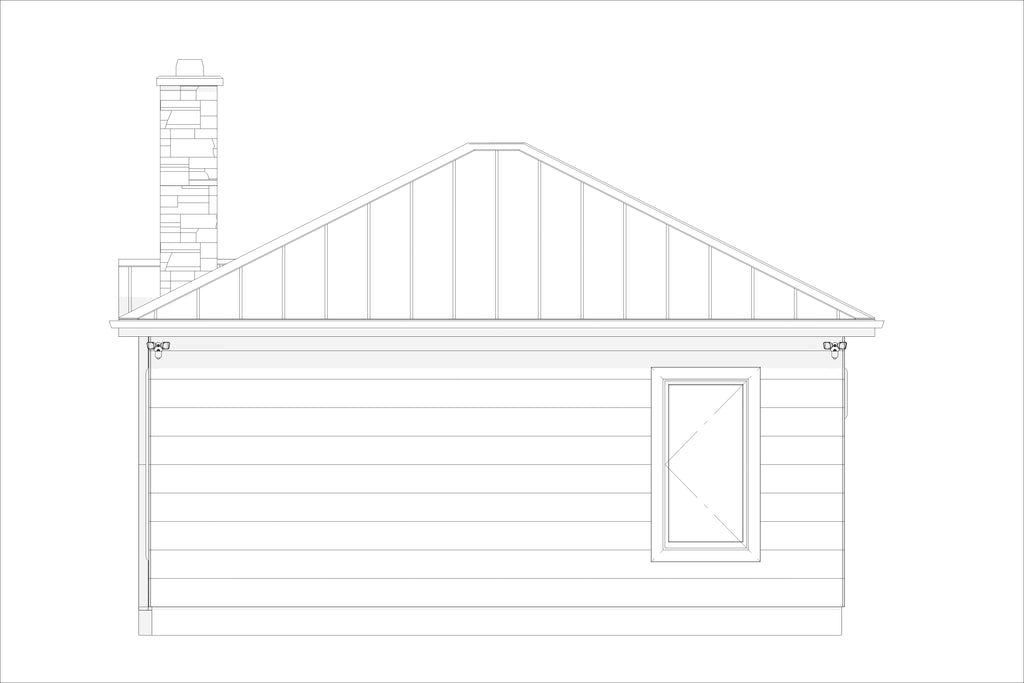

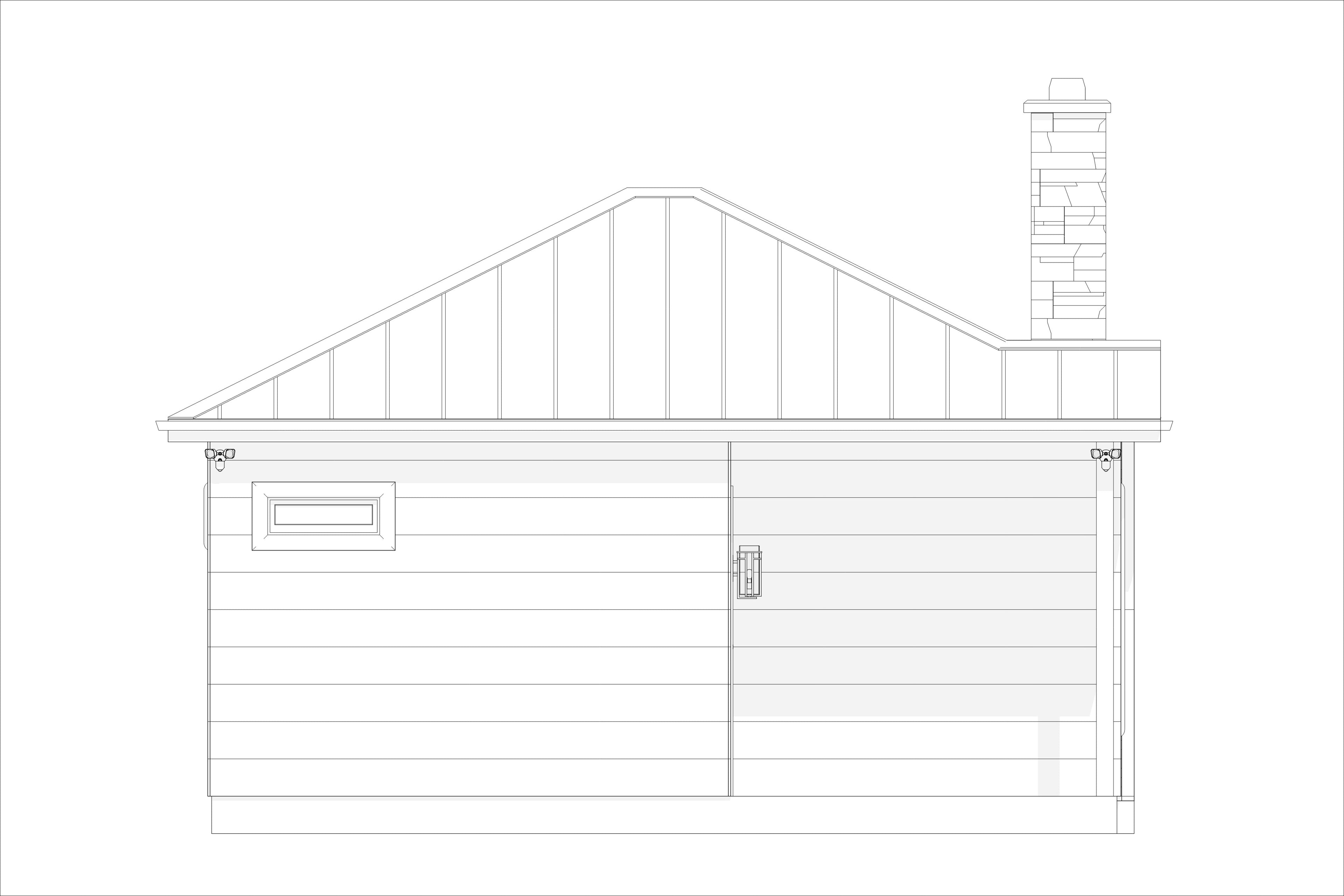

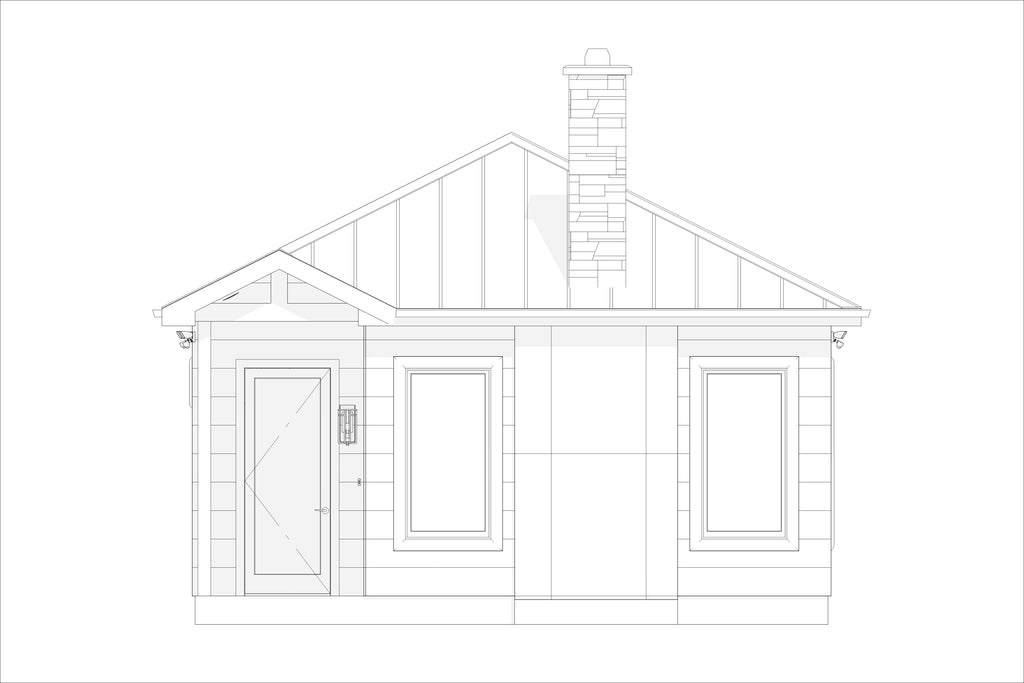

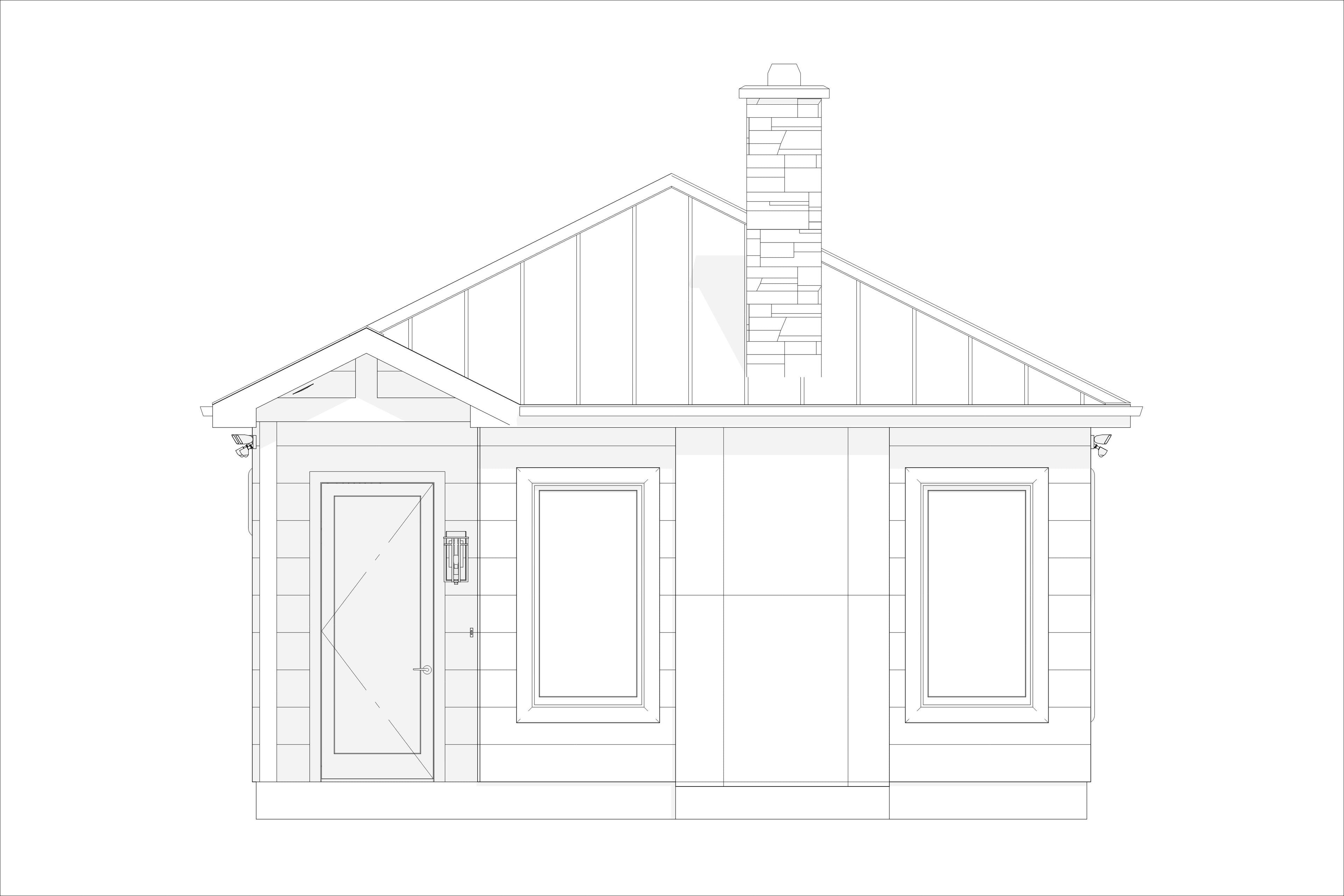

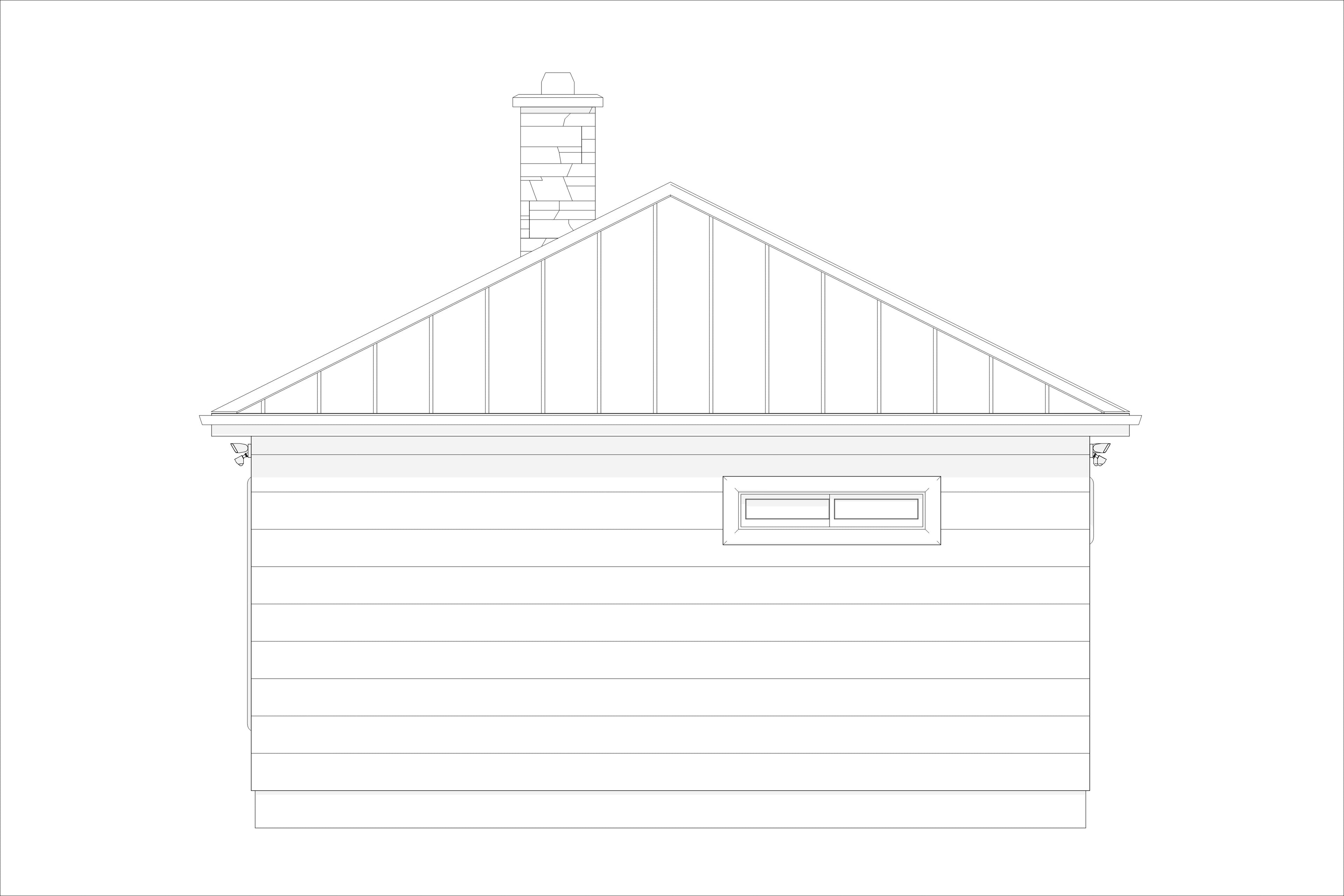

EXTERIOR ELEVATIONS

2D view of the homes exterior showing the design, finish materials, critical height relationships, door and window placements, and roof lines.

ROOF PLAN

Top-down view of the roof, including ridge, valley, and hip locations, roof pitches, overhangs, and gutter and downspout locations.

DOOR + WINDOW SCHEDULE

Shows quantity, type, and size of the doors and windows located in the house.

LIGHTING + POWER PLAN

Shows the location of light fixtures, switches, and outlets in the home.

Frequently asked questions

If you would like to make modifications to a house plan, please email us at admin@texashouseplans.com with the plan number and modifcation requests. We will provide a quote for the additional charge for the changes.

Yes, because these are electronic files we are not able to offer refunds on plans that have been sent. If you have issues with an order please send us an email.

You will receive your drawing set via email set within 1 business day after purchase.

While we don't offer printed sets, we can offer recommendations on where to get full size drawings sets printed. We also recommend checking with your builder for access to printed sets.
