Plan No. 1017
$1,250.00
Skip to product information
Plan No. 1017
2 Bedroom | 2 Bath | 1,734 SF Home
Additional Features:
$1,250.00
Shipping calculated at checkout.
Plan Description
2 Bedroom | 2 Bath | 1,734 SF Home
This warm and unpretentious one-story rustic style home offers 1,734 square feet of cozy, character-rich living space featuring 2 bedrooms, 2 bathrooms, and no garage — designed for those who appreciate simplicity, warmth, and a home that feels genuinely lived in. Covered porches set the tone for relaxed outdoor living, while a flexible den provides the extra space every household finds a use for, whether a reading nook, hobby room, or casual sitting area. A spacious walk-in pantry keeps the kitchen well-stocked and organized, adding a practical touch that punches well above the home's modest footprint. With simple construction in mind, this rustic plan is an affordable and attainable build that doesn't sacrifice charm or comfort — an ideal choice for those looking to build smart without compromising on the things that make a house feel like home.
REQUEST MODIFICATION
We will send you a quote based on your requests!
COST TO BUILD ESTIMATE
Get A Cost Estimate For This Plan
This estimate is for general budgeting only and should not be used for financing or contractor bids. Texas House Plans assumes no responsibility for estimate accuracy.
We will send you a quote based on your requests!
BEDROOMS: 2
BATHROOMS: 2.0
GARAGE SPACES: 0
HEATED SQ FT: 1,734
TOTAL COVERED SF:
WIDTH: 60'-0"
DEPTH: 37'-10"
STORIES: 1
FOUNDATION:
EXTERIOR WALLS:
ROOF PITCH:
CEILING HEIGHT 1ST FLOOR:
CEILING HEIGHT 2ND FLOOR:
WHAT YOU WILL RECIEVE:
Within 1 -2 business days of purchasing your plan, you will be sent a digital Construction Drawing set in PDF format. The drawing set includes:
Shows boundaries of the foundation and dimensions of plumbing fixtures located in the foundation. This is not a structurally engineered foundation plan, but can be used by an engineer to create one.

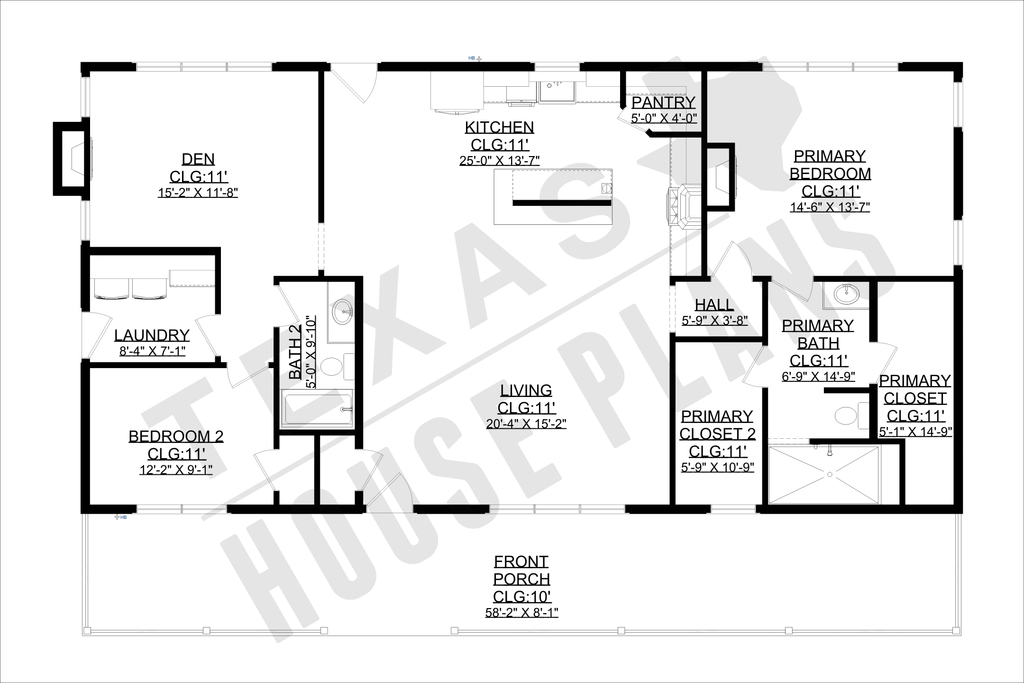

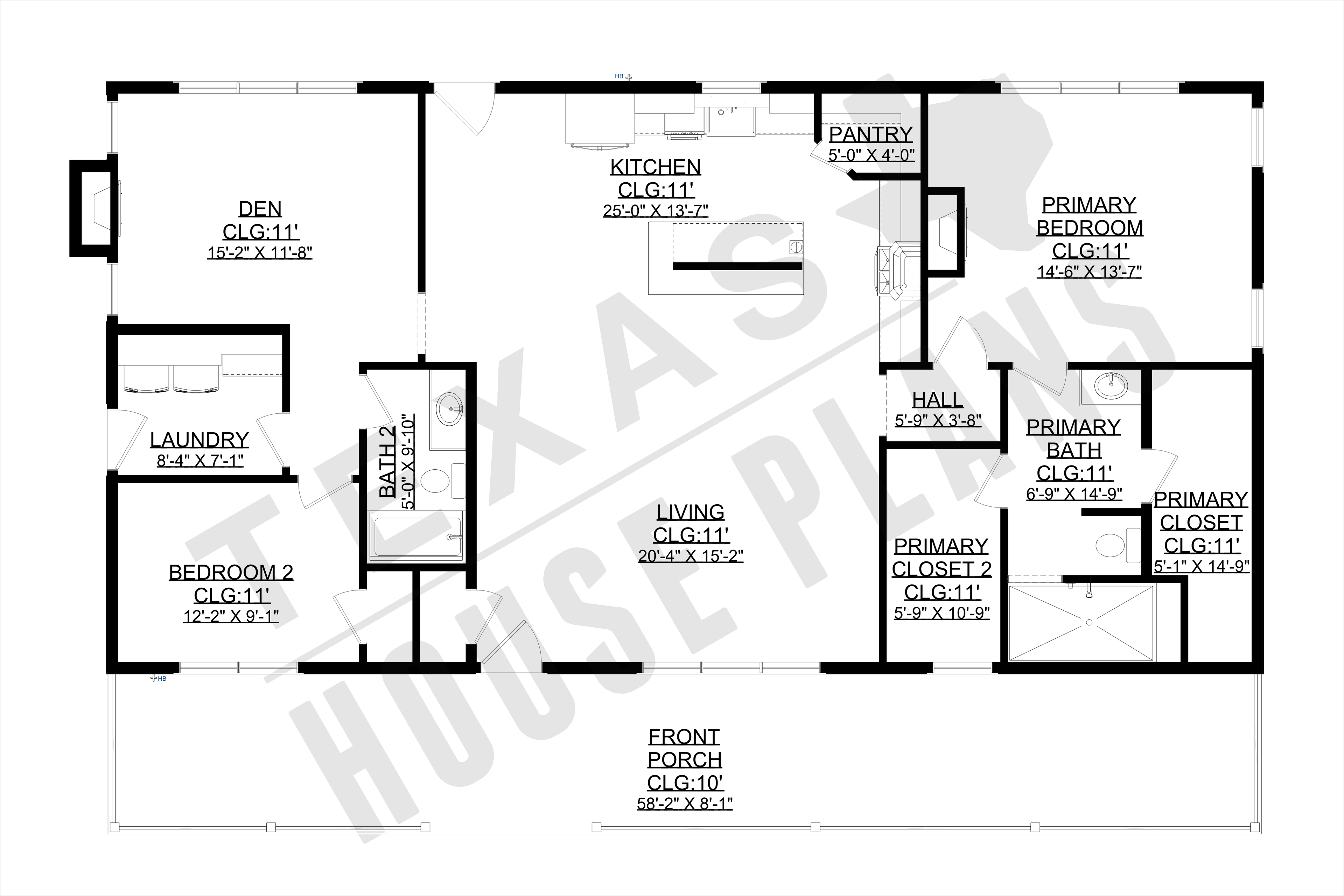

Floor plan showing dimensions and annotations for all interior and exterior walls, door and windows, and key elements.

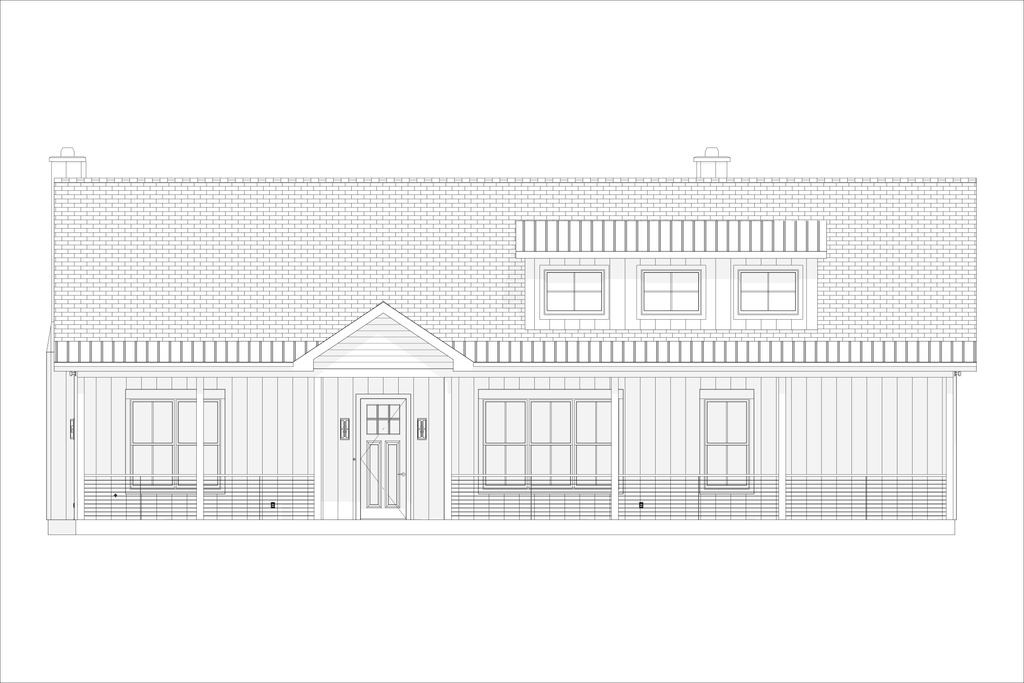

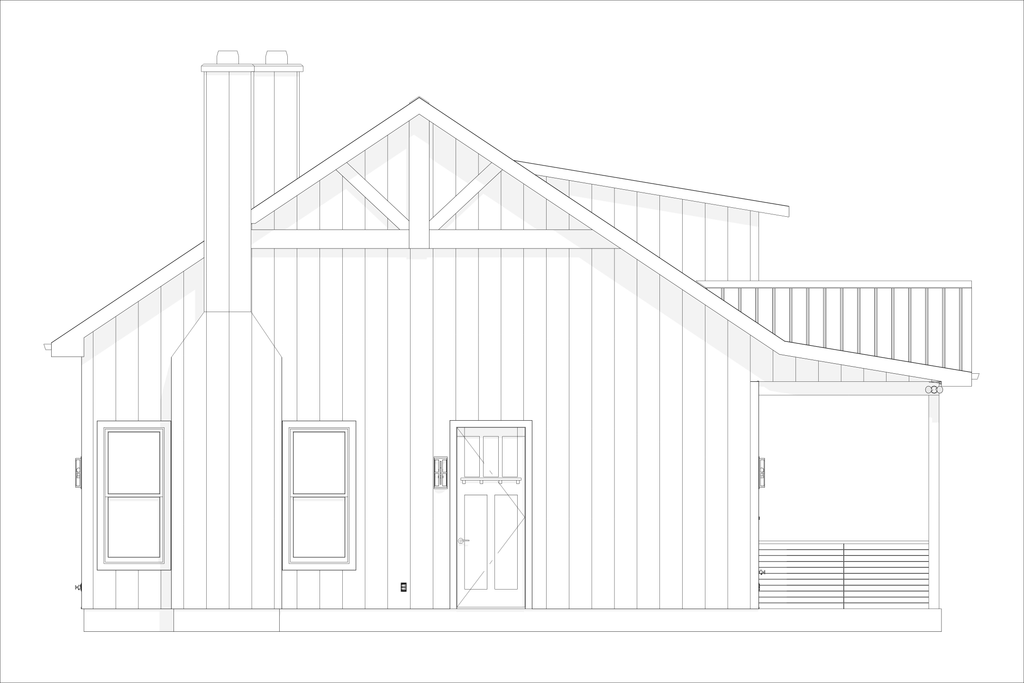

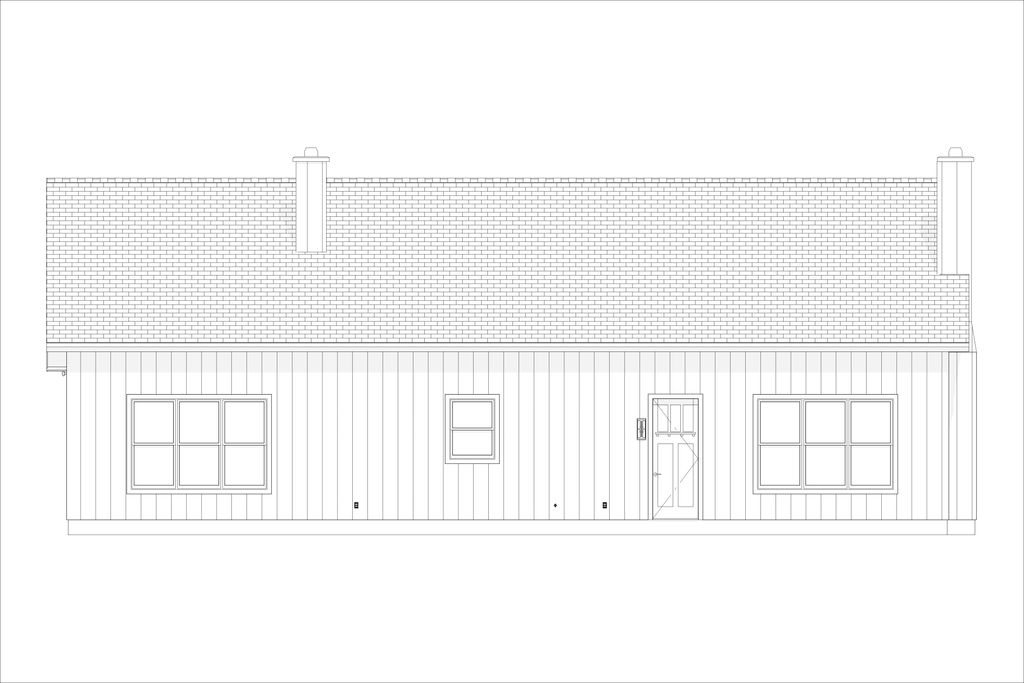

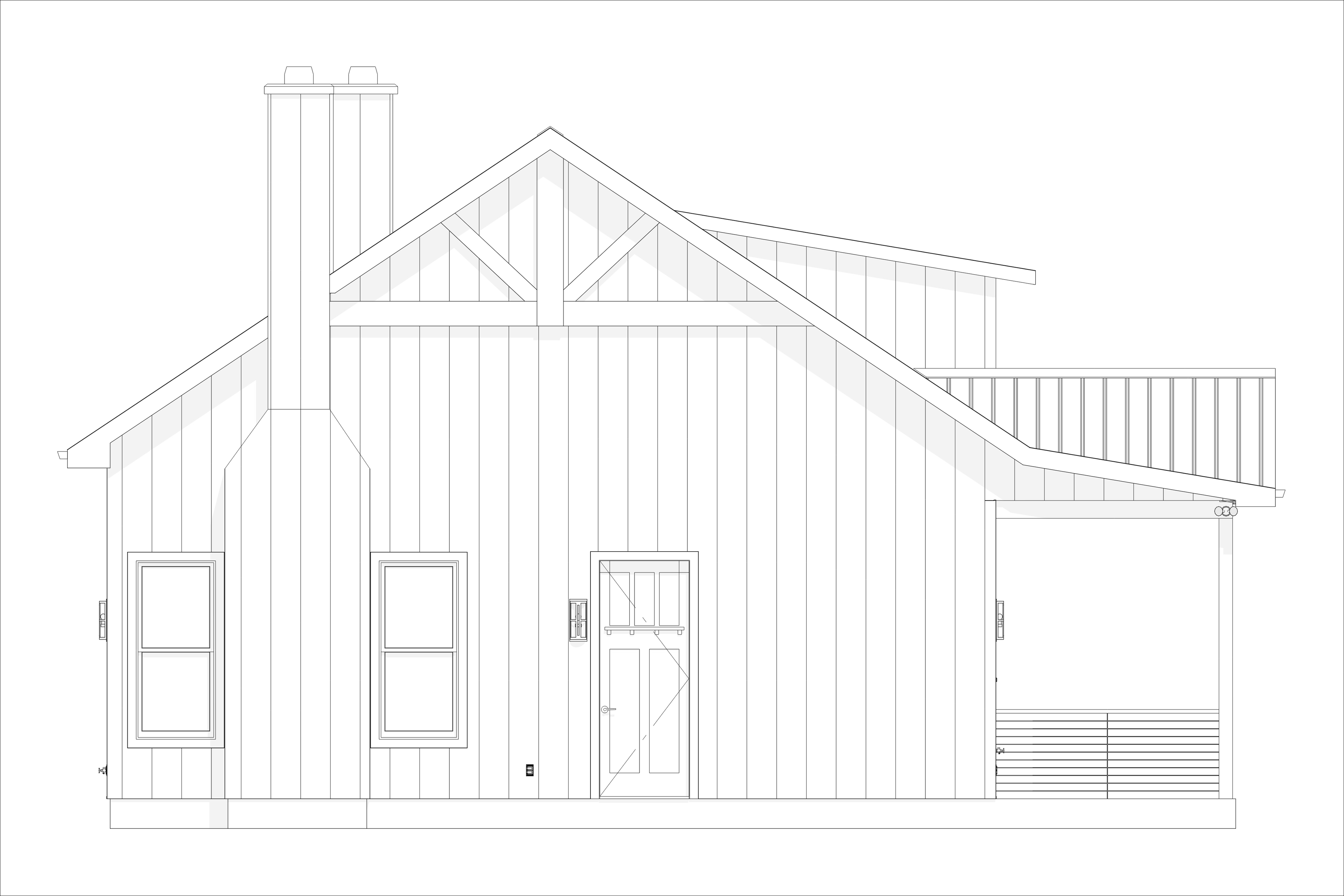

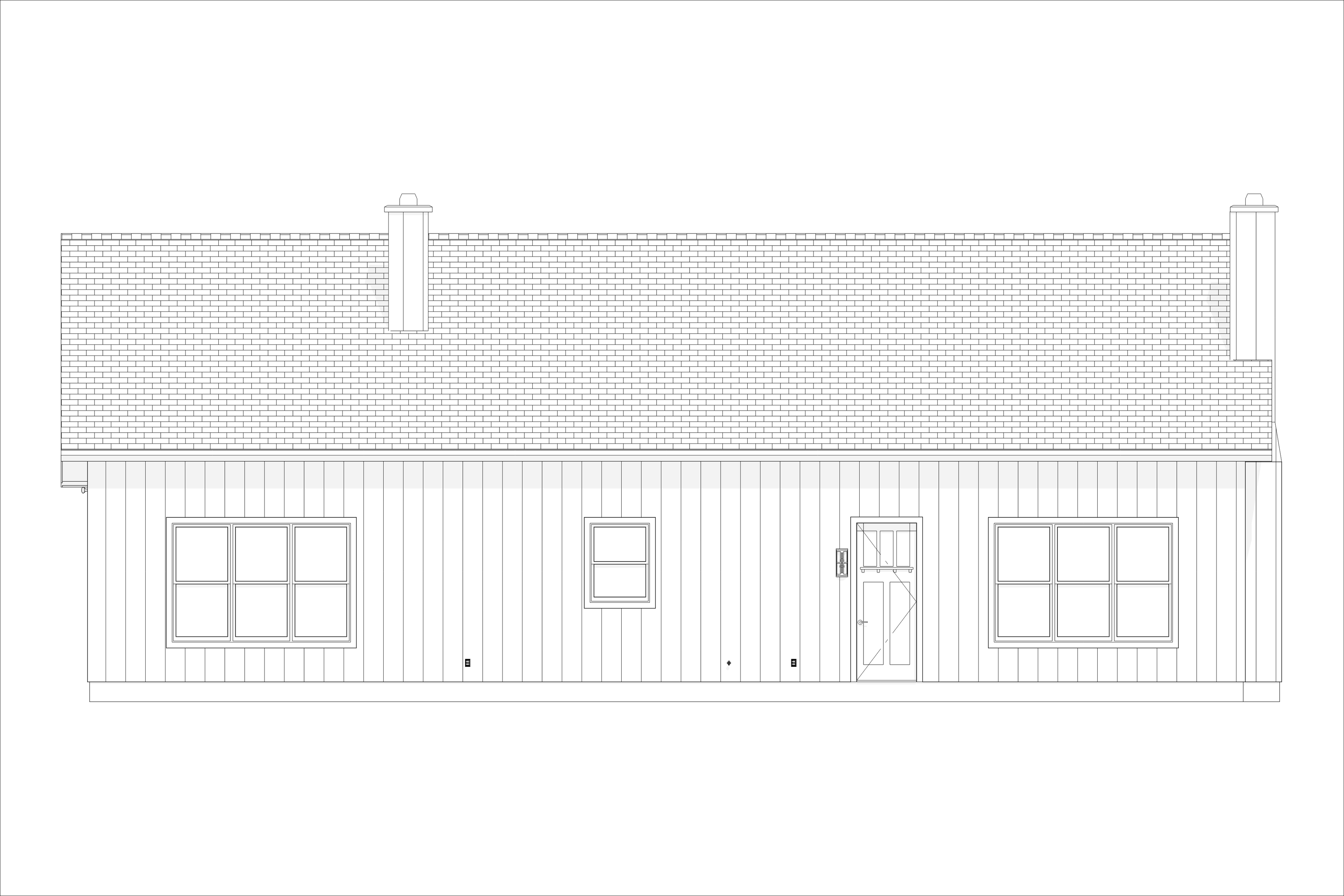

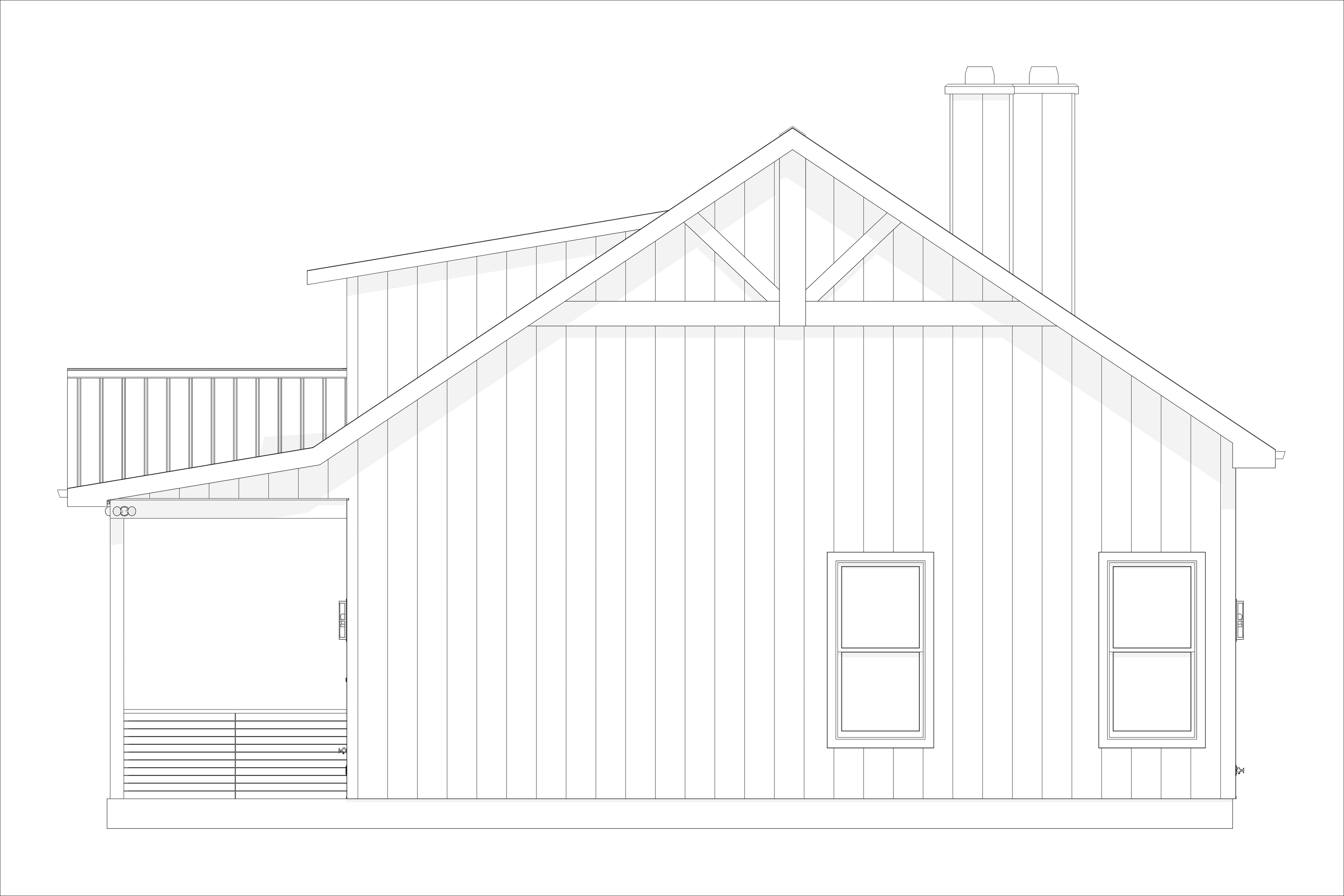

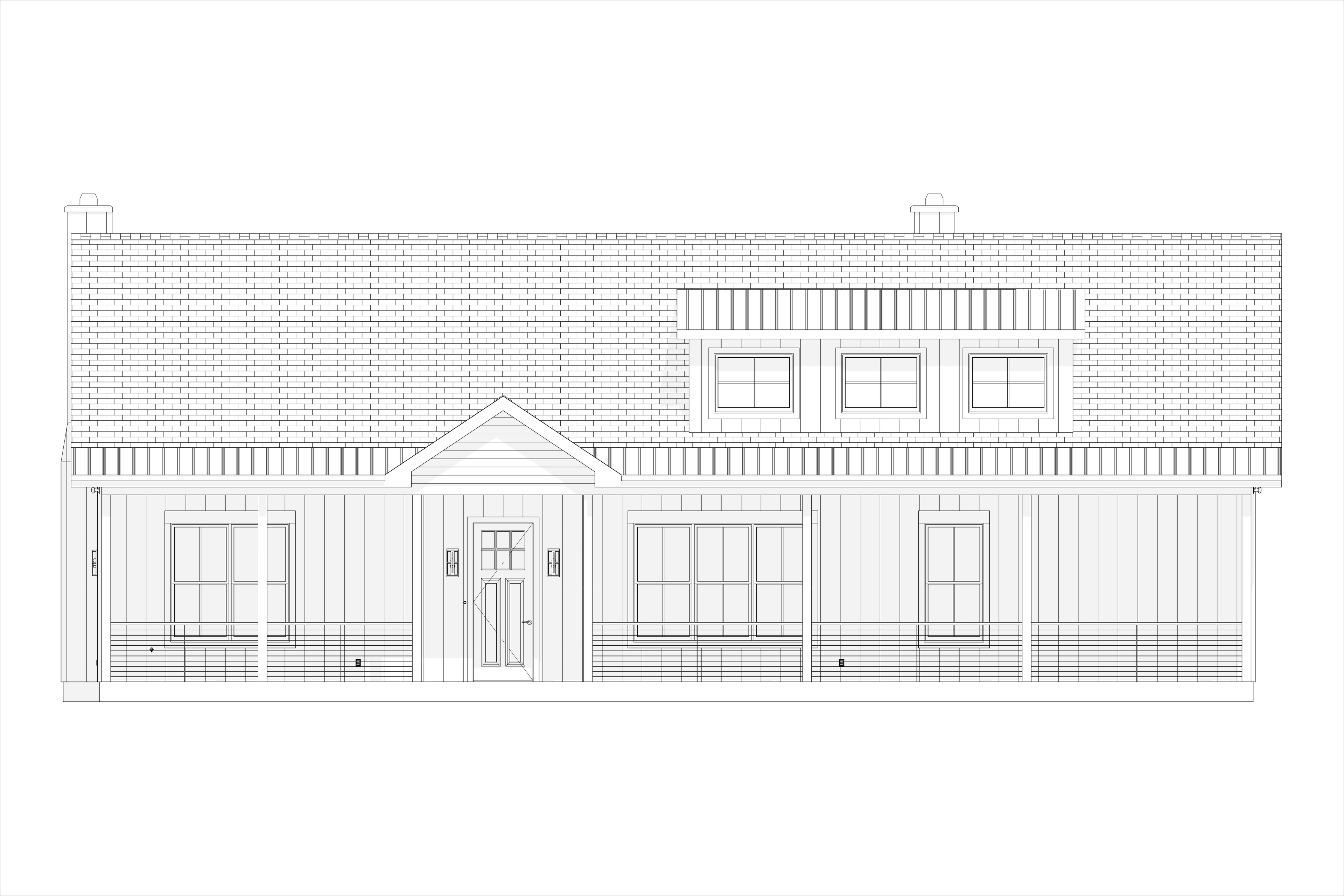

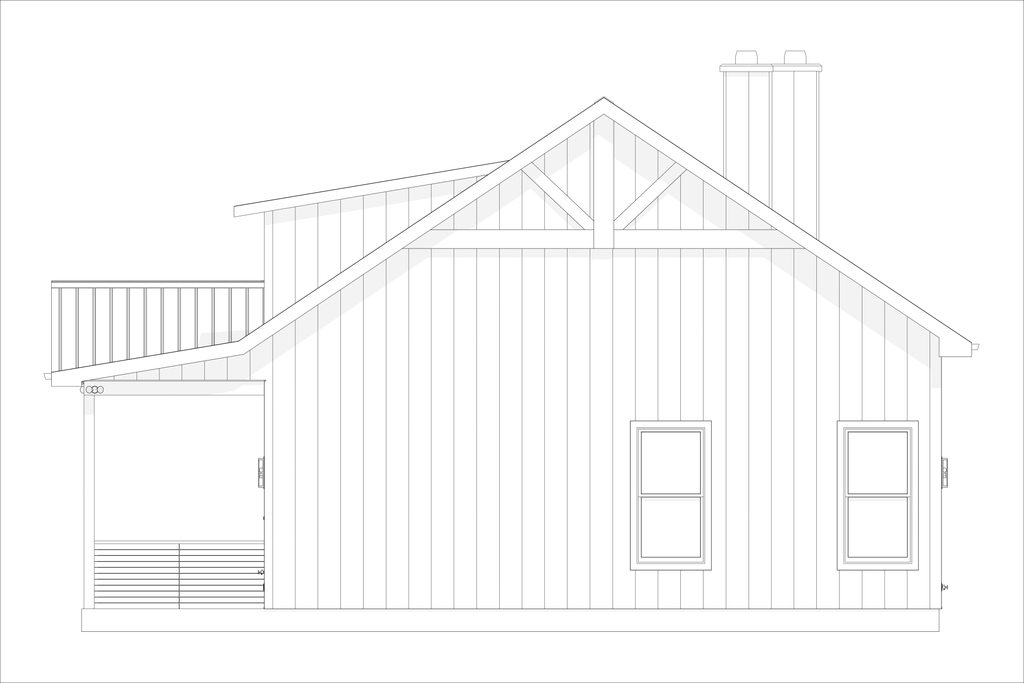

2D view of the homes exterior showing the design, finish materials, critical height relationships, door and window placements, and roof lines.
Top-down view of the roof, including ridge, valley, and hip locations, roof pitches, overhangs, and gutter and downspout locations.
Shows a section cut through the house and typical wall assembly. Shows details on how the wall is constructed and critical building heights.
Shows the location of light fixtures, switches, and outlets in the home.
This set includes:

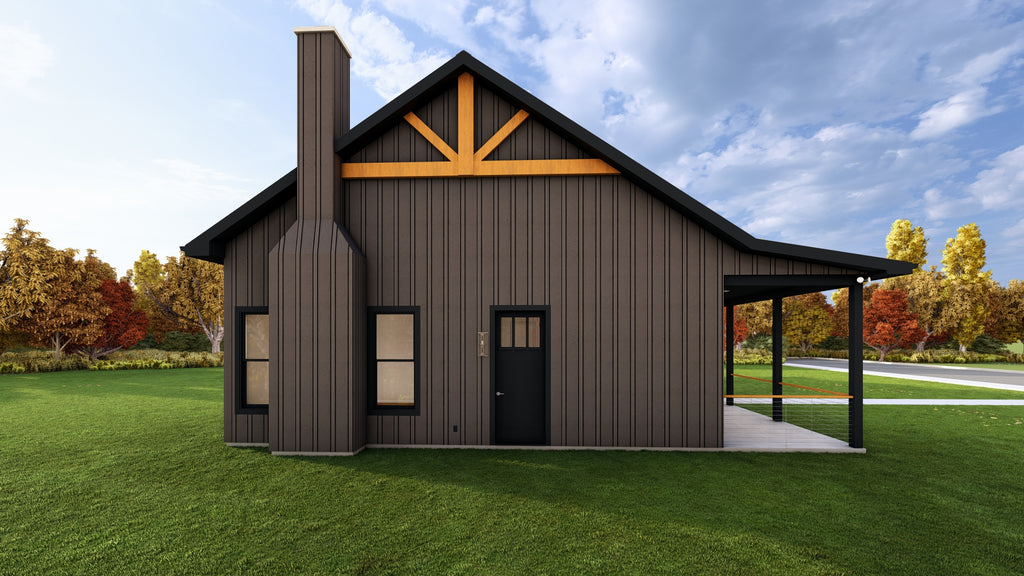

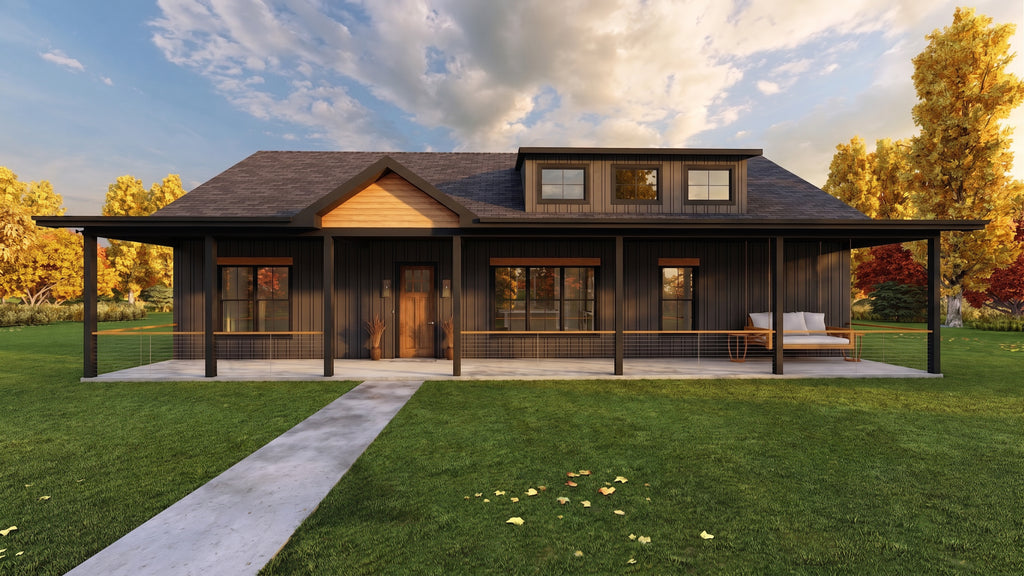

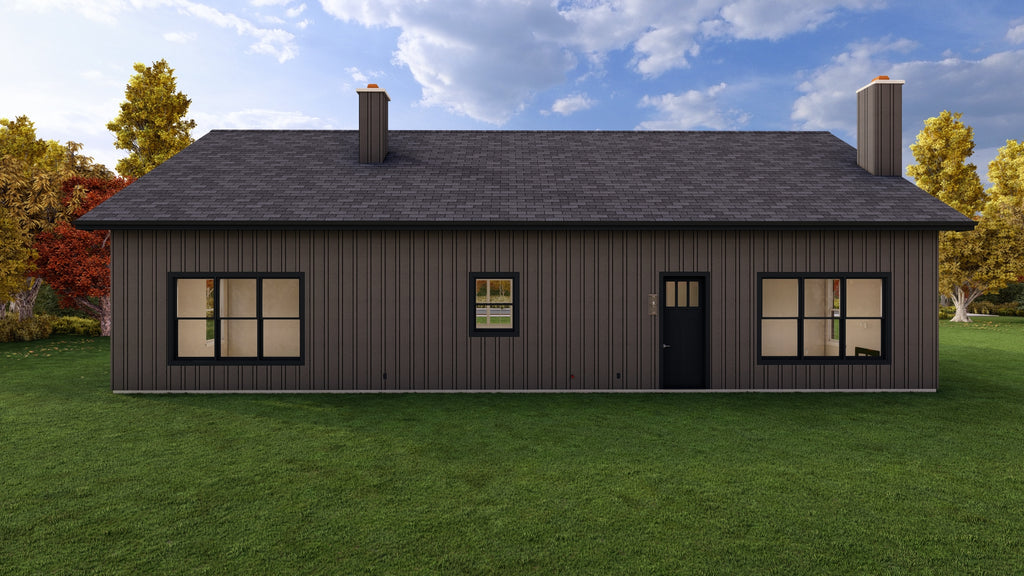

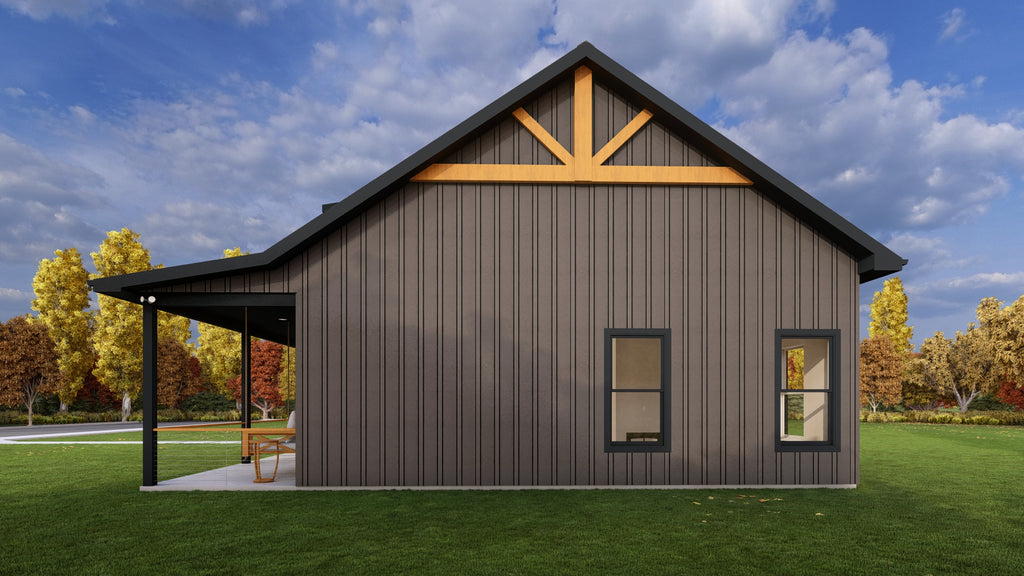

- Exterior Rendering
- Foundation + Plumbing Layout Plan
- Dimensioned Floor Plan
- Exterior Elevations
- Roof Plan
- Door + Window Schedule
- Lighting and Power Plan
- Cross Section + Wall Section
- Typical Details
The set does not include:
- Architectural or Engineering Stamp - handled locally if required
- Structural Foundation or Framing Plans
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings showing the actual plumbing pipe sizes and locations- your subcontractors handle this
- Energy calculations
- Site Plan (Add-on available)
- Cabinet Elevations (Add-on available)
Frequently asked questions
Can I request modifications to a house plan?
Yes! Click the Request Modifications button under the Plan Description and fill out the form. We will provide a quote for the additional charge for the changes.
Are any purchases final sale?
Yes, because these are electronic files we are not able to offer refunds on plans that have been sent. If you have issues with an order please send us an email.
When will I get my order?
You will receive your drawing set via email set within 1 business day after purchase.
Do you offer printed sets?
While we don't offer printed sets, we can offer recommendations on where to get full size drawings sets printed. We also recommend checking with your builder for access to printed sets.
