Plan No. 4003
5 Bedroom | 3.5 Bath | 4,219 SF Home
Additional Features:
$3,250.00
Shipping calculated at checkout.
Plan Description
5 Bedroom | 3.5 Bath | 4,219 SF Home
This impressive two-story ranch style home offers 4,219 square feet of generous, well-appointed living space featuring 5 bedrooms, 3.5 bathrooms, and a 3-car garage, designed for families who want room to grow, space to gather, and the comfort of knowing every need has been thoughtfully considered. Covered porches welcome you with classic ranch charm, while a dramatic free-standing fireplace makes a bold and beautiful statement in the main living area. A private guest suite provides a comfortable and self-contained retreat for visitors, and a sunny dining nook creates the perfect casual spot for everyday meals and relaxed morning routines. An elegant butler's pantry elevates the kitchen and entertaining experience, while a dedicated office keeps work and home life neatly separated. A built-in safe room rounds out a plan that delivers not just exceptional style and space, but the peace of mind every family deserves.
REQUEST MODIFICATION
We will send you a quote based on your requests!
COST TO BUILD ESTIMATE
Get A Cost Estimate For This Plan
This estimate is for general budgeting only and should not be used for financing or contractor bids. Texas House Plans assumes no responsibility for estimate accuracy.
We will send you a quote based on your requests!
BEDROOMS: 5
BATHROOMS: 3.5
GARAGE SPACES: 3
HEATED SQ FT: 4219 SF
TOTAL COVERED SF:
WIDTH: 92'-11"
DEPTH: 94'-2"
STORIES: 2
FOUNDATION:
EXTERIOR WALLS:
ROOF PITCH:
CEILING HEIGHT 1ST FLOOR:
CEILING HEIGHT 2ND FLOOR:
WHAT YOU WILL RECIEVE:
Within 1 -2 business days of purchasing your plan, you will be sent a digital Construction Drawing set in PDF format. The drawing set includes:
Shows boundaries of the foundation and dimensions of plumbing fixtures located in the foundation. This is not a structurally engineered foundation plan, but can be used by an engineer to create one.
Floor plan showing dimensions and annotations for all interior and exterior walls, door and windows, and key elements.

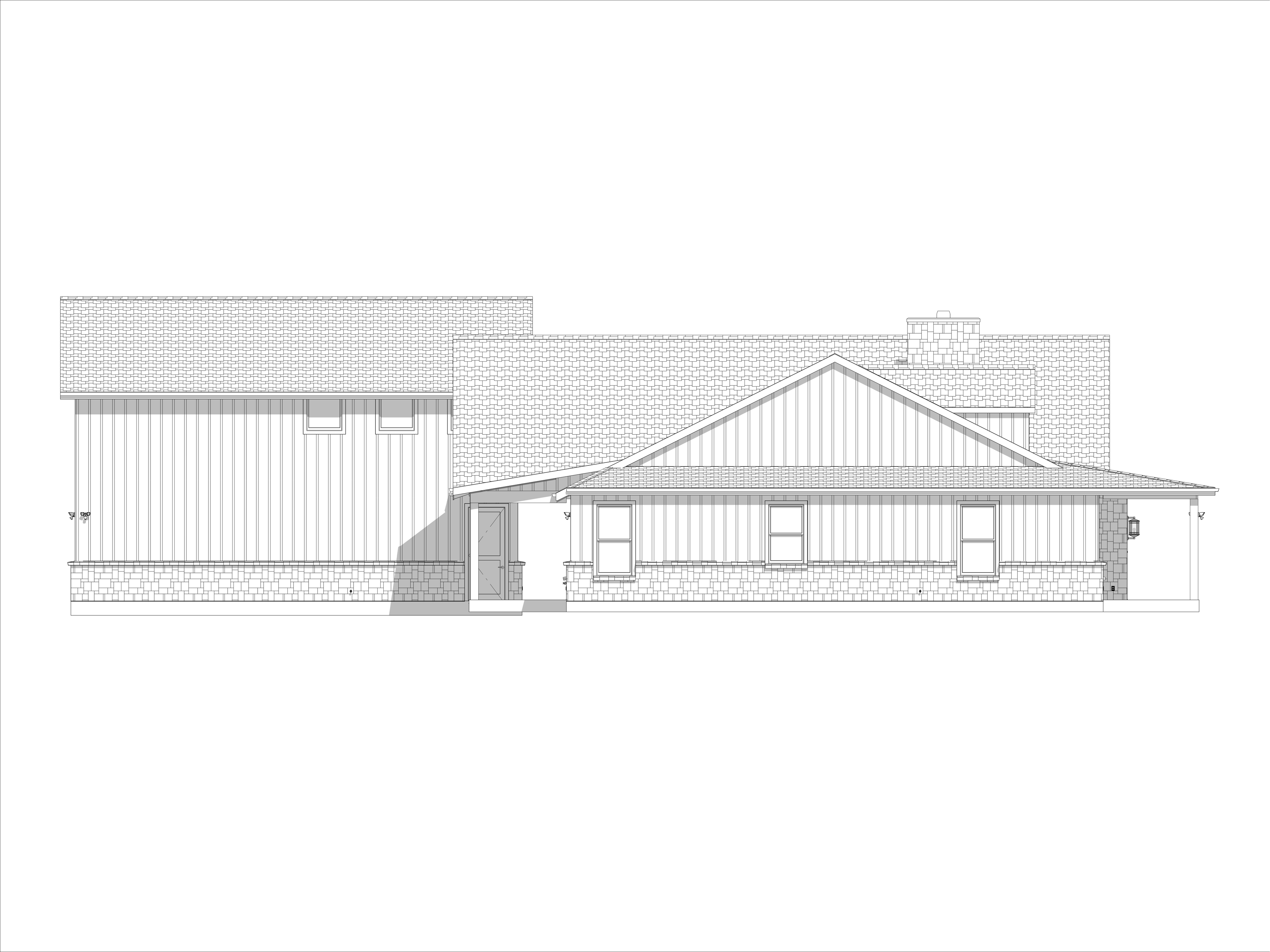

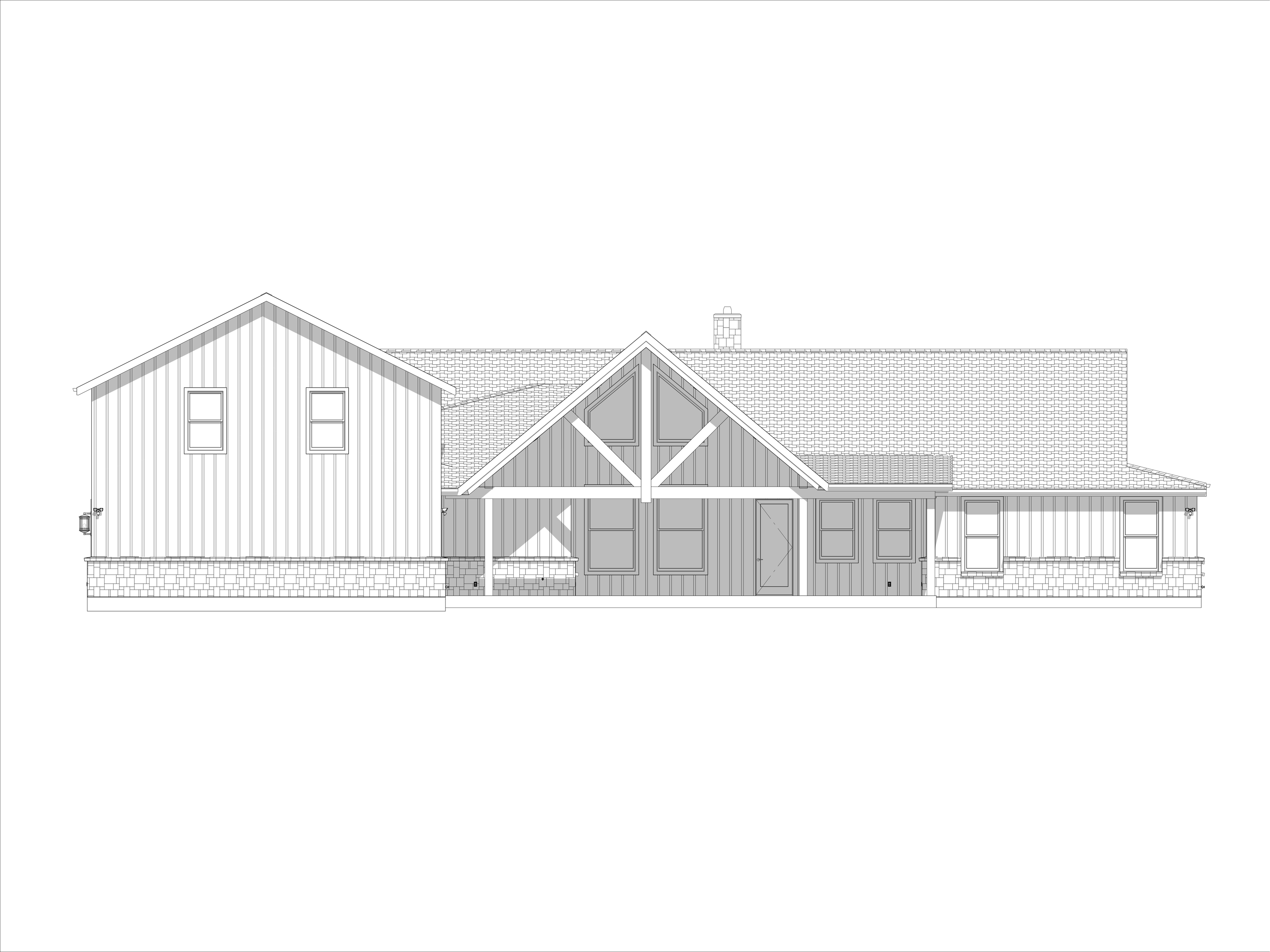

2D view of the homes exterior showing the design, finish materials, critical height relationships, door and window placements, and roof lines.
Top-down view of the roof, including ridge, valley, and hip locations, roof pitches, overhangs, and gutter and downspout locations.
Shows a section cut through the house and typical wall assembly. Shows details on how the wall is constructed and critical building heights.
Shows the location of light fixtures, switches, and outlets in the home.
This set includes:
- Exterior Rendering
- Foundation + Plumbing Layout Plan
- Dimensioned Floor Plan

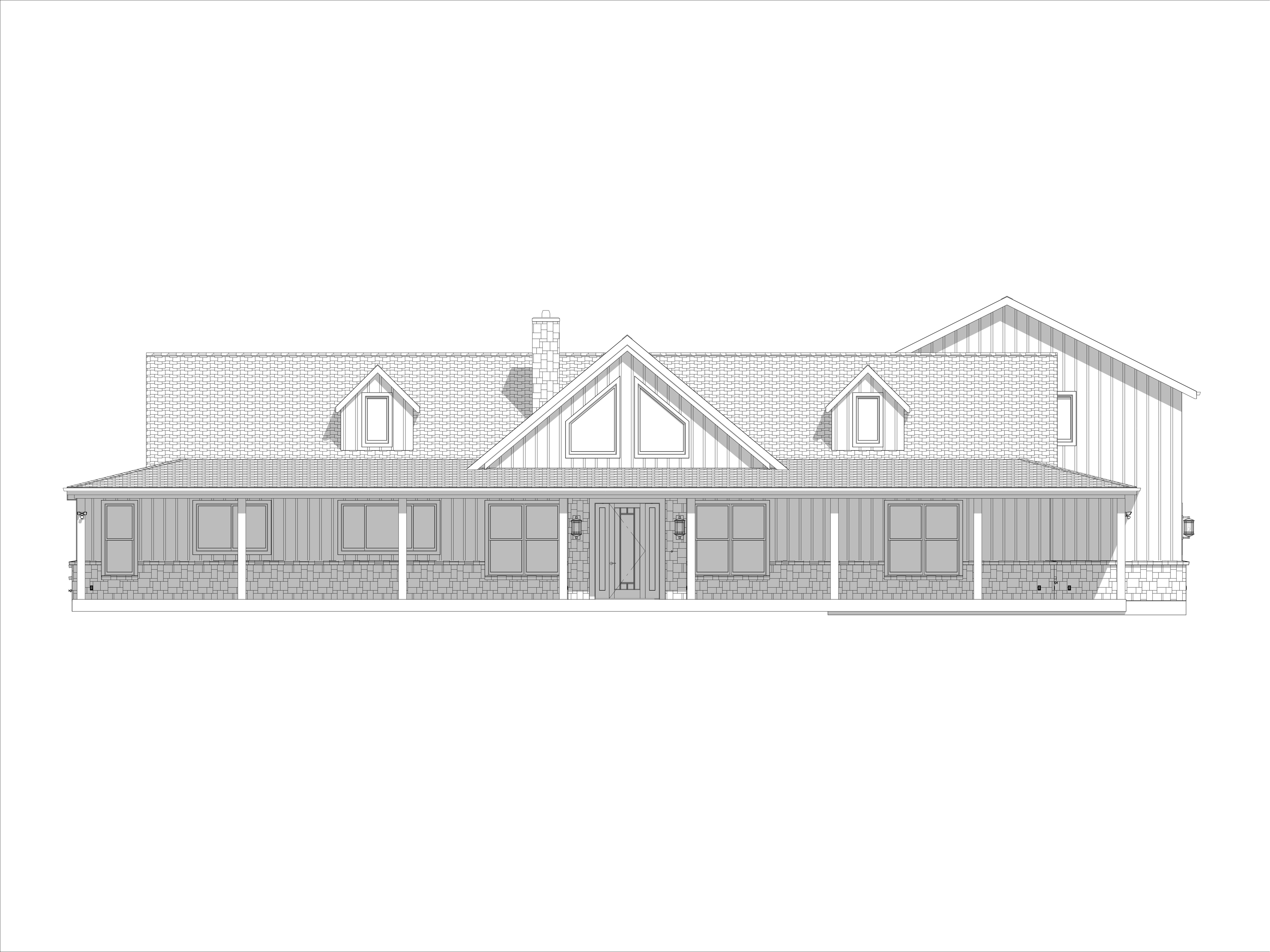

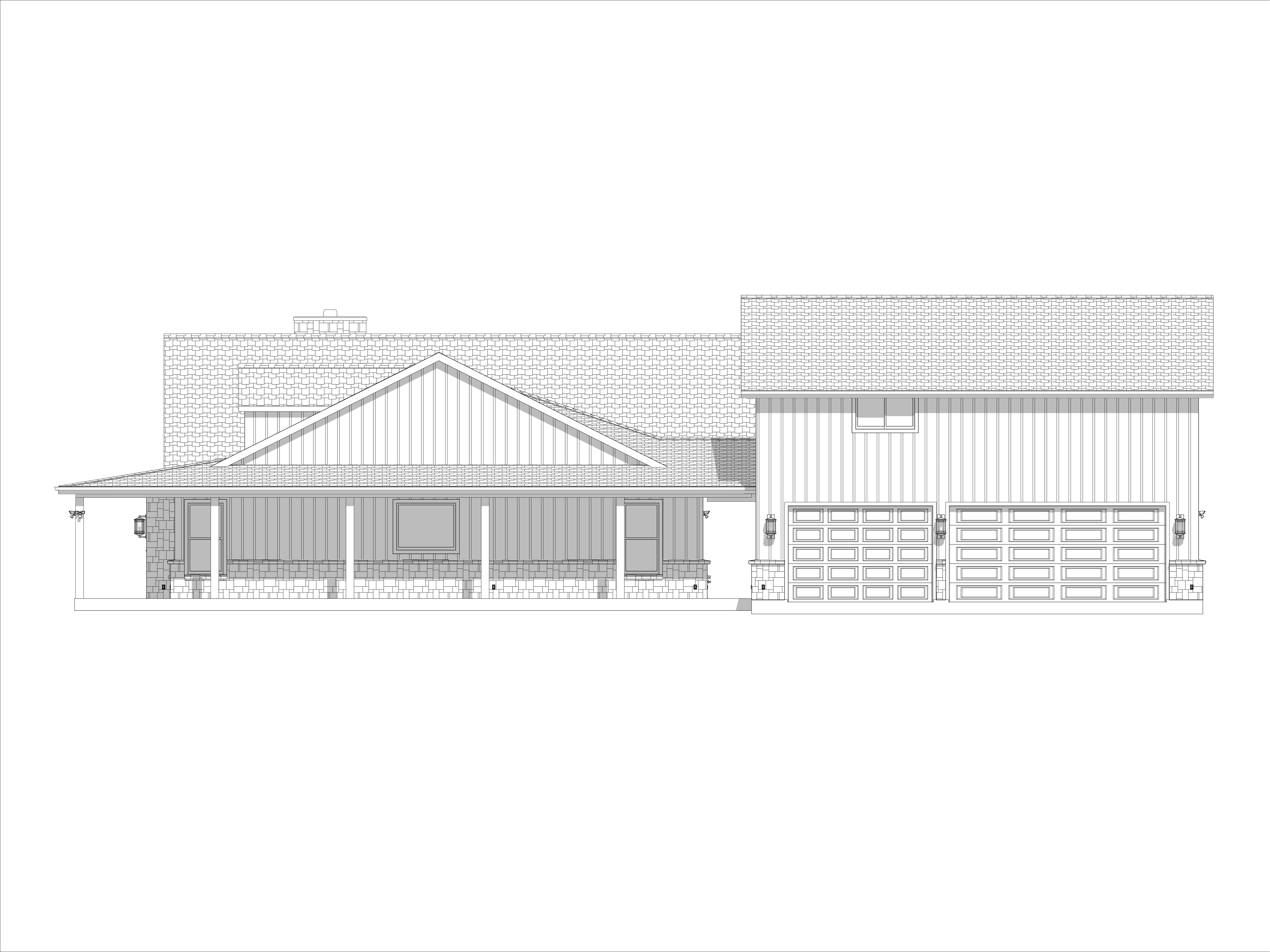

- Exterior Elevations
- Roof Plan
- Door + Window Schedule
- Lighting and Power Plan
- Cross Section + Wall Section
- Typical Details
The set does not include:
- Architectural or Engineering Stamp - handled locally if required
- Structural Foundation or Framing Plans
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings showing the actual plumbing pipe sizes and locations- your subcontractors handle this
- Energy calculations
- Site Plan (Add-on available)
- Cabinet Elevations (Add-on available)
