Plan No. 3014
$2,650.00
Skip to product information
Plan No. 3014
4 Bedroom | 3 Bath | 3,830 SF Home
Additional Features:
$2,650.00
Shipping calculated at checkout.
Plan Description
4 Bedroom | 3 Bath | 3,830 SF Home
This breathtaking one-story Texas Hill Country style home offers 3,304 square feet of stunning, well-appointed living space featuring 3 bedrooms, 3 bathrooms, and a 3-car garage, designed for those who appreciate the rugged beauty and relaxed elegance that only Hill Country living can deliver. Covered porches, a crackling outdoor fireplace, and a fully equipped outdoor kitchen transform the exterior into a premier entertaining destination perfectly suited for warm Texas evenings under the stars. A gracious formal entry sets an impressive tone from the moment guests arrive, while a private sitting area in the primary suite creates a personal retreat within a retreat. A dedicated office, elegant butler's pantry, and generous walk-in closets bring thoughtful functionality to every corner of the home, and a built-in safe room provides the peace of mind every family deserves. Rooted in the spirit of the Texas landscape and refined in every detail, this Hill Country plan is as exceptional as the region that inspired it.
REQUEST MODIFICATION
We will send you a quote based on your requests!
COST TO BUILD ESTIMATE
Get A Cost Estimate For This Plan
This estimate is for general budgeting only and should not be used for financing or contractor bids. Texas House Plans assumes no responsibility for estimate accuracy.
We will send you a quote based on your requests!
BEDROOMS: 4
BATHROOMS: 3.0
GARAGE SPACES: 0
HEATED SQ FT: 3,830 SF
TOTAL COVERED SF:
WIDTH: 84'-0"
DEPTH: 65'-3"
STORIES: 1
FOUNDATION:
EXTERIOR WALLS:
ROOF PITCH:
CEILING HEIGHT 1ST FLOOR:
CEILING HEIGHT 2ND FLOOR:
WHAT YOU WILL RECIEVE:
Within 1 -2 business days of purchasing your plan, you will be sent a digital Construction Drawing set in PDF format. The drawing set includes:
Shows boundaries of the foundation and dimensions of plumbing fixtures located in the foundation. This is not a structurally engineered foundation plan, but can be used by an engineer to create one.
Floor plan showing dimensions and annotations for all interior and exterior walls, door and windows, and key elements.

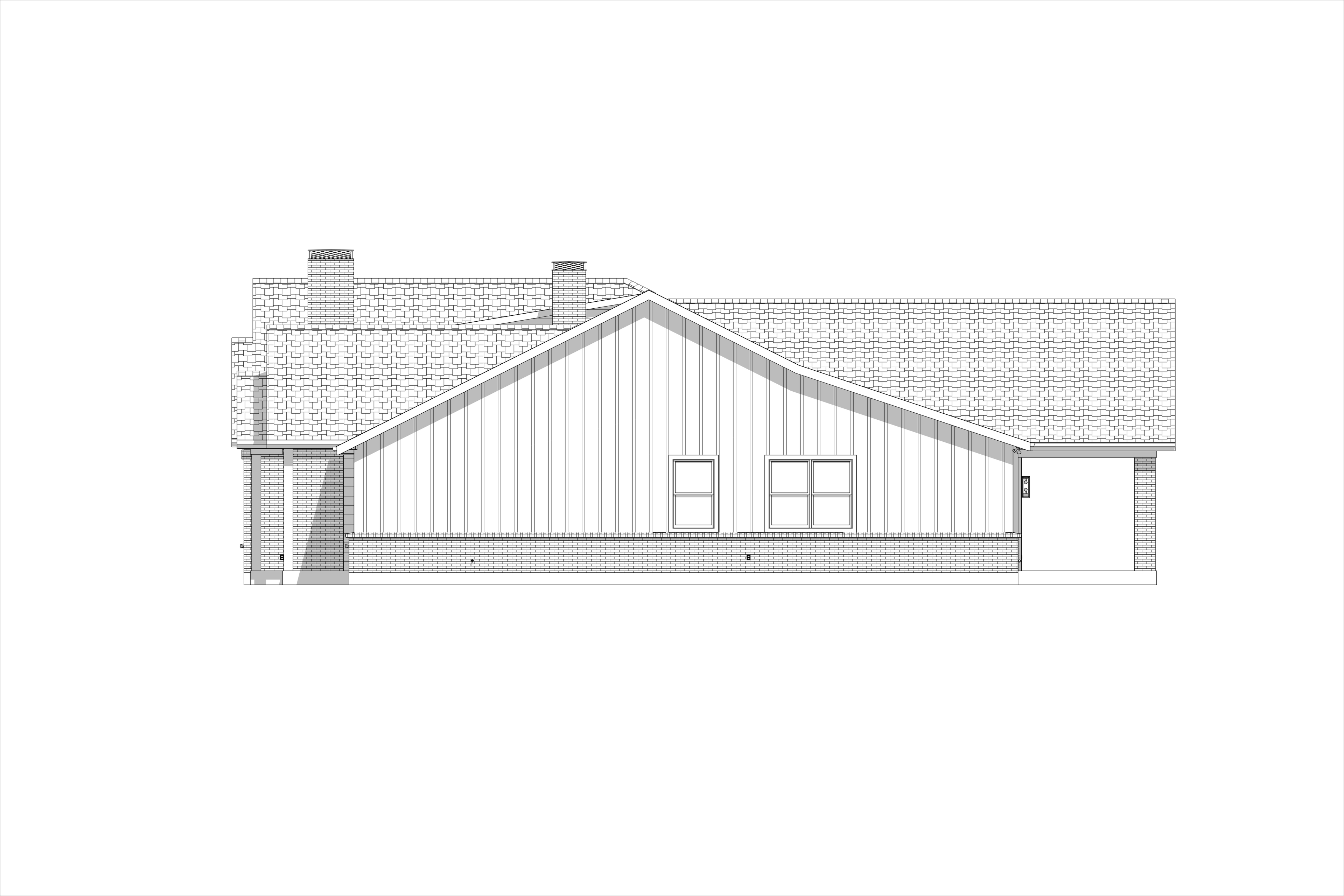

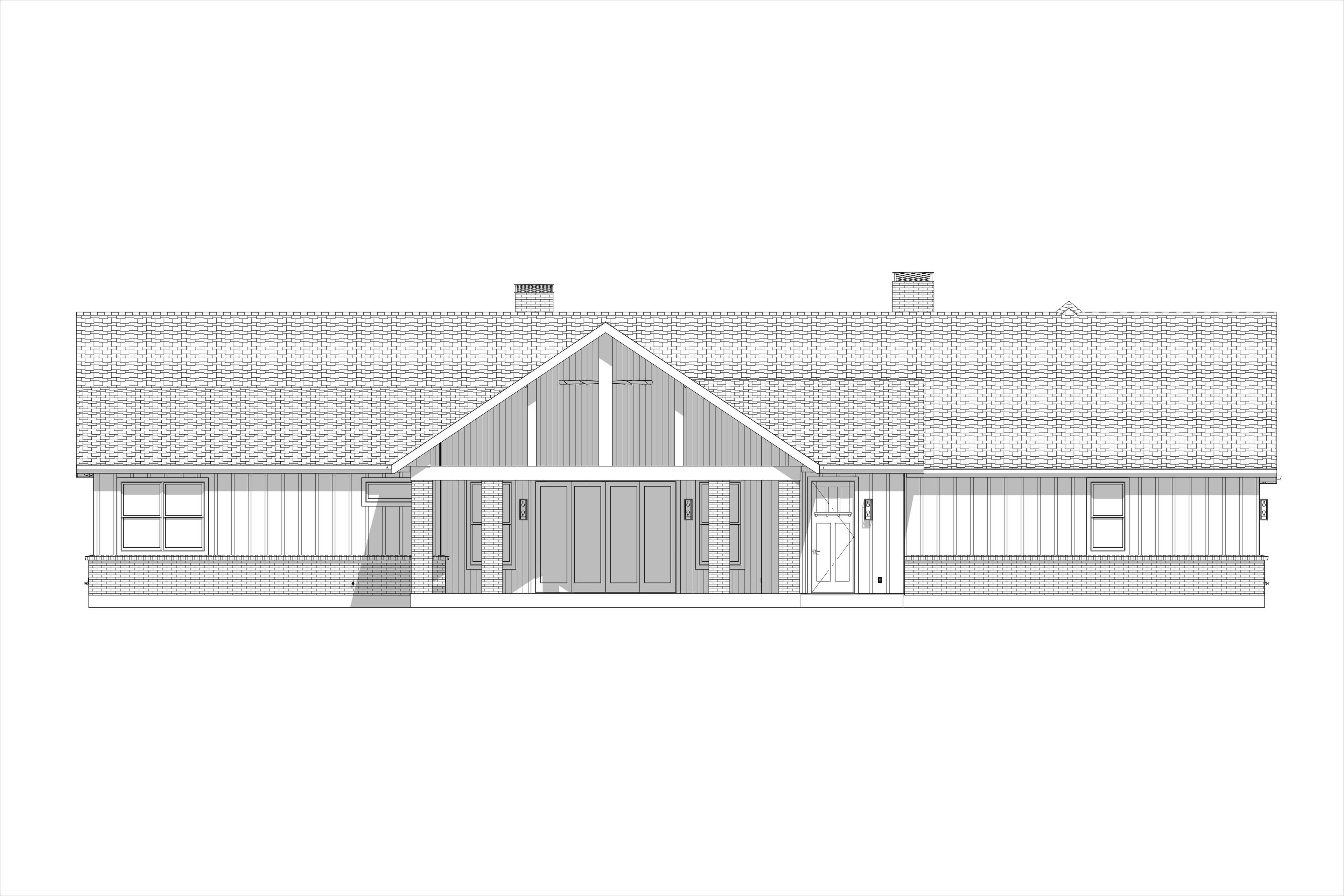

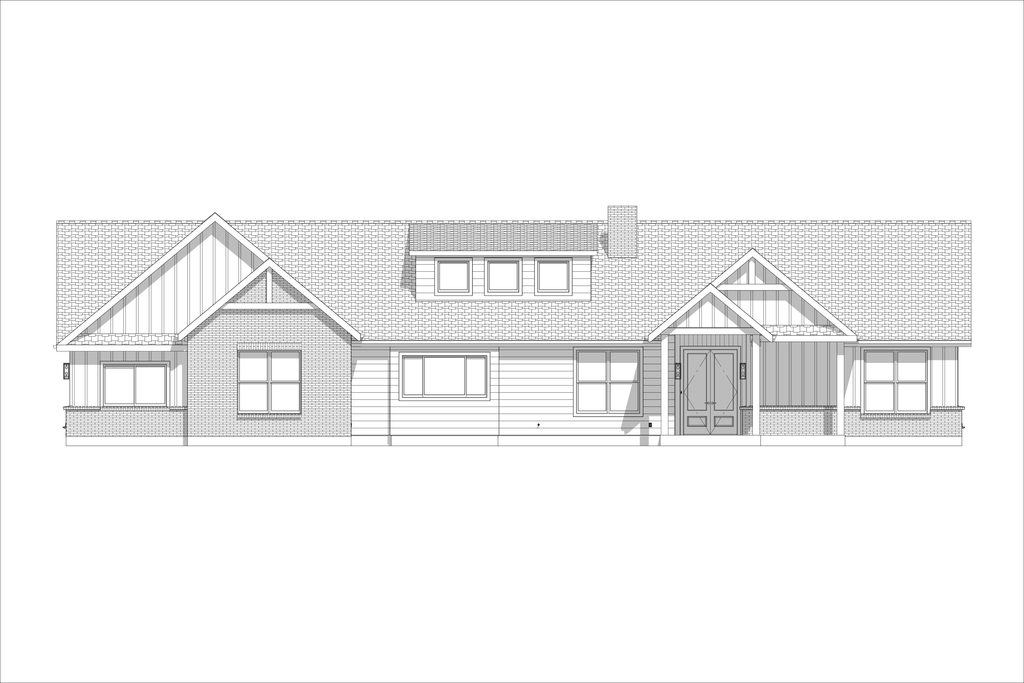

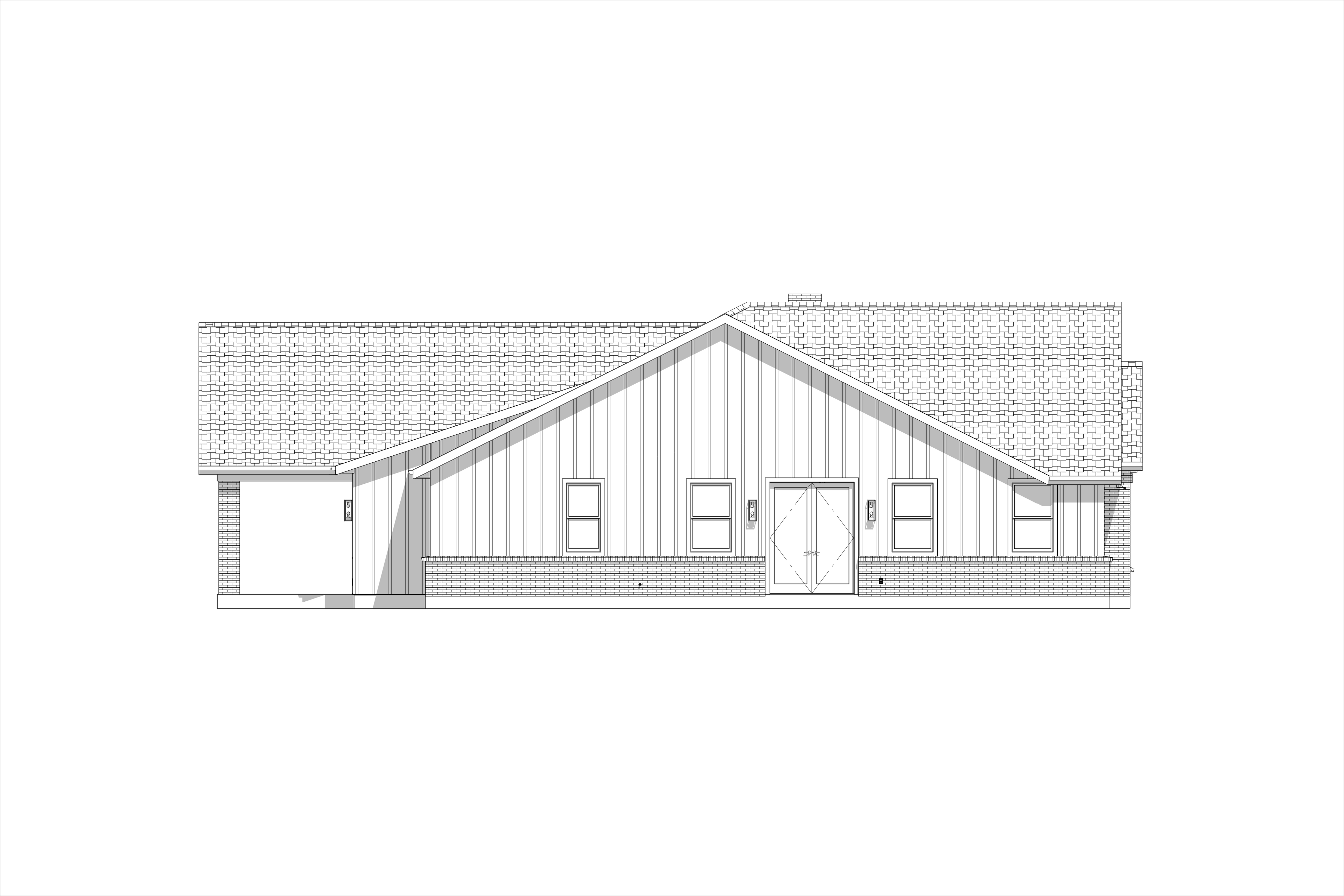

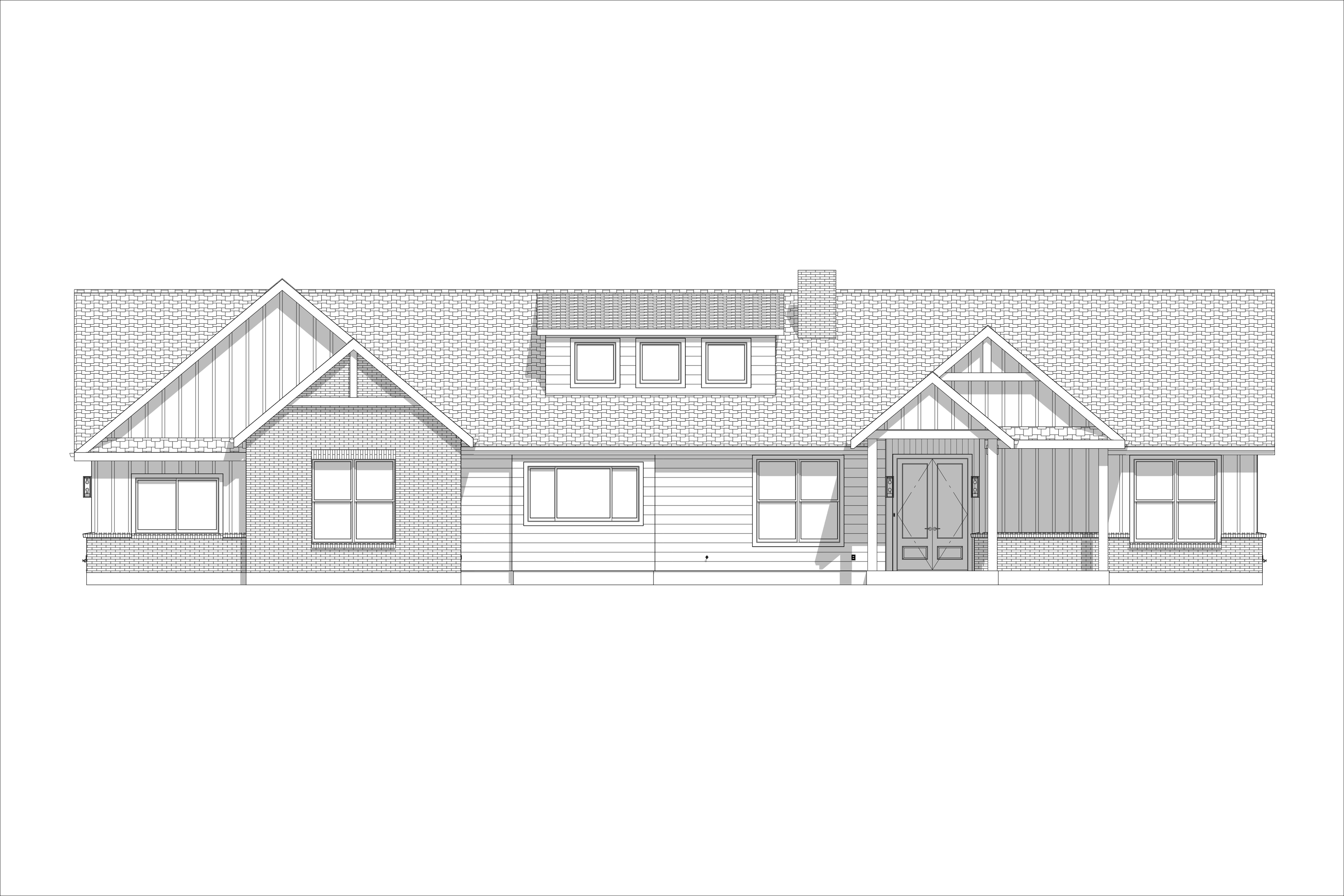

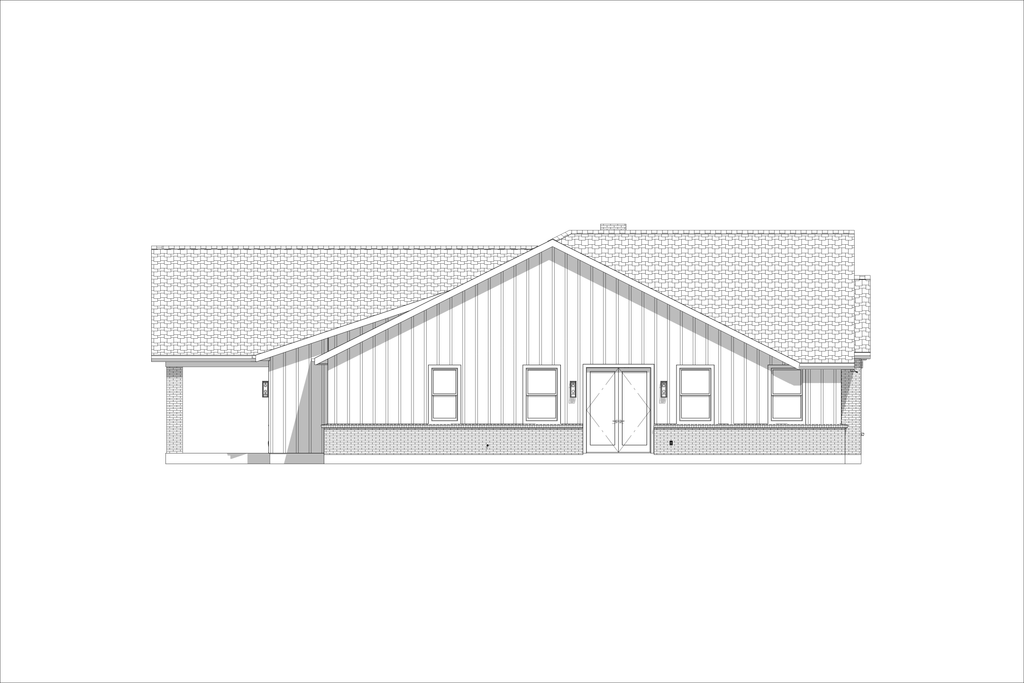

2D view of the homes exterior showing the design, finish materials, critical height relationships, door and window placements, and roof lines.
Top-down view of the roof, including ridge, valley, and hip locations, roof pitches, overhangs, and gutter and downspout locations.
Shows a section cut through the house and typical wall assembly. Shows details on how the wall is constructed and critical building heights.
Shows the location of light fixtures, switches, and outlets in the home.
This set includes:

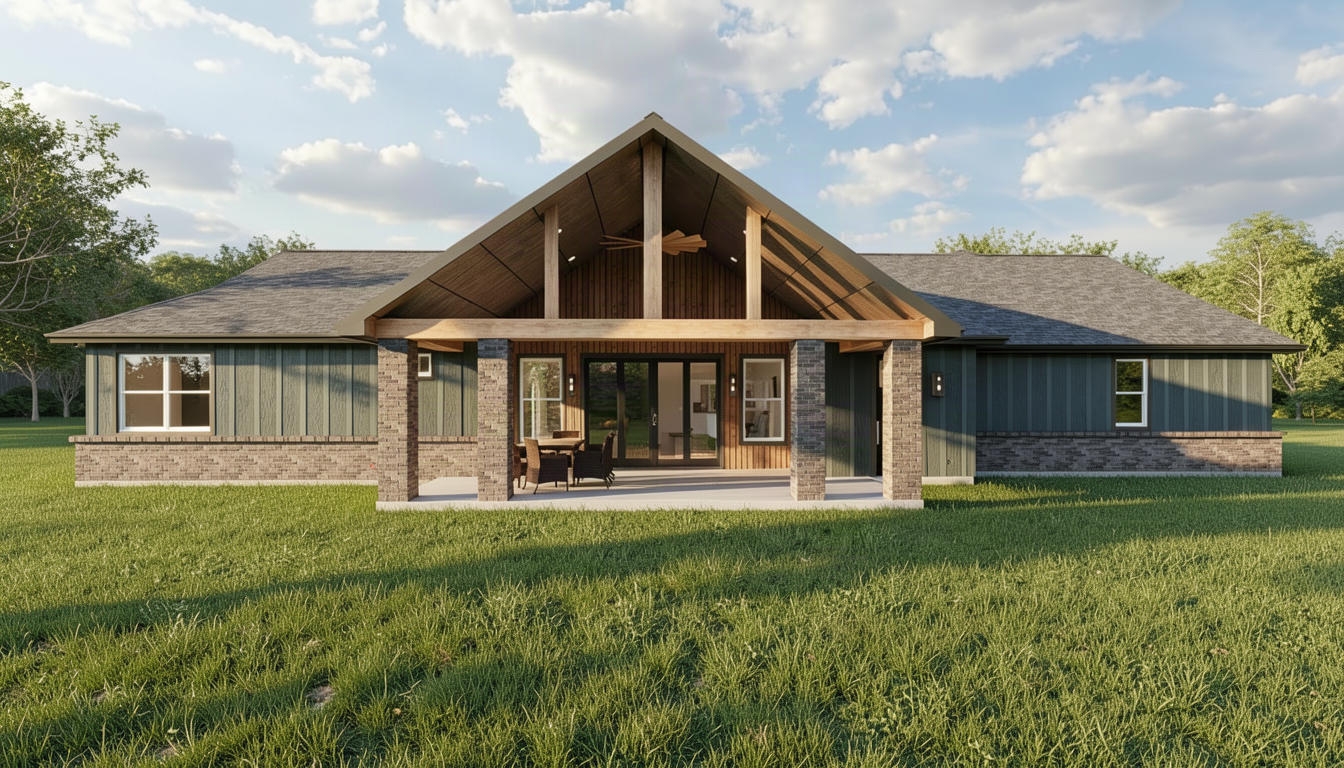

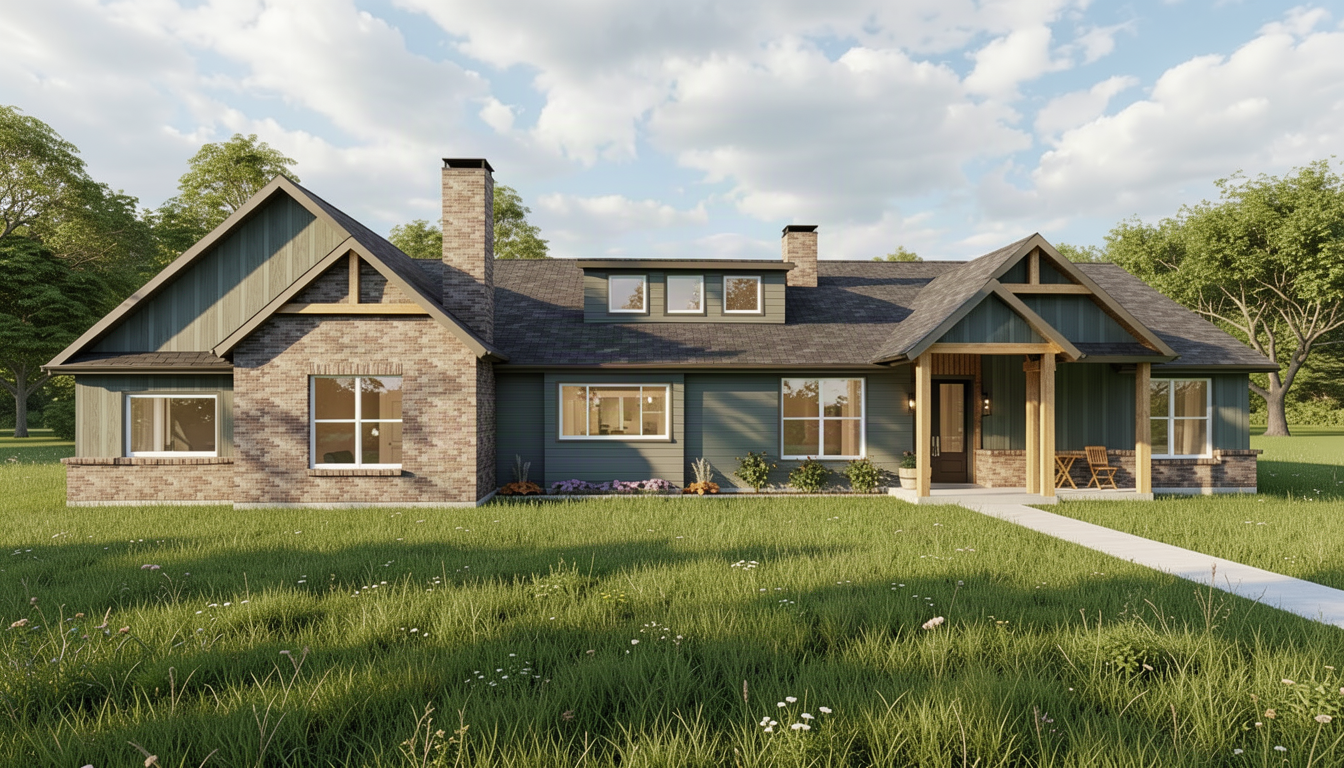

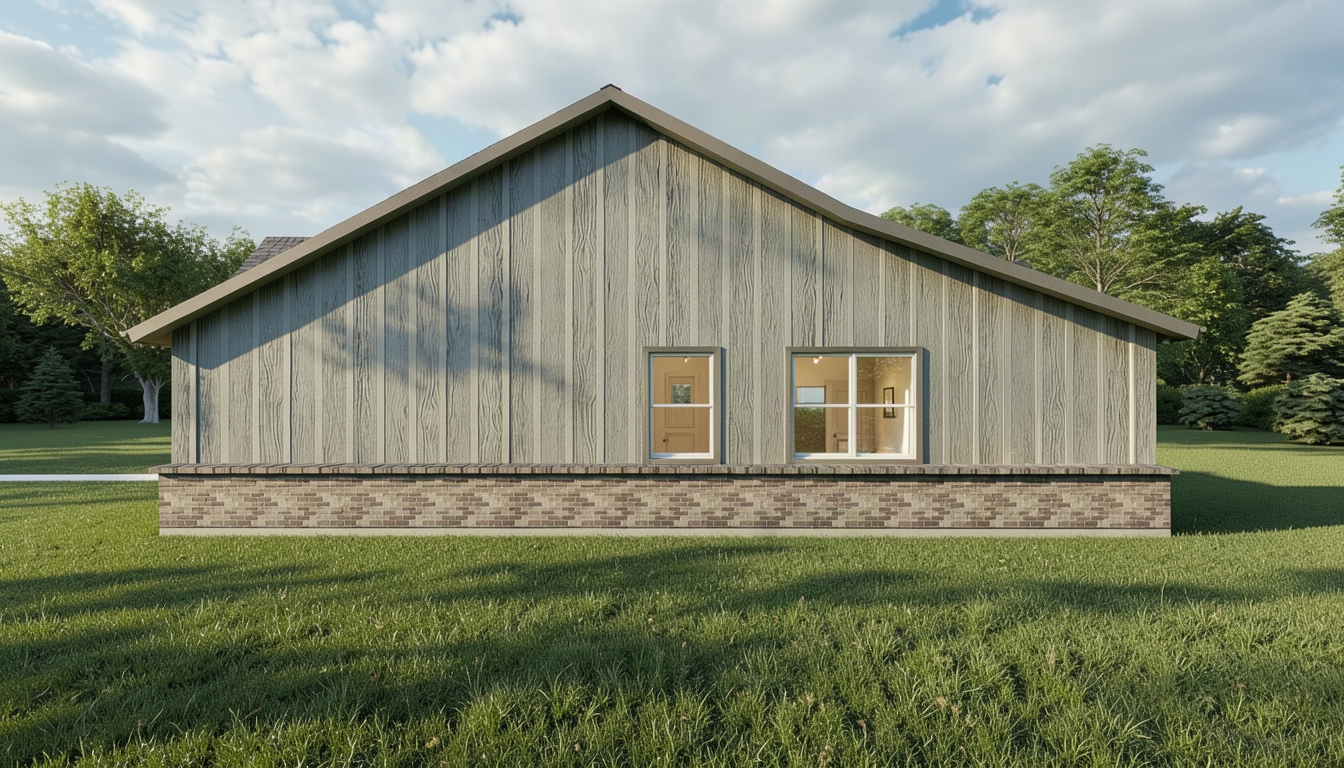

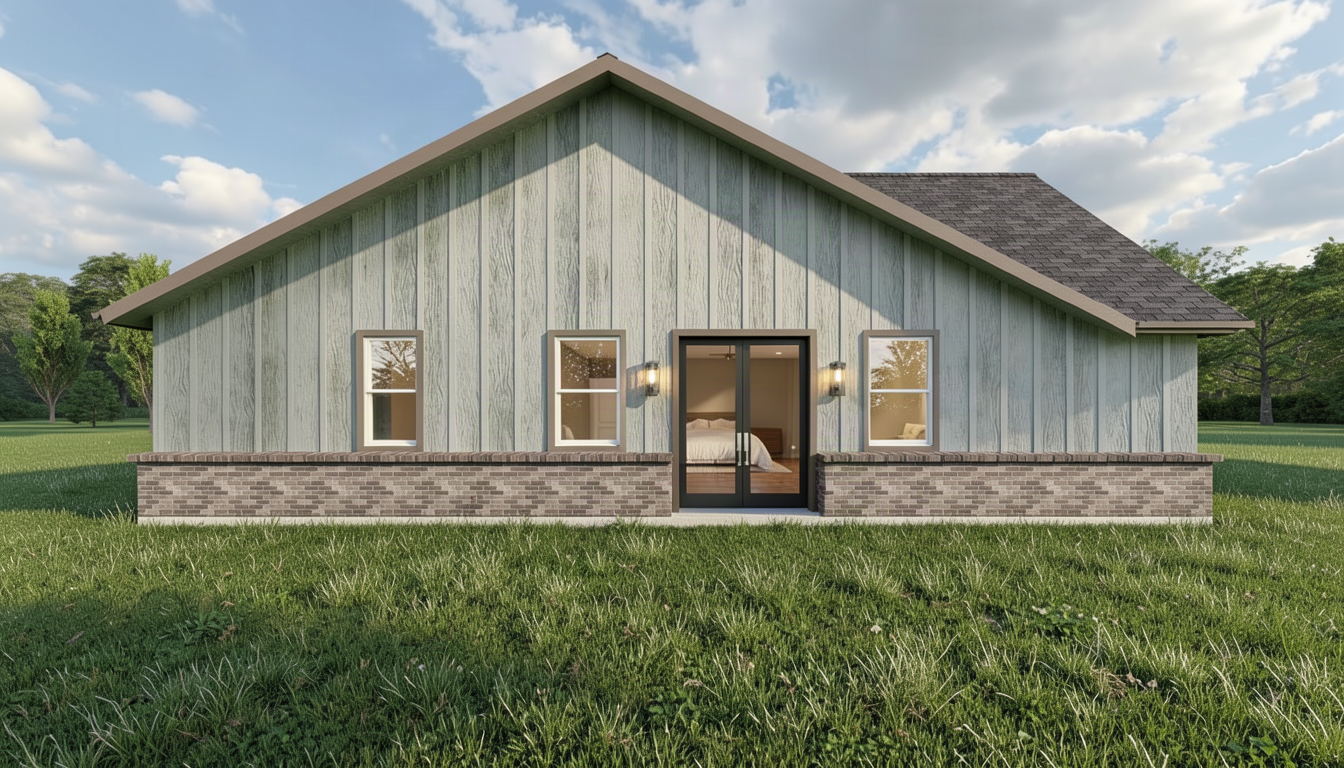

- Exterior Rendering
- Foundation + Plumbing Layout Plan
- Dimensioned Floor Plan
- Exterior Elevations
- Roof Plan
- Door + Window Schedule
- Lighting and Power Plan
- Cross Section + Wall Section
- Typical Details
The set does not include:
- Architectural or Engineering Stamp - handled locally if required
- Structural Foundation or Framing Plans
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings showing the actual plumbing pipe sizes and locations- your subcontractors handle this
- Energy calculations
- Site Plan (Add-on available)
- Cabinet Elevations (Add-on available)
Frequently asked questions
Can I request modifications to a house plan?
Yes! Click the Request Modifications button under the Plan Description and fill out the form. We will provide a quote for the additional charge for the changes.
Are any purchases final sale?
Yes, because these are electronic files we are not able to offer refunds on plans that have been sent. If you have issues with an order please send us an email.
When will I get my order?
You will receive your drawing set via email set within 1 business day after purchase.
Do you offer printed sets?
While we don't offer printed sets, we can offer recommendations on where to get full size drawings sets printed. We also recommend checking with your builder for access to printed sets.
