Plan No. 3011
4 Bedroom | 4.5 Bath | 3,560 SF Home
Additional Features:
$2,250.00
Shipping calculated at checkout.
Plan Description
4 Bedroom | 4.5 Bath | 3,560 SF Home

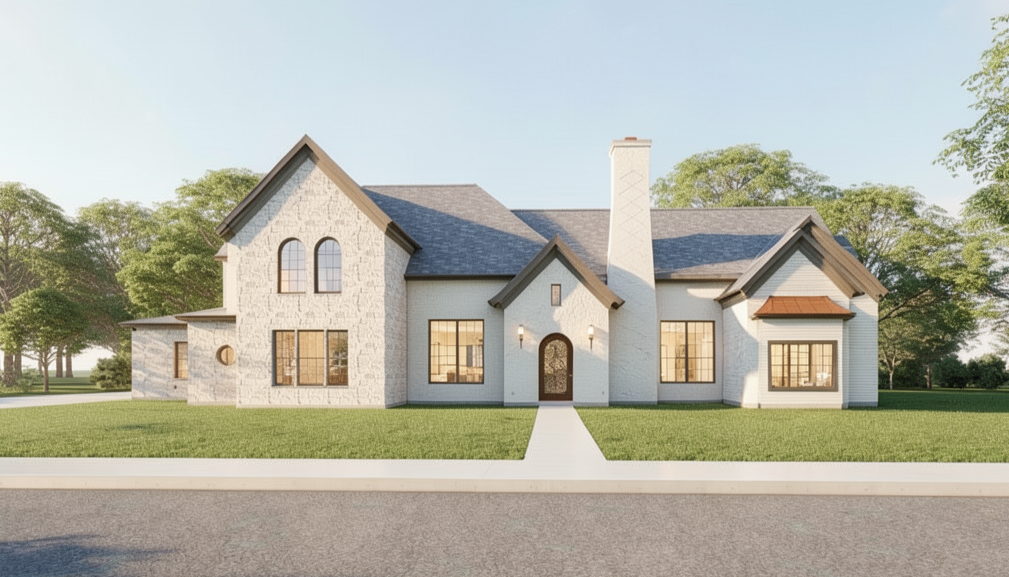

Arched windows, a stone facade and a copper-roofed bay give this European style home its presence, with 3,560 square feet, 4 bedrooms, 4.5 bathrooms, two stories and a 3-car garage. A formal entry under a 13-foot ceiling leads to a formal dining room with a coffee bar and an office nook, then into a vaulted living room with a fireplace. The kitchen gathers everyone at a kitchen island with bar seating, backed by a walk-in pantry with an appliance garage. From the garage, a mudroom with lockers sits beside a laundry room with access to the outside. The primary suite adds a second fireplace, a coffered ceiling, a built-in safe room and a closet with a closet island, with walk-in closets for every bedroom. Upstairs, two bedrooms share the floor with a bonus room and additional storage. Covered porches with an outdoor kitchen grill station carry the day outside, so this European home feels refined for guests and relaxed for everyday family life.
BEDROOMS: 4
BATHROOMS: 4.5
GARAGE SPACES: 3
HEATED SQ FT: 3,560
TOTAL COVERED SF: 5,282 SF
WIDTH: 103'-3"
DEPTH: 63'-9"
STORIES: 2
FOUNDATION: Slab on Grade
EXTERIOR WALLS: 2x6
ROOF PITCH: 12/12, 10/12, 8/12, 4/12, 3/12
CEILING HEIGHT 1ST FLOOR: 10'-0"
CEILING HEIGHT 2ND FLOOR: 9'-0"
Designed in Texas by Texas House Plans, an architecture studio with 20+ years experience and 2,000+ projects. Questions before you buy? Call (888) 702-2555.
What is in your drawing set
Your plan arrives by email as a PDF construction drawing set:

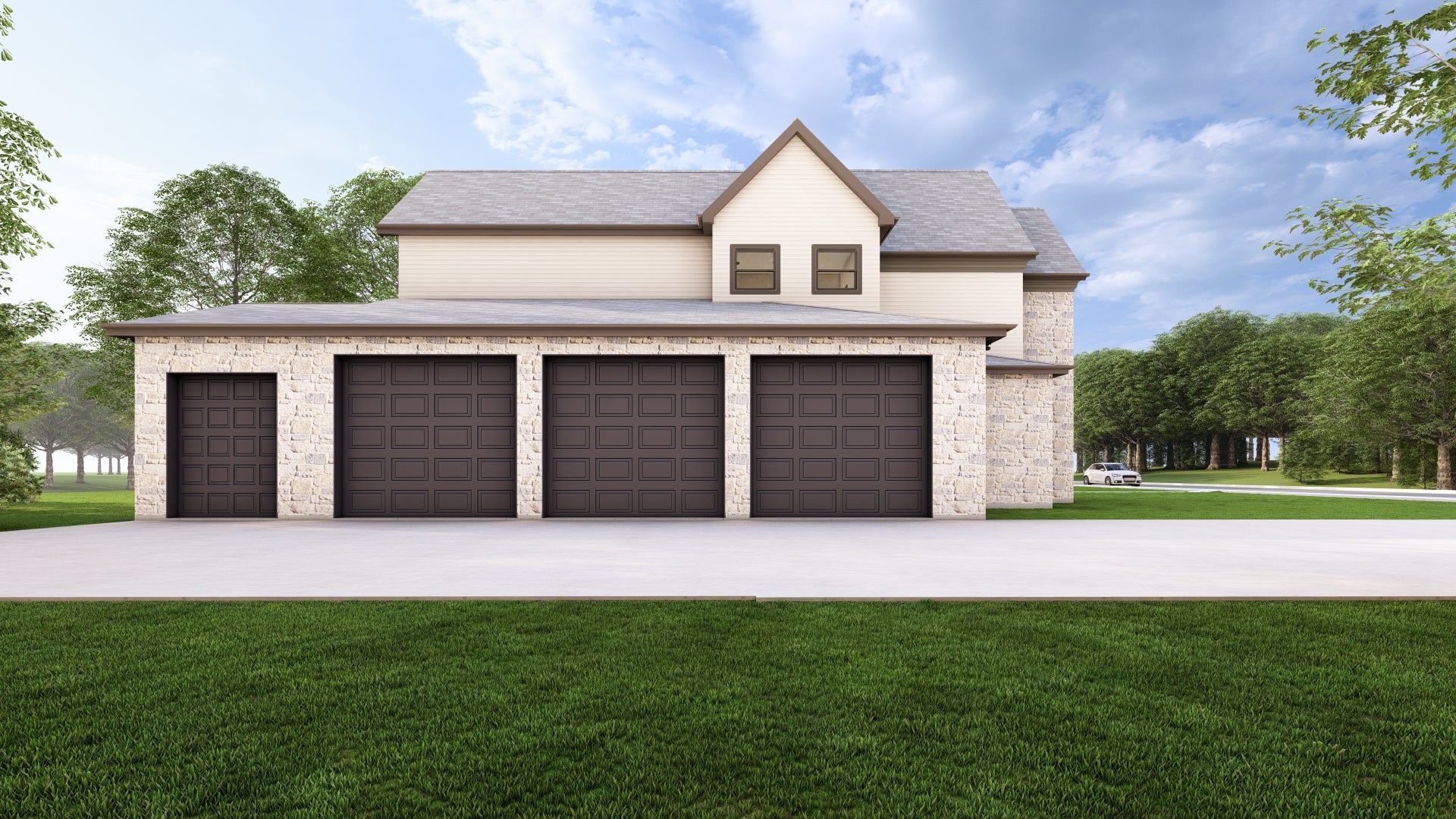

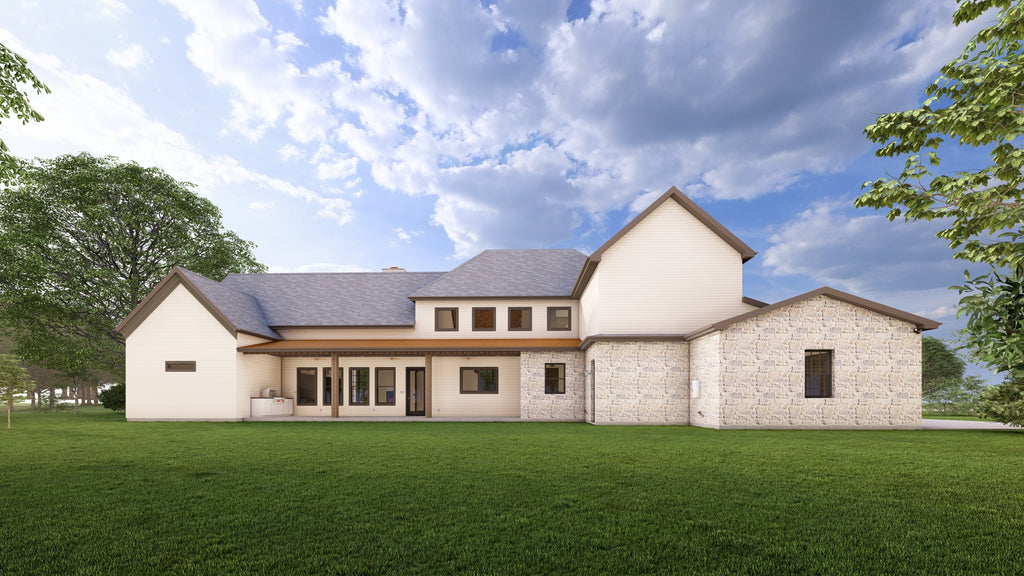

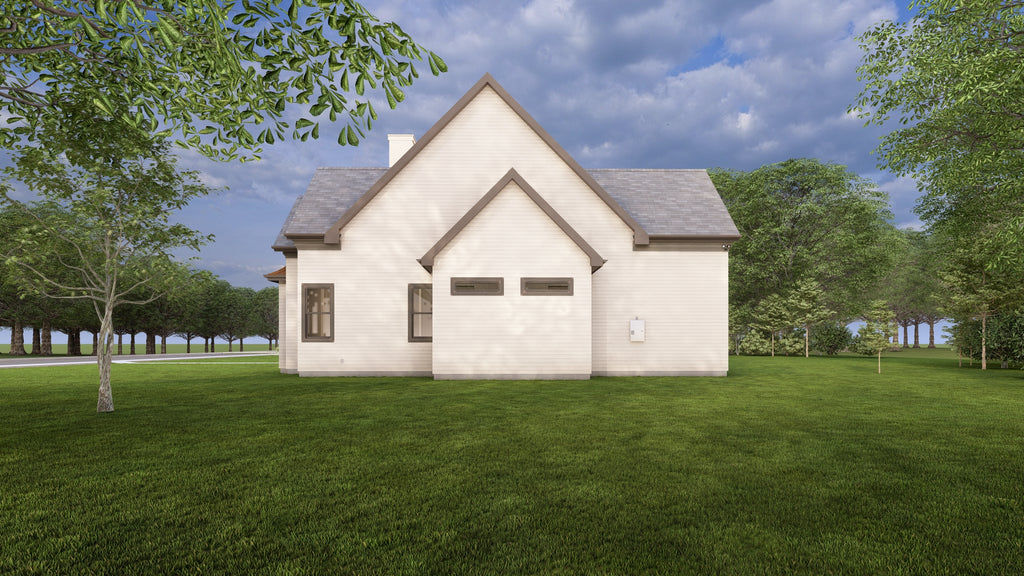

- Exterior Rendering
- Foundation and Plumbing Layout Plan
- Dimensioned Floor Plan

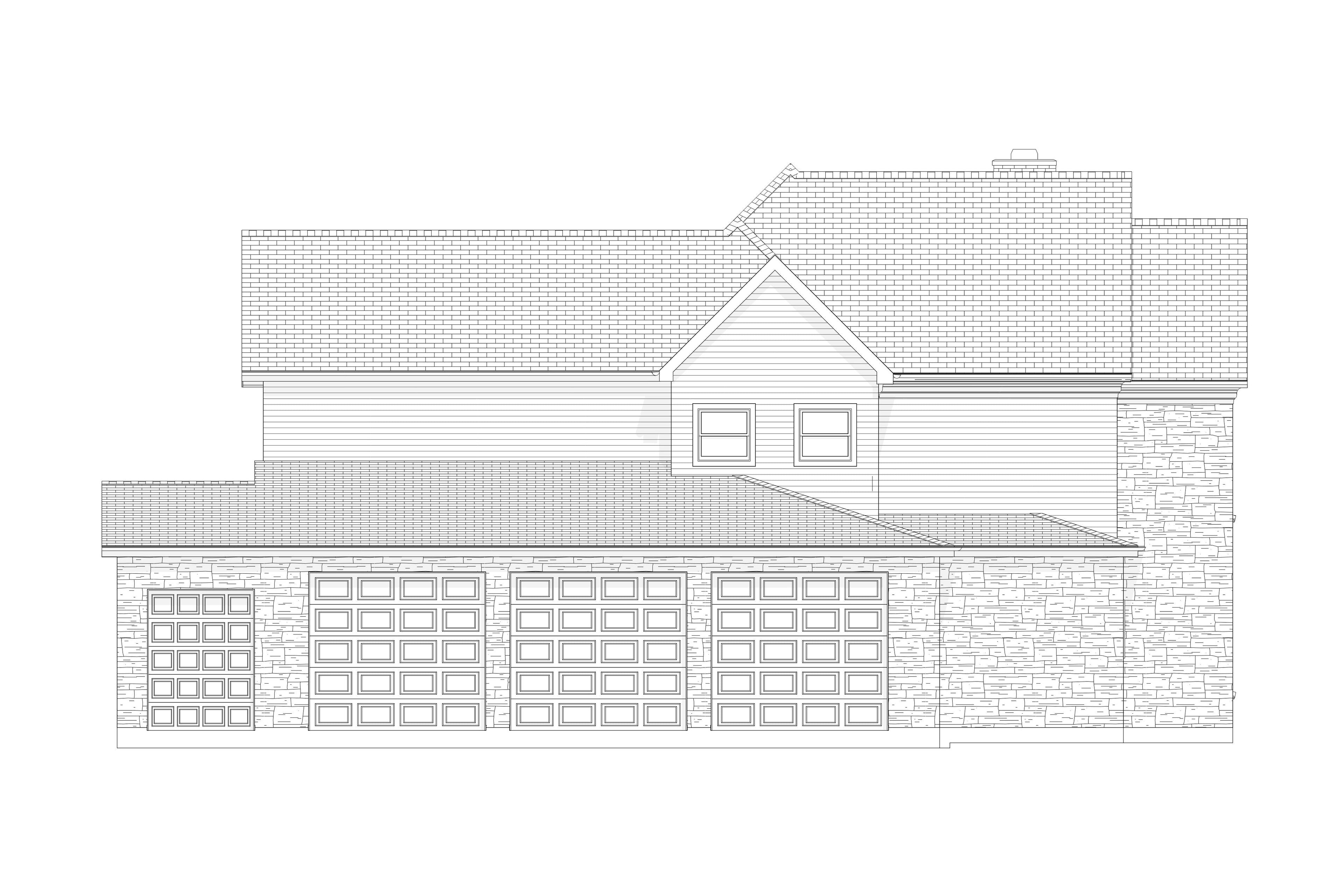

- Exterior Elevations
- Roof Plan
- Door and Window schedule
- Lighting and Power Plan
- Cross Section and Wall section
- Typical Details
When will I get my order?
Orders arrive via email within 1 to 2 business days. You will be able to download your file directly from the email.
REQUEST CUSTOMIZATION
We will send you a quote based on your requests!
COST TO BUILD ESTIMATE
Get A Cost Estimate For This Plan
This estimate is for general budgeting only and should not be used for financing or contractor bids. Texas House Plans assumes no responsibility for estimate accuracy.
We will send you a quote based on your requests!
LICENSE USE + REFUND POLICY
Each purchase is a license to build the home one time. Building it again? Ask us about rebuild pricing. Build-ready plans are digital files, so all sales are final.
WHAT YOU WILL RECIEVE:
Within 1 -2 business days of purchasing your plan, you will be sent a digital Construction Drawing set in PDF format. The drawing set includes:
Shows boundaries of the foundation and dimensions of plumbing fixtures located in the foundation. This is not a structurally engineered foundation plan, but can be used by an engineer to create one.
Floor plan showing dimensions and annotations for all interior and exterior walls, door and windows, and key elements.

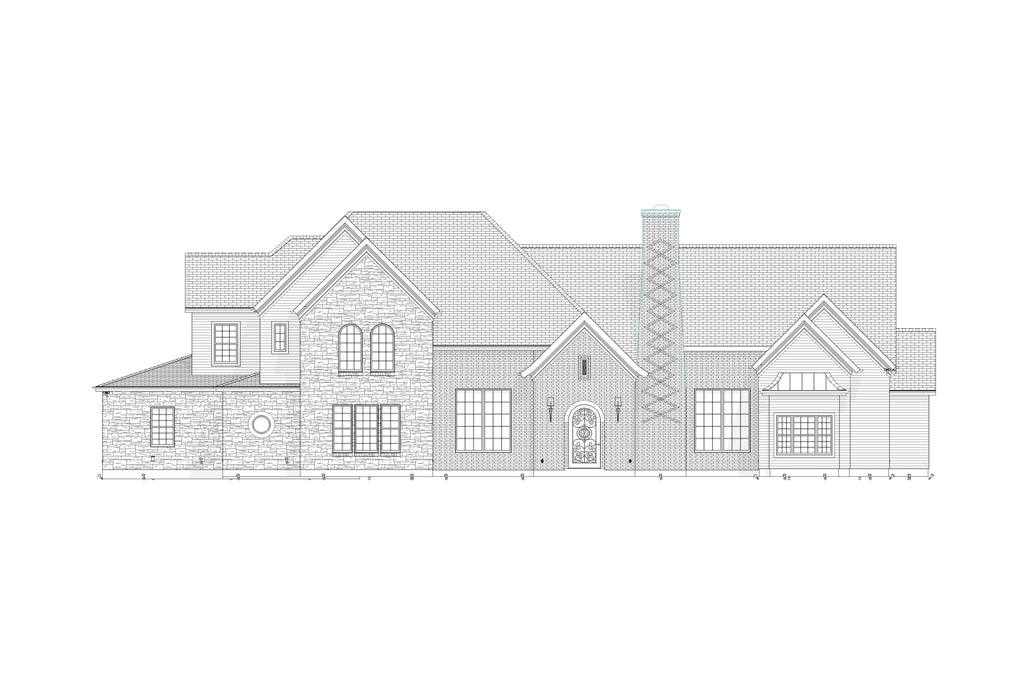

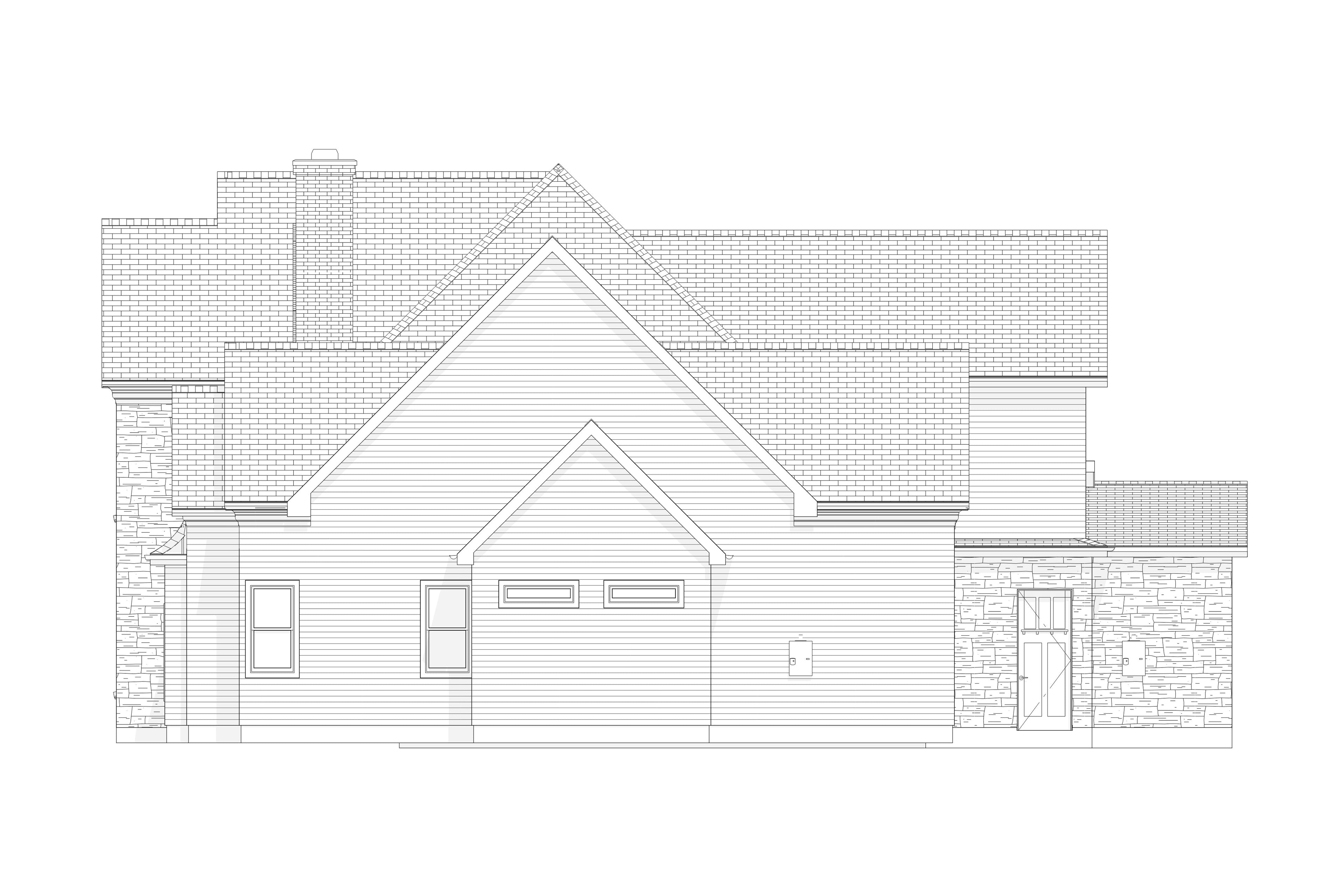

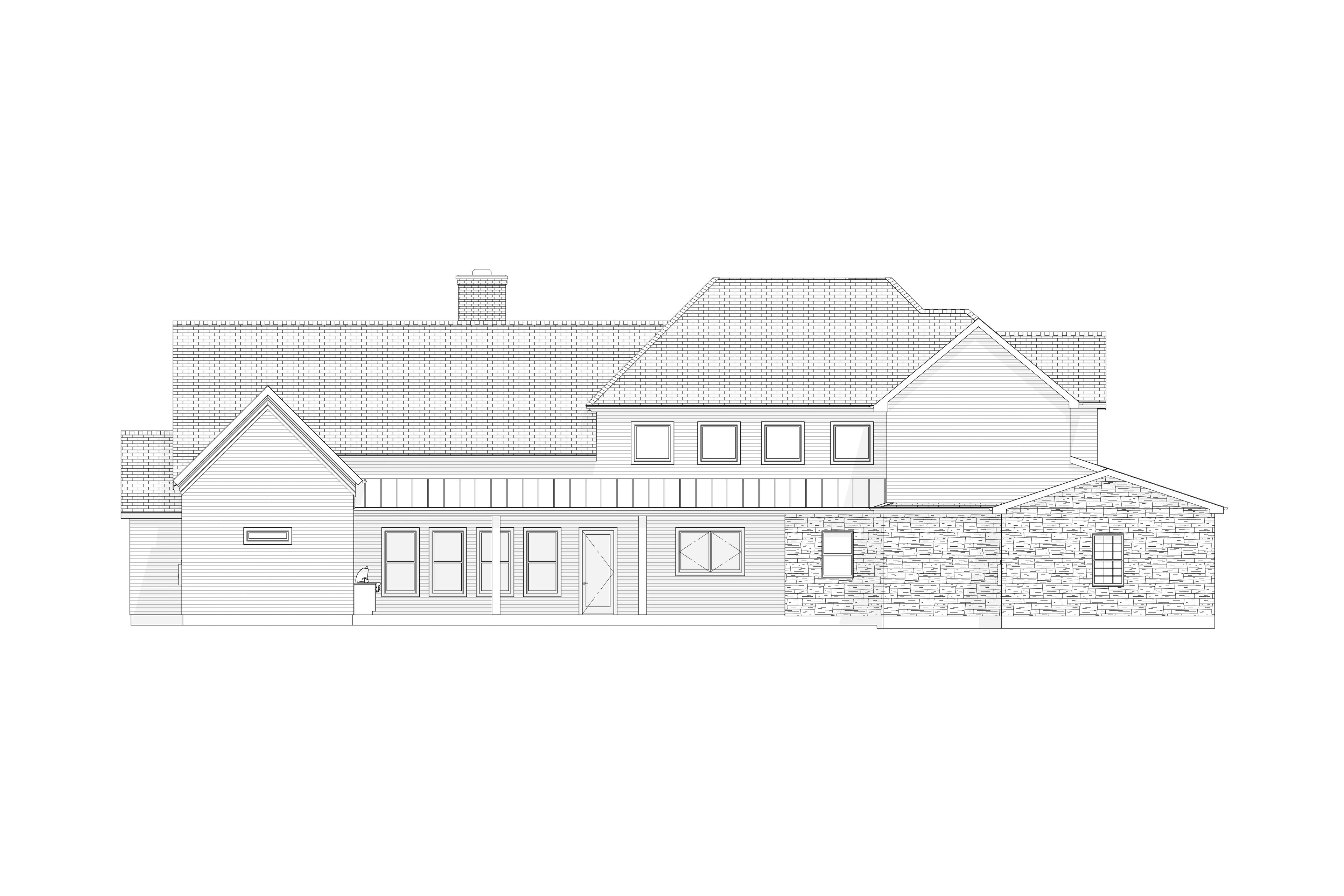

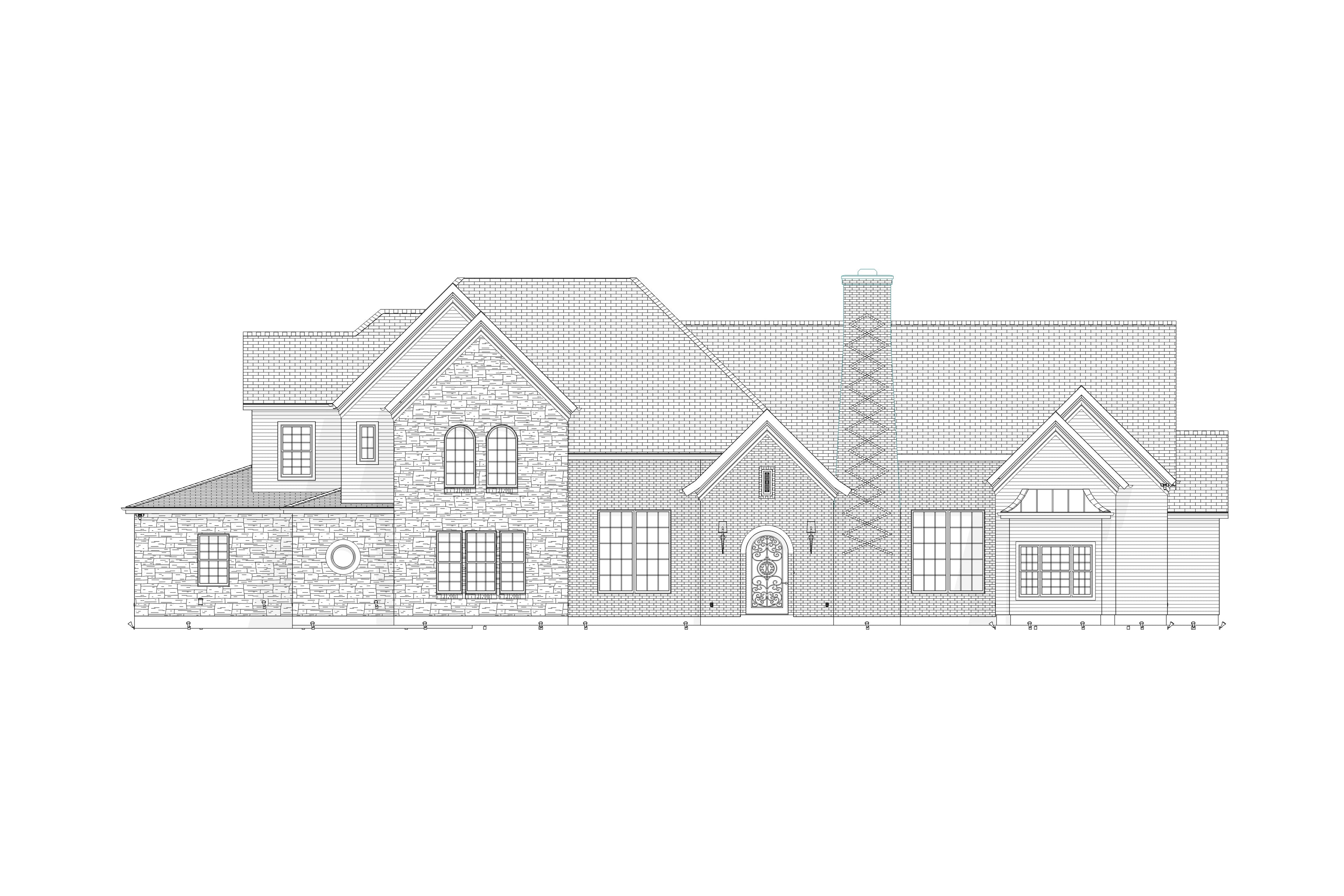

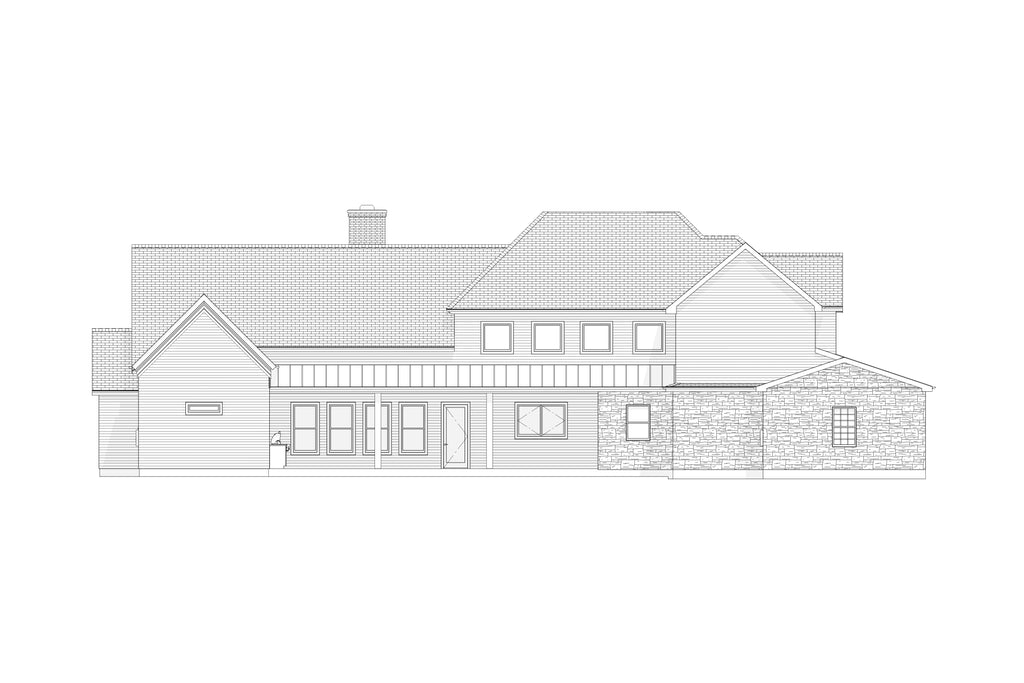

2D view of the homes exterior showing the design, finish materials, critical height relationships, door and window placements, and roof lines.
Top-down view of the roof, including ridge, valley, and hip locations, roof pitches, overhangs, and gutter and downspout locations.
Shows a section cut through the house and typical wall assembly. Shows details on how the wall is constructed and critical building heights.
Shows the location of light fixtures, switches, and outlets in the home.
This set includes:
- Exterior Rendering
- Foundation + Plumbing Layout Plan
- Dimensioned Floor Plan
- Exterior Elevations
- Roof Plan
- Door + Window Schedule
- Lighting and Power Plan
- Cross Section + Wall Section
- Typical Details
The set does not include:
- Architectural or Engineering Stamp - handled locally if required
- Structural Foundation or Framing Plans
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings showing the actual plumbing pipe sizes and locations- your subcontractors handle this
- Energy calculations
- Site Plan (Add-on available)
- Cabinet Elevations (Add-on available)
Frequently asked questions
Can I request changes to a house plan?
Yes! Click the Request Customization button under the Plan Description and fill out the form. We will provide a quote for the additional charge for the changes.
Are any purchases final sale?
Yes, because these are electronic files we are not able to offer refunds on plans that have been sent. If you have issues with an order please send us an email.
When will I get my order?
You will receive your drawing set via email set within 1 -2 business day after purchase.
Do you offer printed sets?
While we don't offer printed sets, we can offer recommendations on where to get full size drawings sets printed. We also recommend checking with your builder for access to printed sets.
