Plan No. 2028
4 Bedroom | 3 Bath | 2,435 SF Home
Additional Features:
$1,625.00
Shipping calculated at checkout.
Plan Description
4 Bedroom | 3 Bath | 2,435 SF Home
This stunning one-story Craftsman style Barndo home offers 2,435 square feet of warm, beautifully crafted living space featuring 4 bedrooms, 3 bathrooms, and a 2-car garage, with the added versatility to be built as a barndominium. Covered porches welcome you with that signature Craftsman character, while a cozy indoor fireplace anchors the main living area with warmth and charm. The outdoor living spaces are nothing short of spectacular, with a dramatic outdoor fireplace and a fully equipped outdoor kitchen that transform the exterior into a premier entertaining destination perfect for any occasion. Inside, a stunning kitchen island serves as the heart of the home, and a practical mudroom keeps daily life organized and the interior looking its best. A versatile bonus room adds the extra flexibility every household needs, whether for a media room, playroom, or home office. Distinctive, functional, and designed for those who love to live both inside and out, this Craftsman plan delivers on every level.
Â
REQUEST MODIFICATION
We will send you a quote based on your requests!
COST TO BUILD ESTIMATE
Get A Cost Estimate For This Plan
This estimate is for general budgeting only and should not be used for financing or contractor bids. Texas House Plans assumes no responsibility for estimate accuracy.
We will send you a quote based on your requests!
BEDROOMS: 4
BATHROOMS: 3.0
GARAGE SPACES: 2
HEATED SQ FT: 2,435 SF
TOTAL COVERED SF:
WIDTH: 94'-4"
DEPTH: 90'-0"
STORIES: 2
FOUNDATION:
EXTERIOR WALLS:
ROOF PITCH:
CEILING HEIGHT 1ST FLOOR:
CEILING HEIGHT 2ND FLOOR:
WHAT YOU WILL RECIEVE:
Within 1 -2 business days of purchasing your plan, you will be sent a digital Construction Drawing set in PDF format. The drawing set includes:
Shows boundaries of the foundation and dimensions of plumbing fixtures located in the foundation. This is not a structurally engineered foundation plan, but can be used by an engineer to create one.
Floor plan showing dimensions and annotations for all interior and exterior walls, door and windows, and key elements.

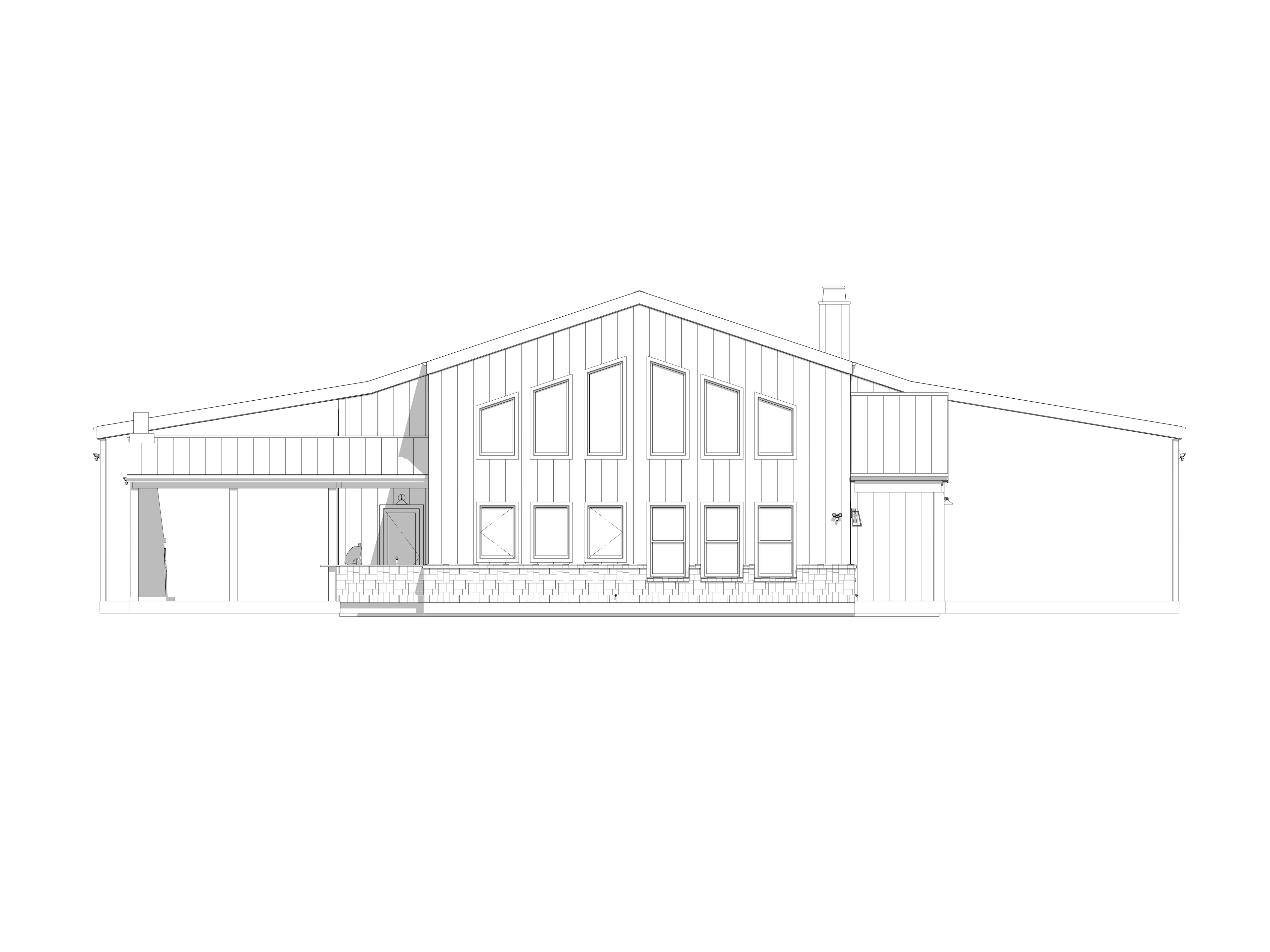

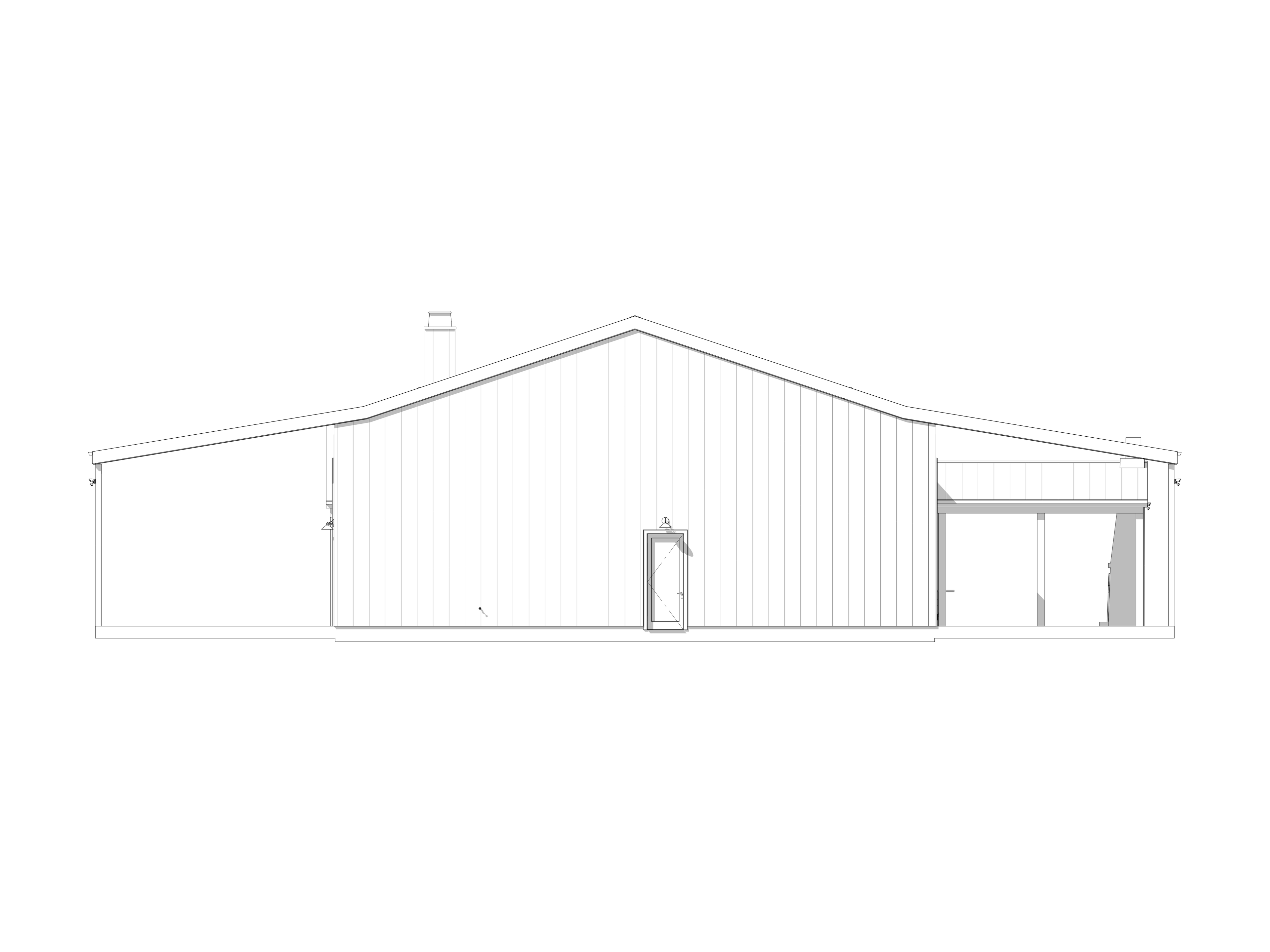

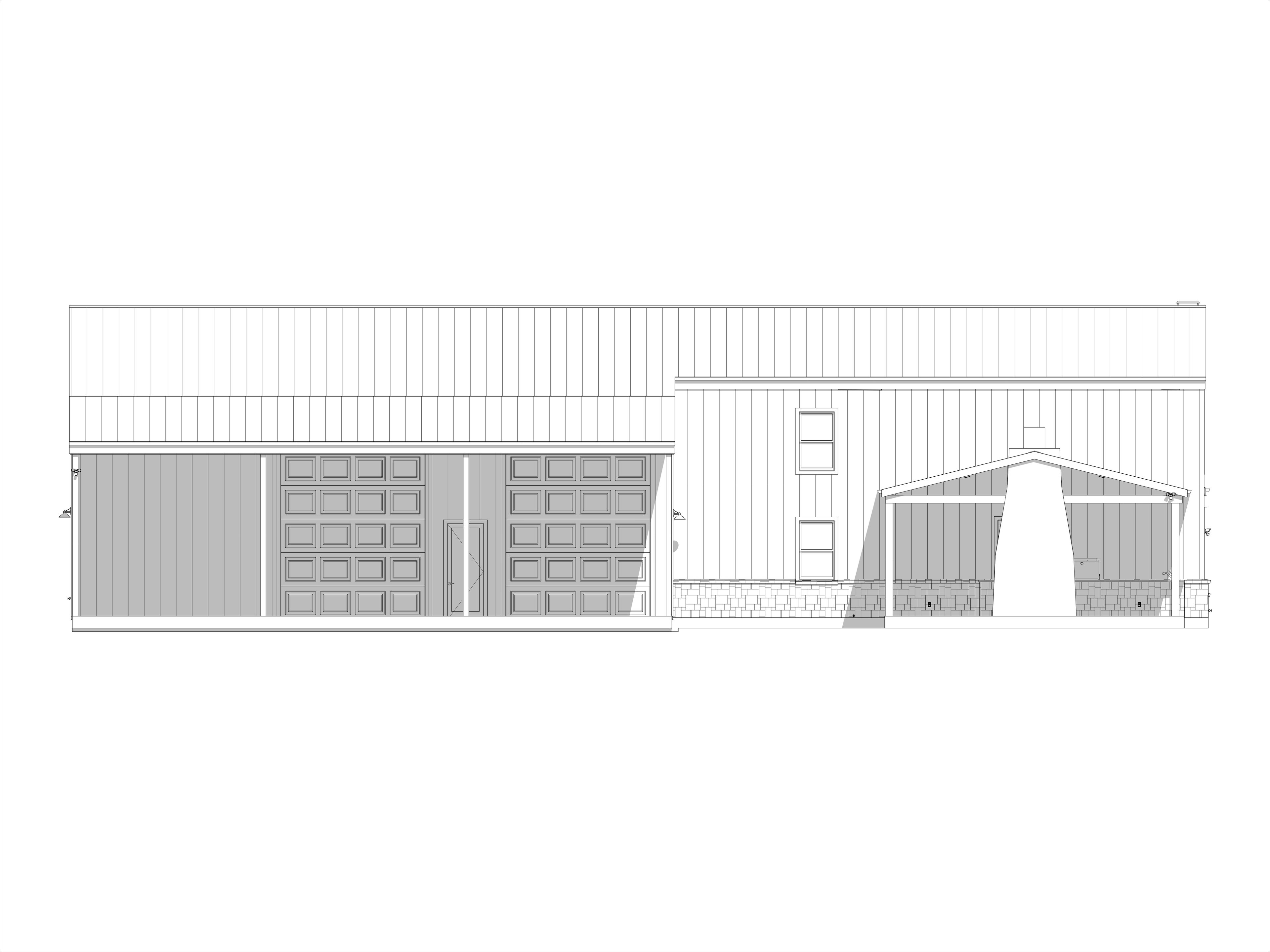

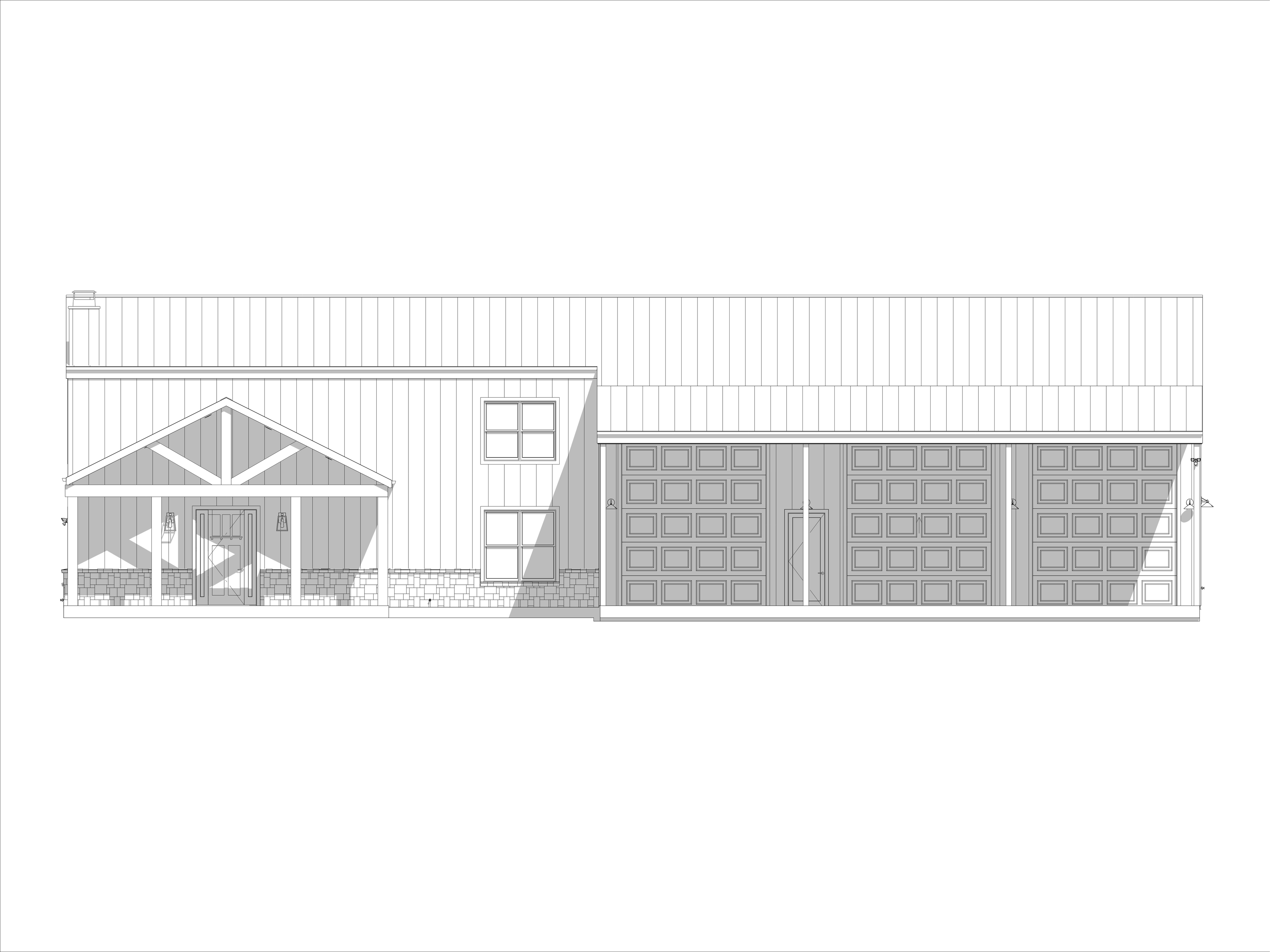

2D view of the homes exterior showing the design, finish materials, critical height relationships, door and window placements, and roof lines.
Top-down view of the roof, including ridge, valley, and hip locations, roof pitches, overhangs, and gutter and downspout locations.
Shows a section cut through the house and typical wall assembly. Shows details on how the wall is constructed and critical building heights.
Shows the location of light fixtures, switches, and outlets in the home.
This set includes:
- Exterior Rendering
- Foundation + Plumbing Layout Plan
- Dimensioned Floor Plan
- Exterior Elevations
- Roof Plan
- Door + Window Schedule
- Lighting and Power Plan
- Cross Section + Wall Section
- Typical Details
The set does not include:
- Architectural or Engineering Stamp - handled locally if required
- Structural Foundation or Framing Plans
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings showing the actual plumbing pipe sizes and locations- your subcontractors handle this
- Energy calculations
- Site Plan (Add-on available)
- Cabinet Elevations (Add-on available)
