Plan No. 2009
4 Bedroom | 3.5 Bath | 2,483 SF Home
Additional Features:
$1,650.00
Plan Description
4 Bedroom | 3.5 Bath | 2,483 SF Home
This stunning one-story Lodge style home offers 2,483 square feet of sophisticated, light-filled living space featuring 4 bedrooms, 3.5 bathrooms, and a 2-car garage — where Old World elegance and refined modern comfort come together beautifully. Soaring vaulted ceilings create an immediate sense of grandeur, while a gracious formal entry sets a distinguished tone from the moment guests arrive. Covered porches and a dramatic outdoor fireplace transform the exterior into a premier entertaining destination, perfect for gathering under the stars on a cool Texas evening. Inside, a dedicated office and spacious walk-in pantry keep daily life purposeful and organized, and generous walk-in closets deliver the personal storage space every bedroom deserves. Timeless in style and rich in detail, this European plan is a rare one-story offering that lives as beautifully as it looks.
Get A Cost Estimate For This Plan
This estimate is for general budgeting only and should not be used for financing or contractor bids. Texas House Plans assumes no responsibility for estimate accuracy.
What you will recieve:
Within 1 -2 business days of purchasing your plan, you will be sent an digital Construction Drawing set.
This set includes:

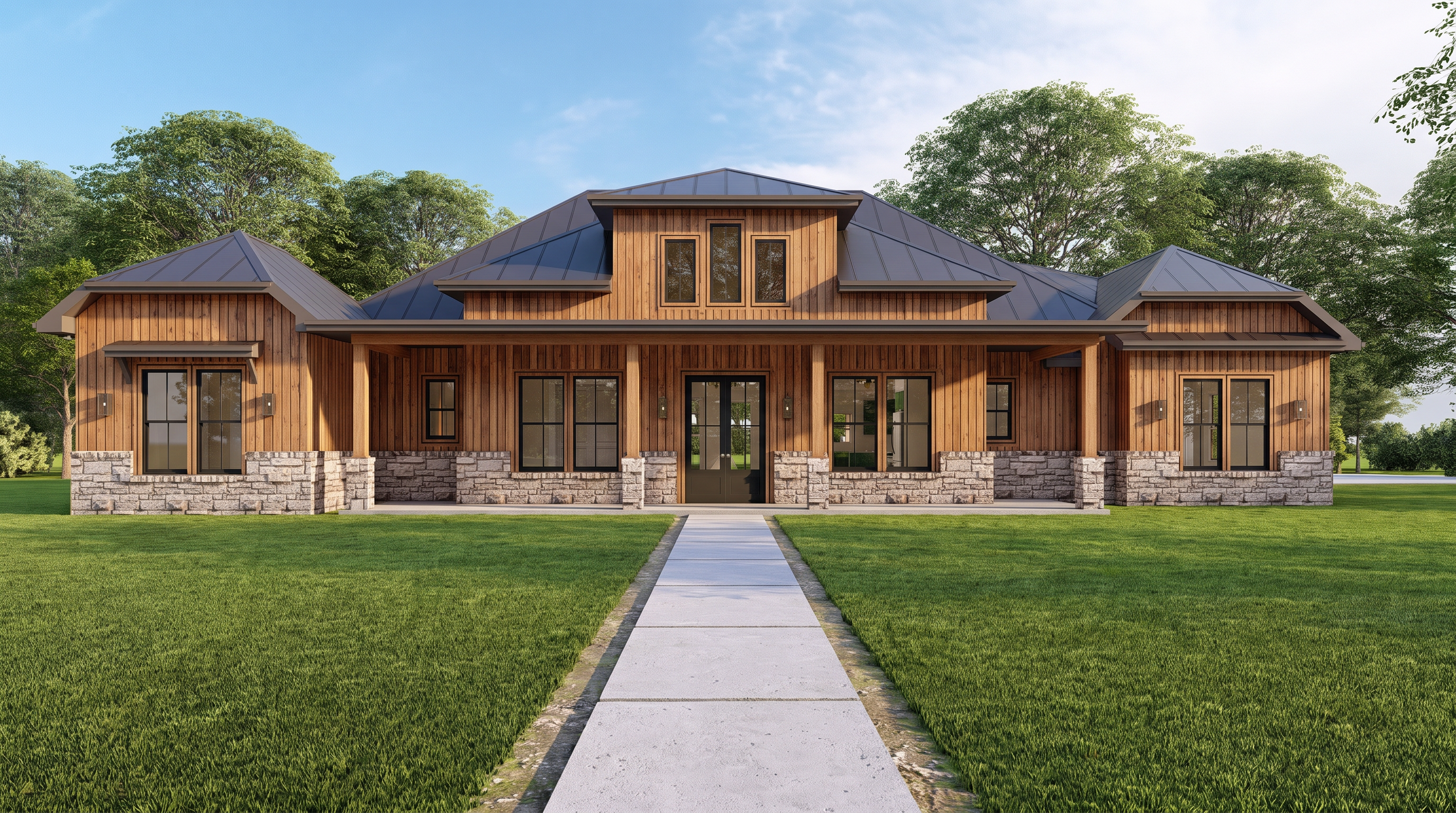

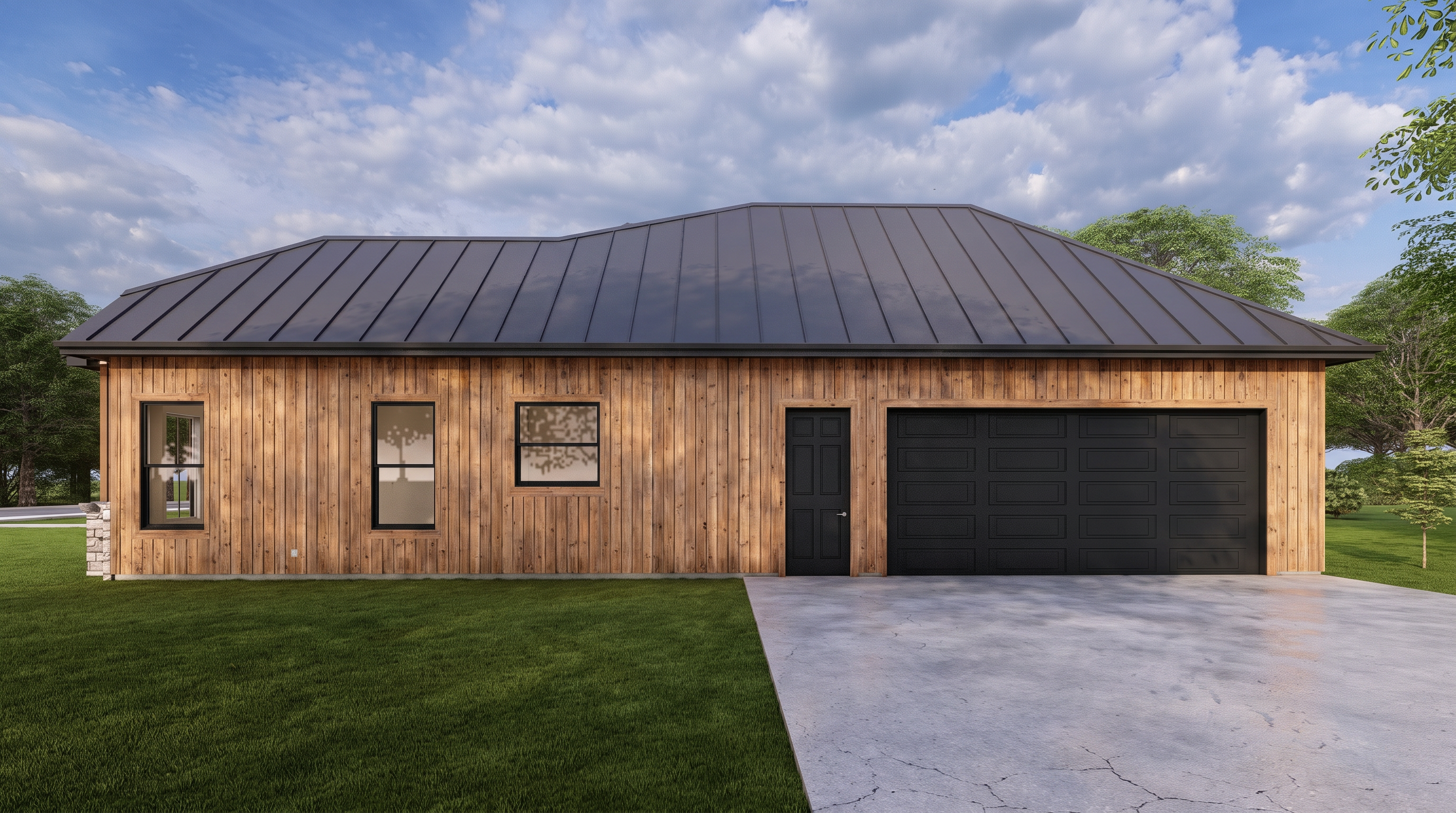

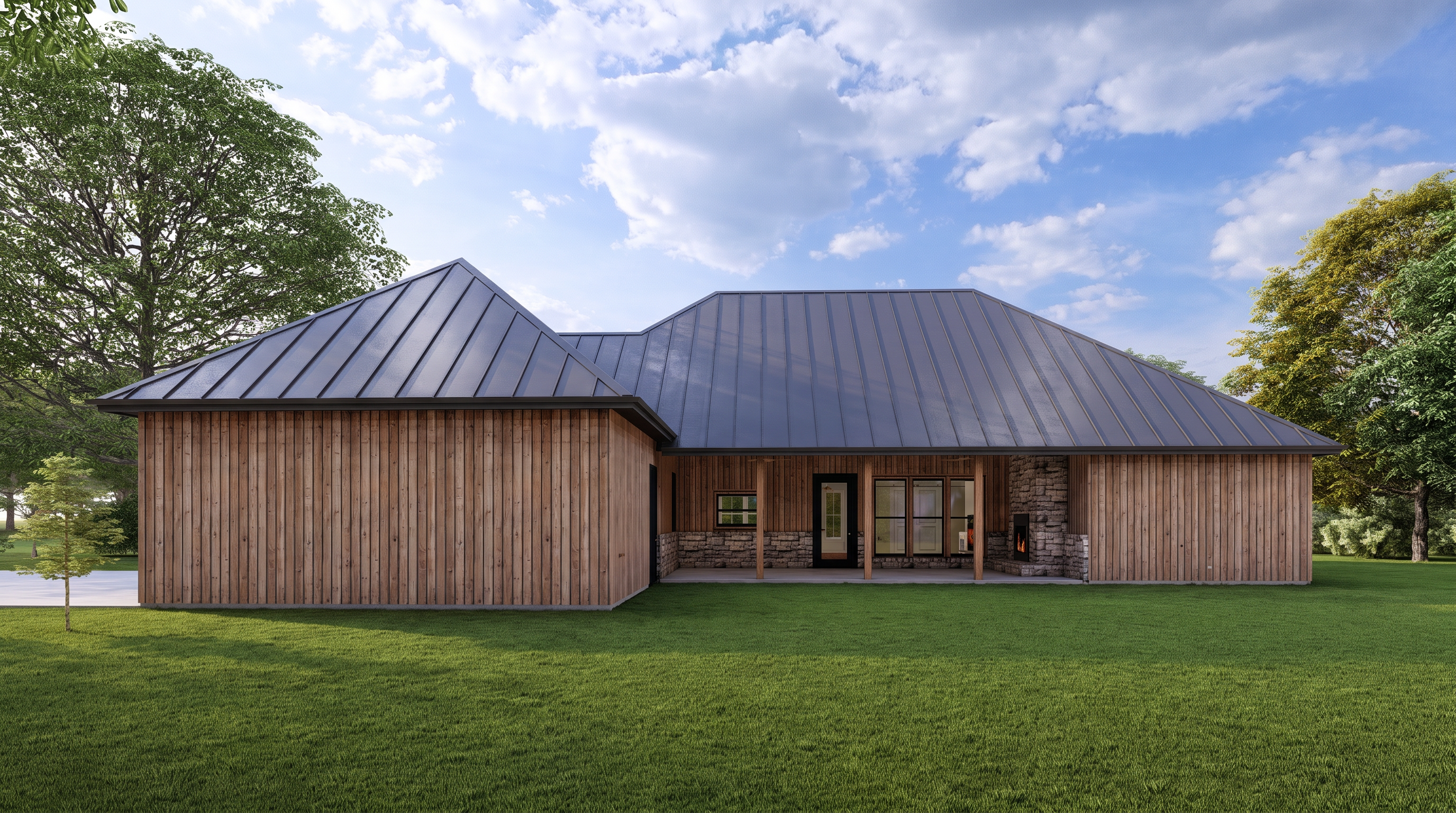

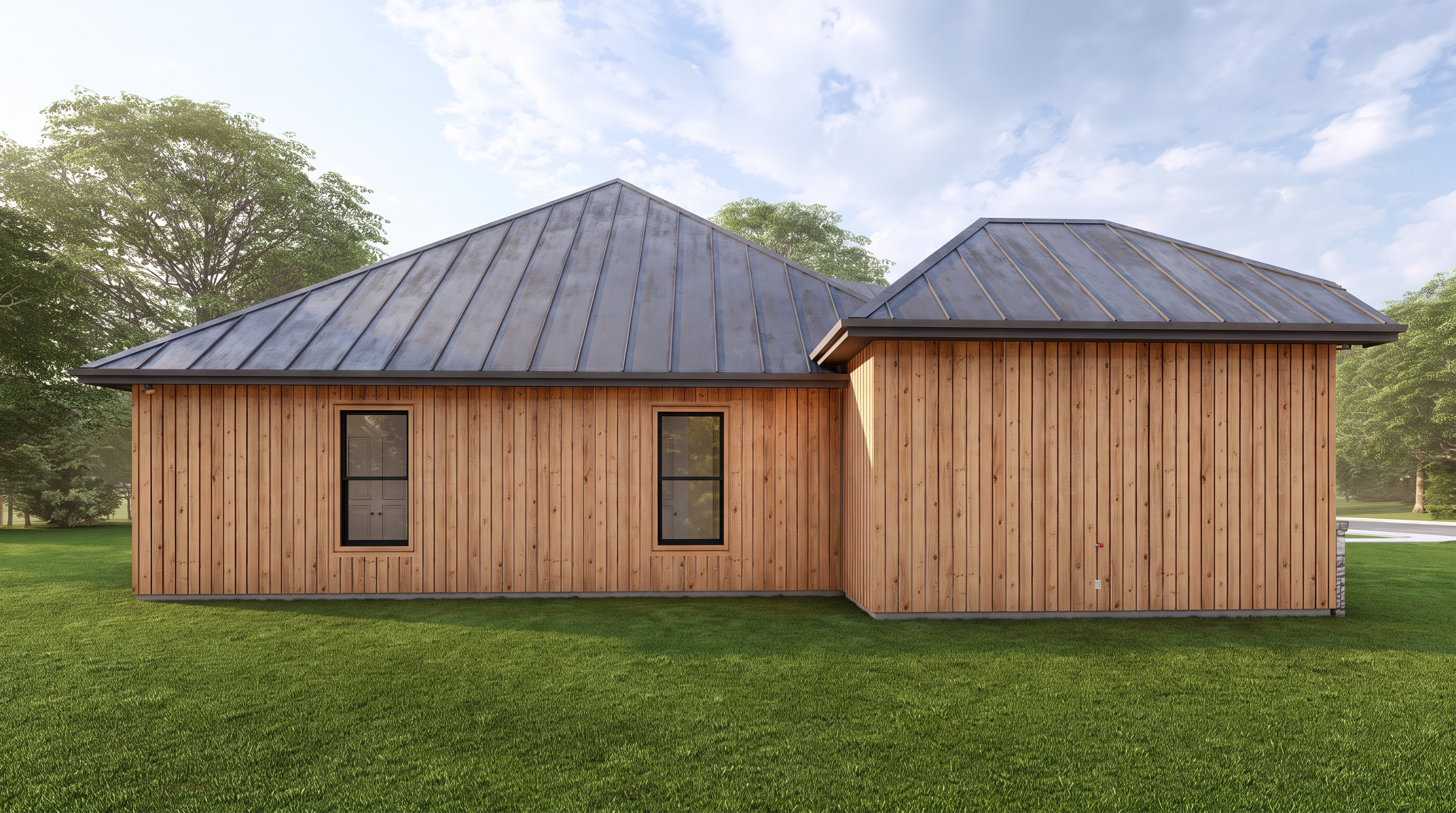

- Exterior Rendering
- Foundation + Plumbing Layout Plan
- Dimensioned Floor Plan
- Exterior Elevations
- Roof Plan
- Door + Window Schedule
- Lighting and Power Plan
- Cross Section + Typical Details
- Site Plan (If add-on is selected)
- Cabinet Elevations (If add-on is selected)
The set does not include:
- Architectural or Engineering Stamp - handled locally if required
- Structural Foundation or Framing Plans
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings showing the actual plumbing pipe sizes and locations- your subcontractors handle this
- Energy calculations
CONSTRUCTION DRAWING SET INCLUDES:
Shows boundaries of the foundation and dimensions of plumbing fixtures located in the foundation. This is not a structurally engineered foundation plan, but can be used by an engineer to create one.

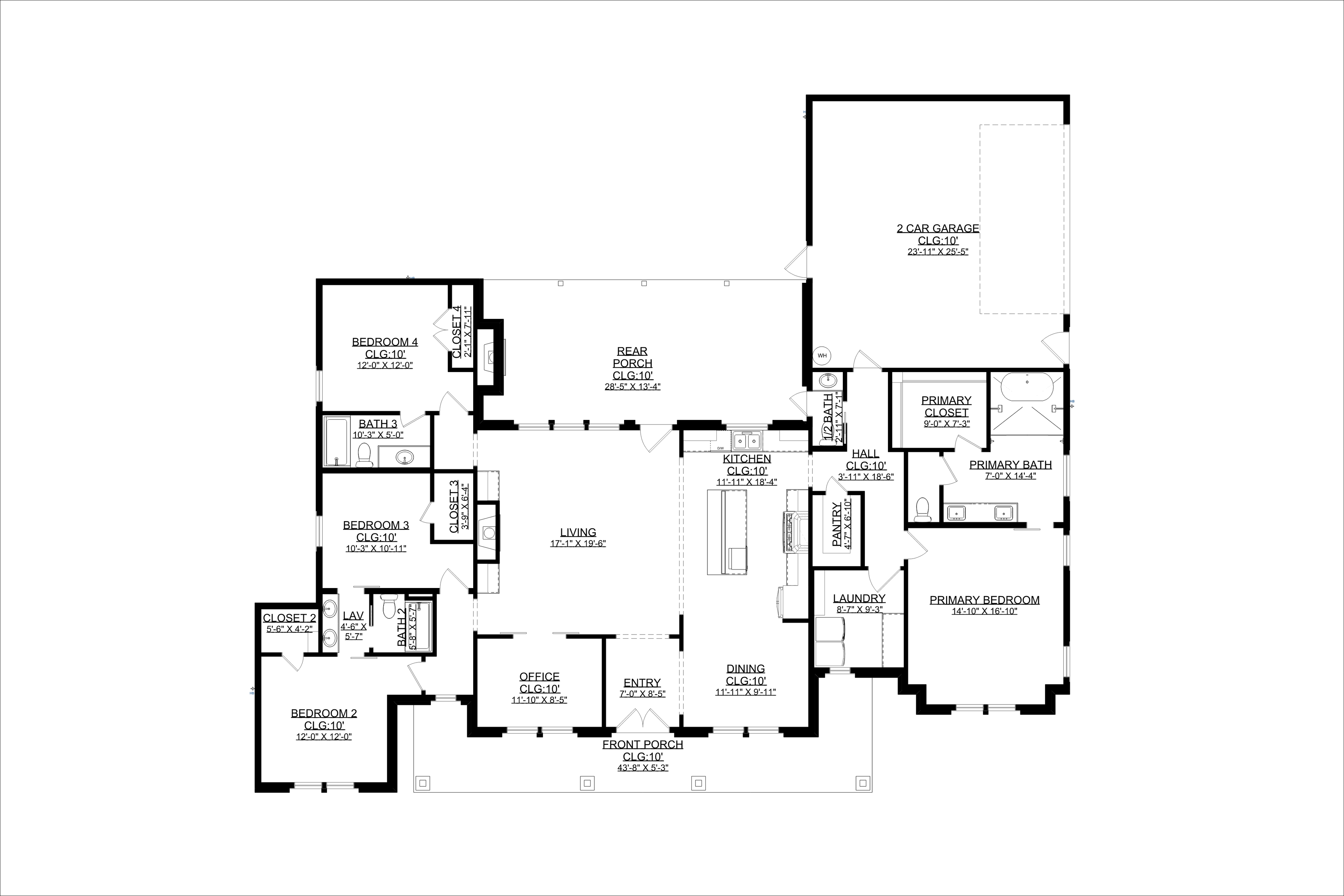

Floor plan showing dimensions and annotations for all interior and exterior walls, door and windows, and key elements.

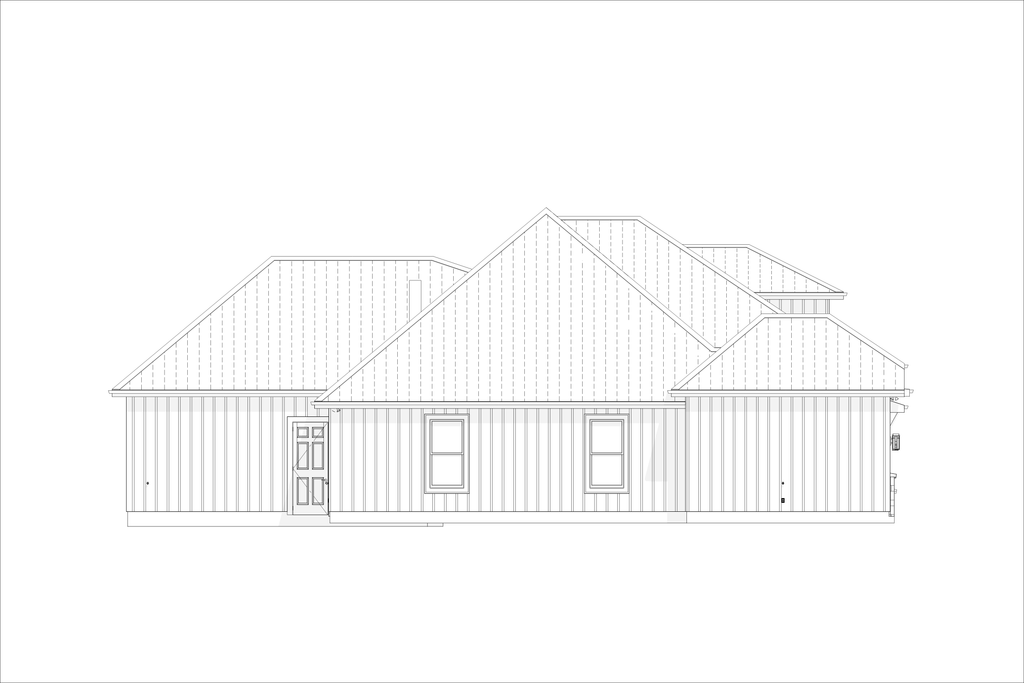

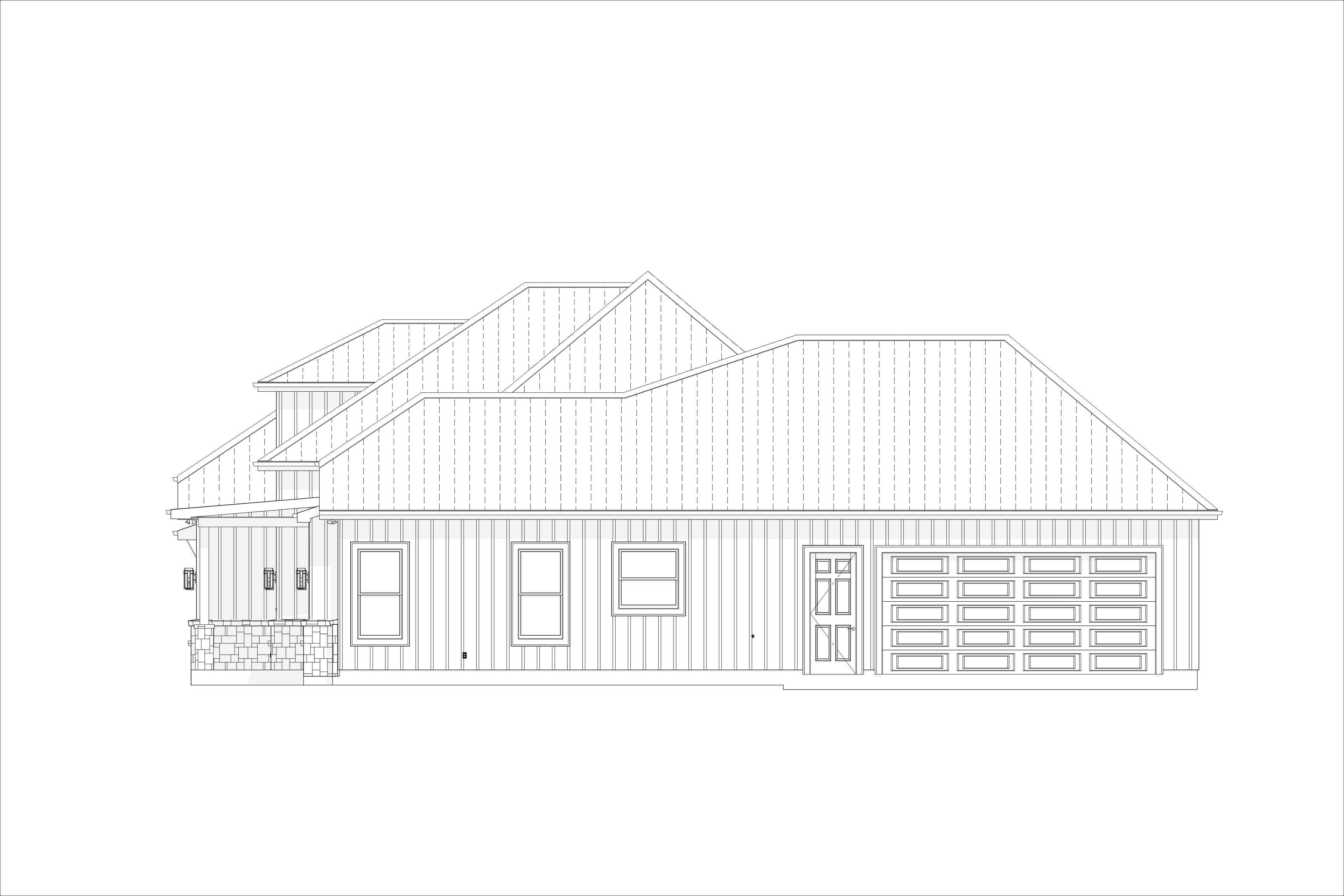

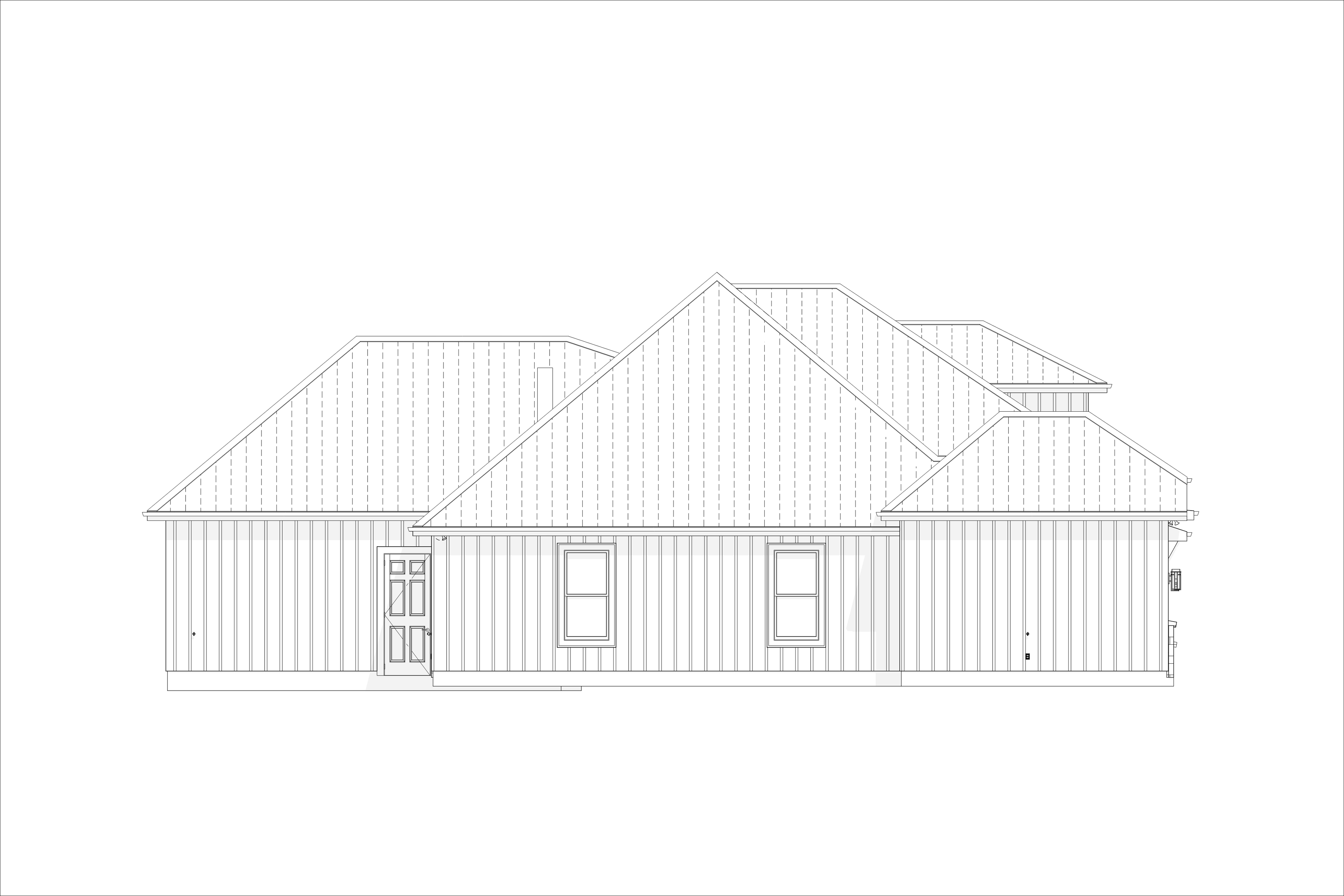

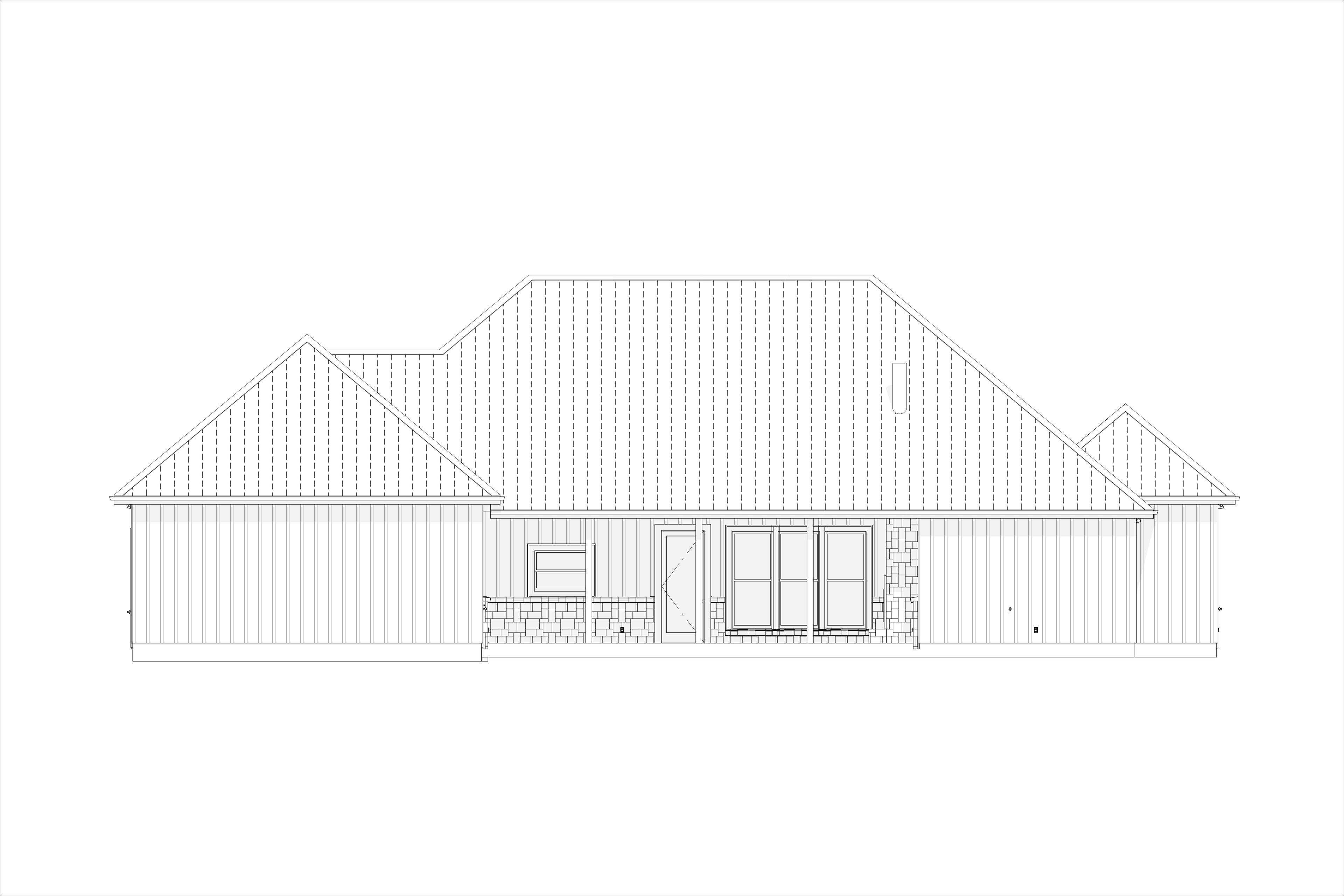

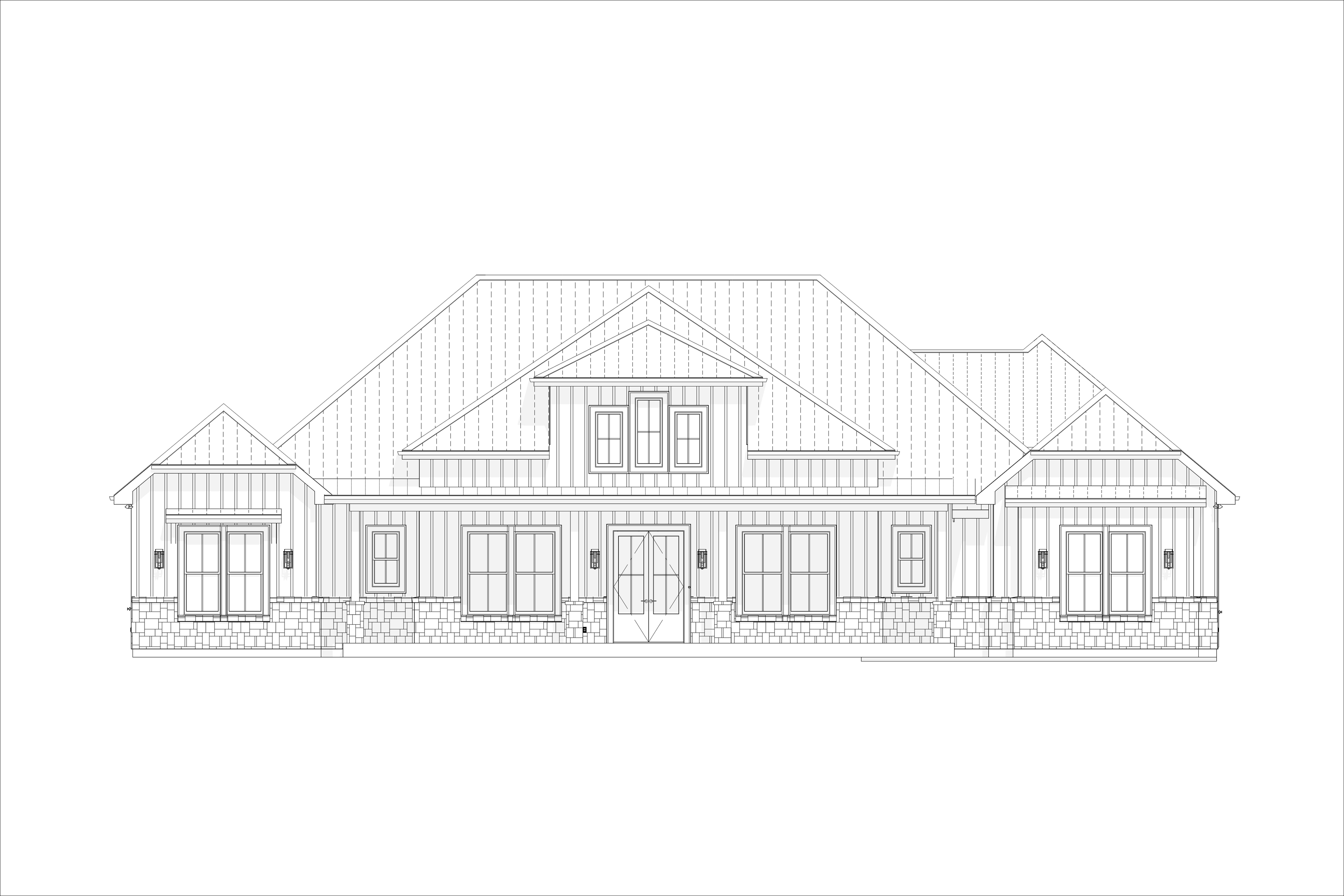

2D view of the homes exterior showing the design, finish materials, critical height relationships, door and window placements, and roof lines.
Top-down view of the roof, including ridge, valley, and hip locations, roof pitches, overhangs, and gutter and downspout locations.
Shows quantity, type, and size of the doors and windows located in the house.
Shows the location of light fixtures, switches, and outlets in the home.
Frequently asked questions
Can I request modifications to a house plan?
If you would like to make modifications to a house plan, please email us at admin@texashouseplans.com with the plan number and modifcation requests. We will provide a quote for the additional charge for the changes.
Are any purchases final sale?
Yes, because these are electronic files we are not able to offer refunds on plans that have been sent. If you have issues with an order please send us an email.
When will I get my order?
You will receive your drawing set via email set within 1 business day after purchase.
Do you offer printed sets?
While we don't offer printed sets, we can offer recommendations on where to get full size drawings sets printed. We also recommend checking with your builder for access to printed sets.
