Plan No. 1030
$1,650.00
Skip to product information
Plan No. 1030
4 Bedroom | 2.5 Bath | 1,997 SF Home
Additional Features:
$1,650.00
Shipping calculated at checkout.
Plan Description
4 Bedroom | 2.5 Bath | 1,997 SF Home
Brick and board and batten give this one-story farmhouse style home its familiar Texas character, with 1,997 square feet, 4 bedrooms, 2.5 bathrooms and a 2-car garage arranged on a single level. A long covered front porch leads to a formal entry that gives guests a proper welcome on the way to the living room and dining area. In the kitchen, a kitchen island gives everyone a place to pull up a stool for breakfast or homework. Ten-foot ceilings carry through the main rooms, so the living spaces feel taller than the square footage suggests. The primary suite has its own bath and a walk-in closet, while three more bedrooms leave room for kids, guests or a home office. Out back, a covered rear porch is ready for morning coffee or an evening watching the weather roll in. It is a farmhouse that keeps daily life simple and puts everyone under one roof on one floor.
Designed in Texas by Texas House Plans, an architecture studio with 20+ years experience and 2,000+ projects. Questions before you buy? Call (888) 702-2555.
What is in your drawing set
Your plan arrives by email as a PDF construction drawing set:

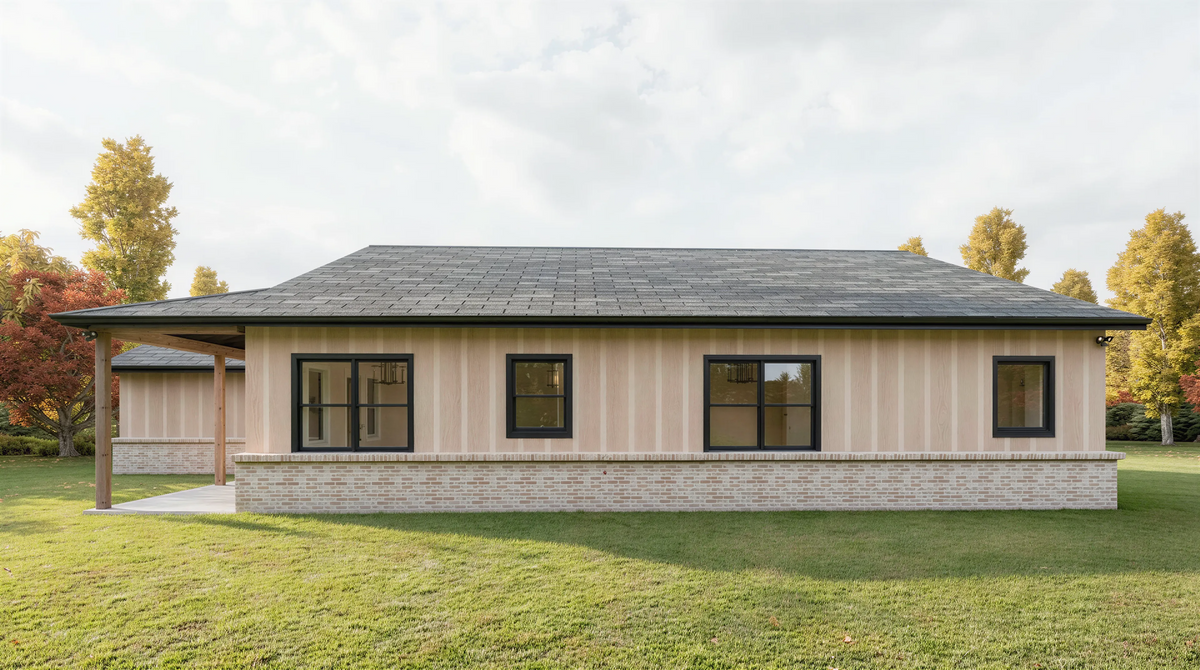

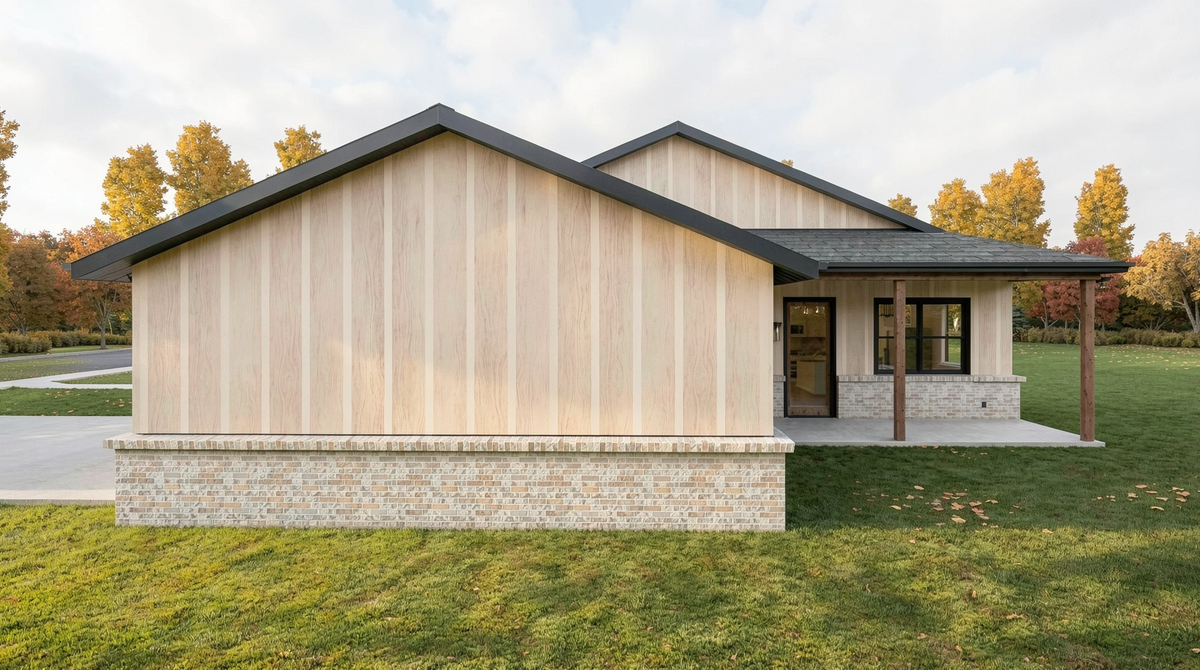

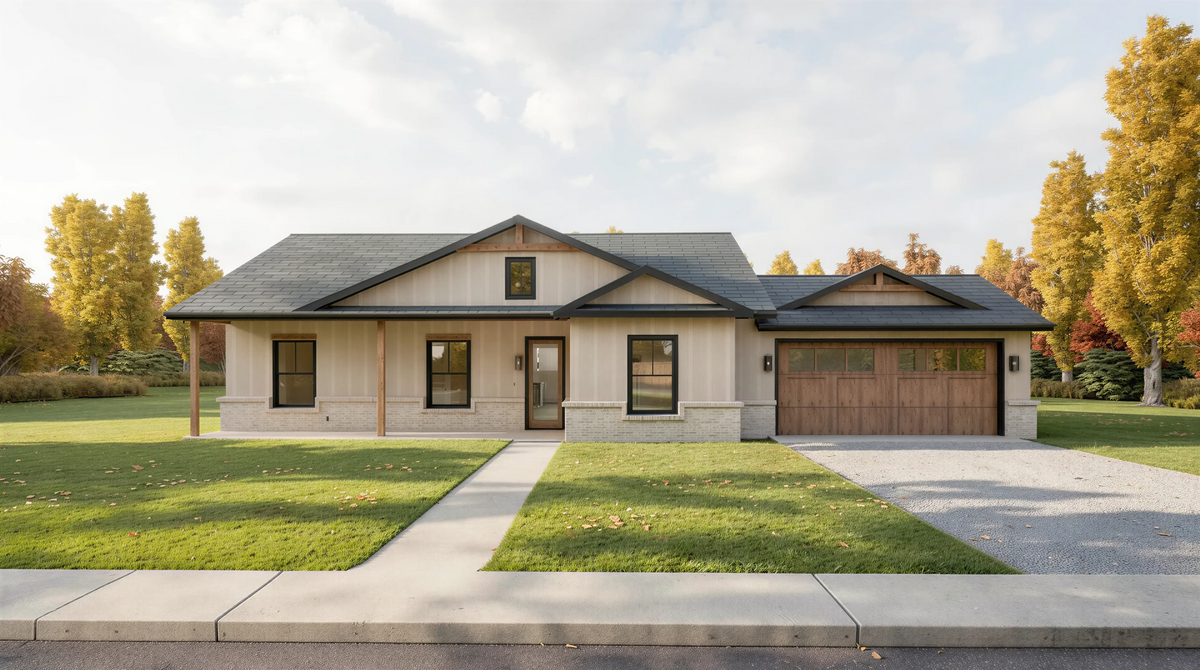

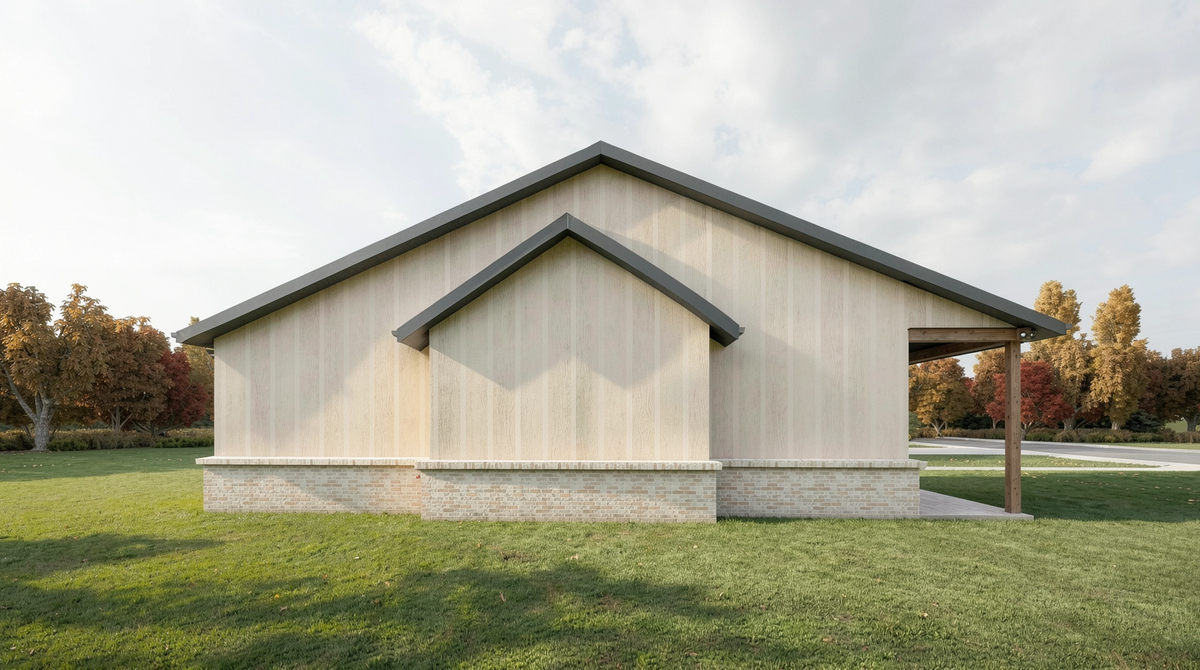

- Exterior Rendering
- Foundation and Plumbing Layout Plan
- Dimensioned Floor Plan

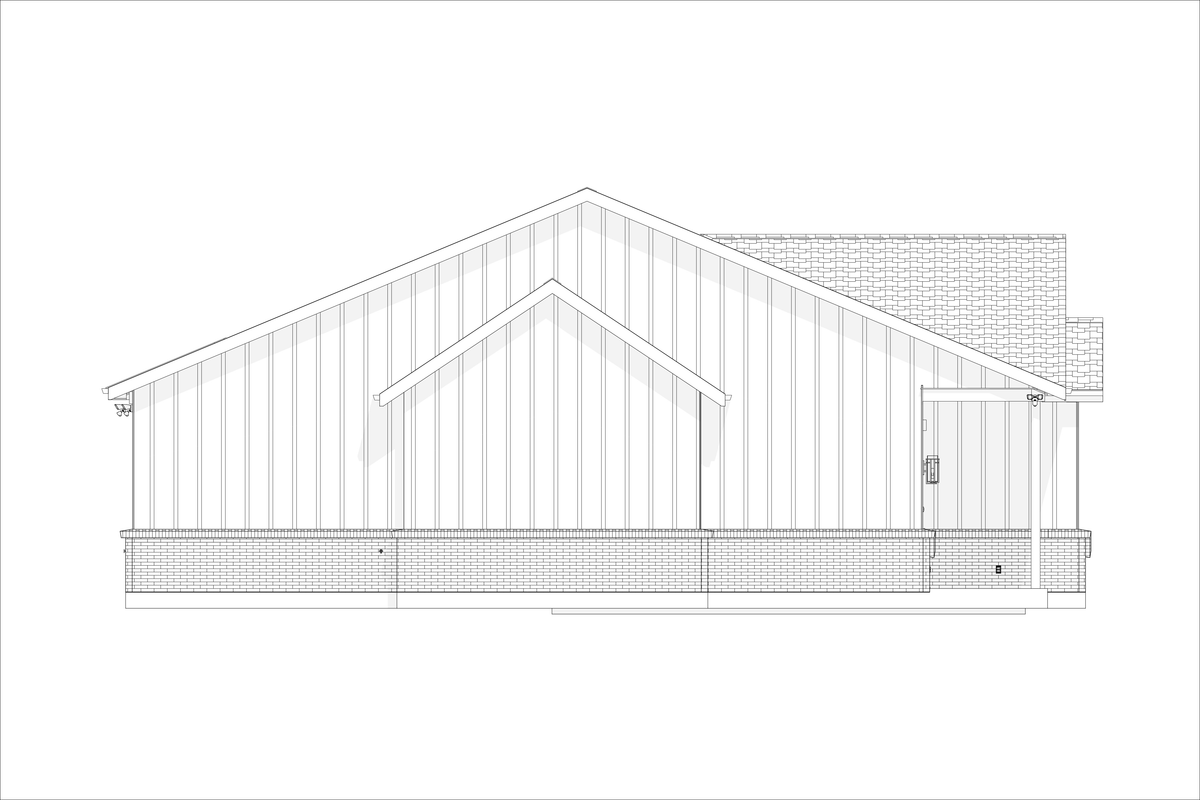

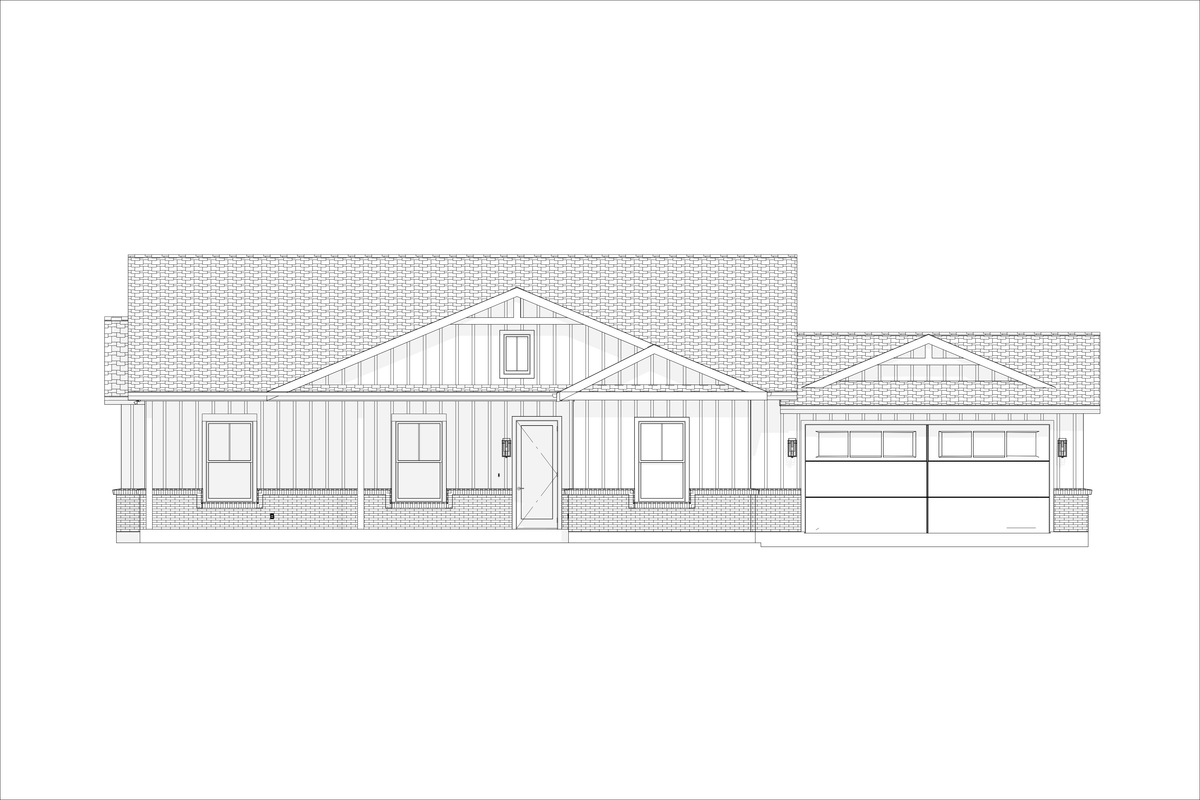

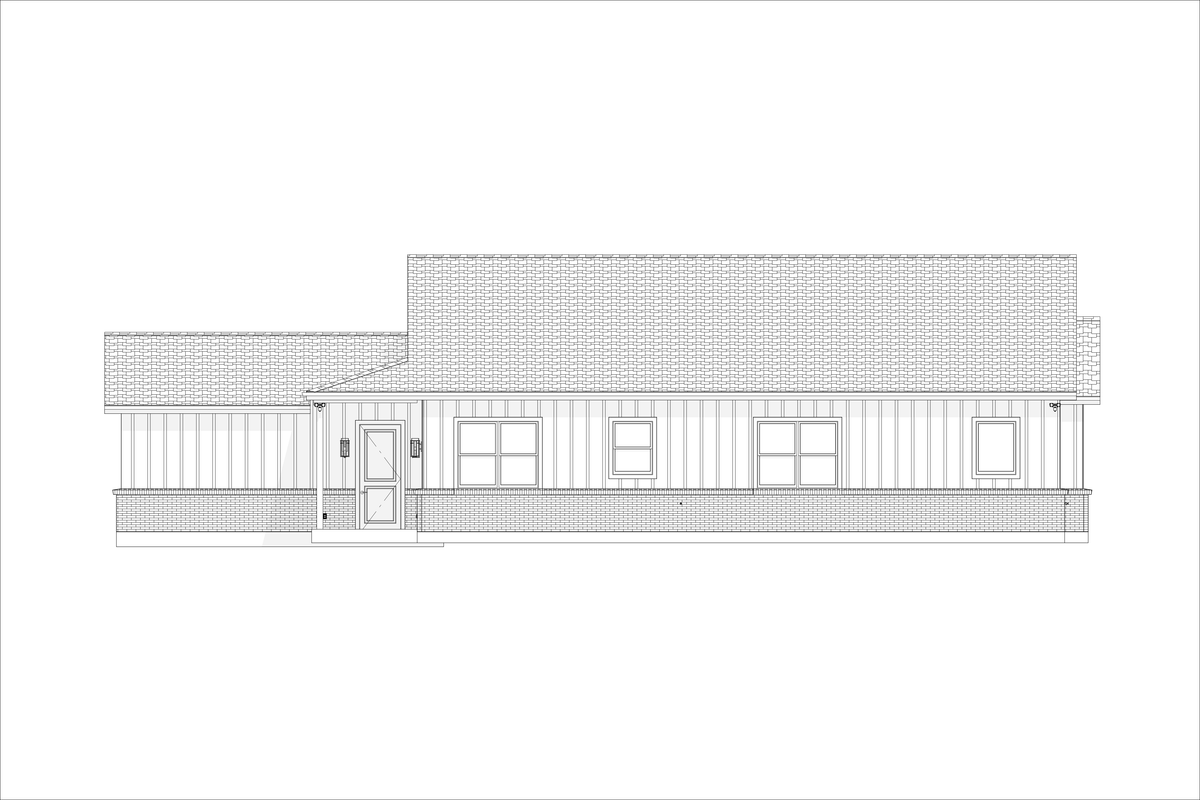

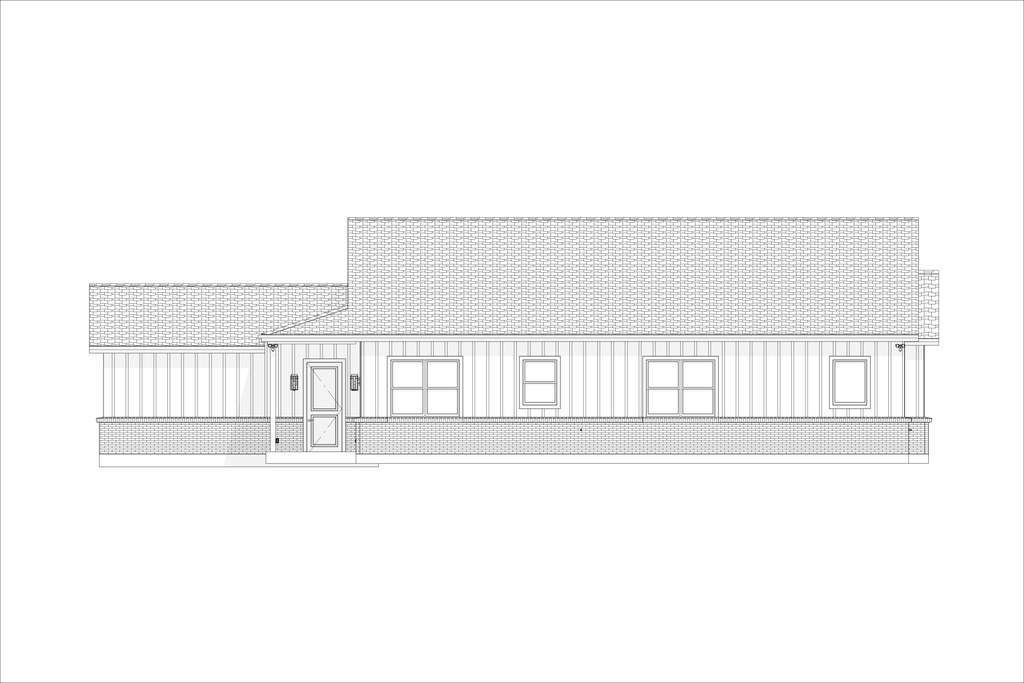

- Exterior Elevations
- Roof Plan
- Door and Window schedule
- Lighting and Power Plan
- Cross Section and Wall section
- Typical Details
When will I get my order?
Orders arrive via email within 1 to 2 business days. You will be able to download your file directly from the email.
REQUEST CUSTOMIZATION
We will send you a quote based on your requests!
COST TO BUILD ESTIMATE
Get A Cost Estimate For This Plan
This estimate is for general budgeting only and should not be used for financing or contractor bids. Texas House Plans assumes no responsibility for estimate accuracy.
We will send you a quote based on your requests!
LICENSE USE + REFUND POLICY
Each purchase is a license to build the home one time. Building it again? Ask us about rebuild pricing. Build-ready plans are digital files, so all sales are final.
BEDROOMS: 4
BATHROOMS: 2.5
GARAGE SPACES: 2
HEATED SQ FT: 1,997 SF
TOTAL COVERED SF: 2,901 SF
WIDTH: 71'-10"
DEPTH: 48'-6"
STORIES: 1
FOUNDATION: Slab on Grade
EXTERIOR WALLS: 2x6
ROOF PITCH:
CEILING HEIGHT 1ST FLOOR: 10'-0"
CEILING HEIGHT 2ND FLOOR: N/A
WHAT YOU WILL RECIEVE:
Within 1 -2 business days of purchasing your plan, you will be sent a digital Construction Drawing set in PDF format. The drawing set includes:
Shows boundaries of the foundation and dimensions of plumbing fixtures located in the foundation. This is not a structurally engineered foundation plan, but can be used by an engineer to create one.
Floor plan showing dimensions and annotations for all interior and exterior walls, door and windows, and key elements.

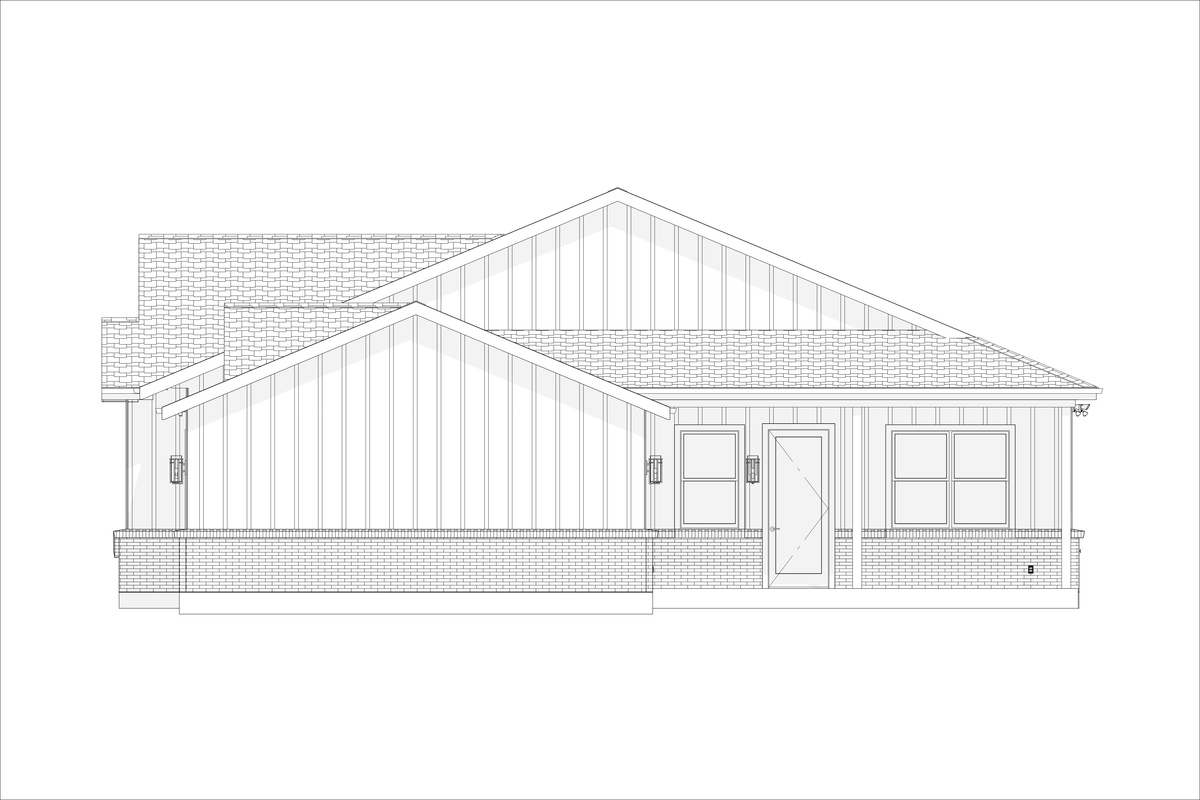

2D view of the homes exterior showing the design, finish materials, critical height relationships, door and window placements, and roof lines.
Top-down view of the roof, including ridge, valley, and hip locations, roof pitches, overhangs, and gutter and downspout locations.
Shows a section cut through the house and typical wall assembly. Shows details on how the wall is constructed and critical building heights.
Shows the location of light fixtures, switches, and outlets in the home.
This set includes:
- Exterior Rendering
- Foundation + Plumbing Layout Plan
- Dimensioned Floor Plan
- Exterior Elevations
- Roof Plan
- Door + Window Schedule
- Lighting and Power Plan
- Cross Section + Wall Section
- Typical Details
The set does not include:
- Architectural or Engineering Stamp - handled locally if required
- Structural Foundation or Framing Plans
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings showing the actual plumbing pipe sizes and locations- your subcontractors handle this
- Energy calculations
- Site Plan (Add-on available)
- Cabinet Elevations (Add-on available)
Frequently asked questions
Can I request modifications to a house plan?
Yes! Click the Request Modifications button under the Plan Description and fill out the form. We will provide a quote for the additional charge for the changes.
Are any purchases final sale?
Yes, because these are electronic files we are not able to offer refunds on plans that have been sent. If you have issues with an order please send us an email.
When will I get my order?
You will receive your drawing set via email set within 1 business day after purchase.
Do you offer printed sets?
While we don't offer printed sets, we can offer recommendations on where to get full size drawings sets printed. We also recommend checking with your builder for access to printed sets.
