Plan No. 1028
3 Bedroom | 2 Bath | 1,742 SF Home
Additional Features:
$1,650.00
Shipping calculated at checkout.
Plan Description
3 Bedroom | 2 Bath | 1,742 SF Home
Board and batten siding and a covered front porch set the tone for this one-story farmhouse style home, where 1,742 square feet hold 3 bedrooms, 2 bathrooms and a 2-car garage. The kitchen island gives everyone a place to land for breakfast, homework or a late snack, and a dedicated office gives work a door that closes. In the primary suite, a sitting room makes space for a quiet chair and a book, the bath has a curbless shower with a built-in bench, and the walk-in closet opens straight into the laundry, so clean clothes travel only a few steps. Covered porches front and back carry the day outside, from morning coffee to long Texas evenings. This farmhouse pairs a classic look with a layout built around everyday routines.
Designed in Texas by Texas House Plans, an architecture studio with 20+ years experience and 2,000+ projects. Questions before you buy? Call (888) 702-2555.
What is in your drawing set
Your plan arrives by email as a PDF construction drawing set:
- Exterior Rendering
- Foundation and Plumbing Layout Plan
- Dimensioned Floor Plan

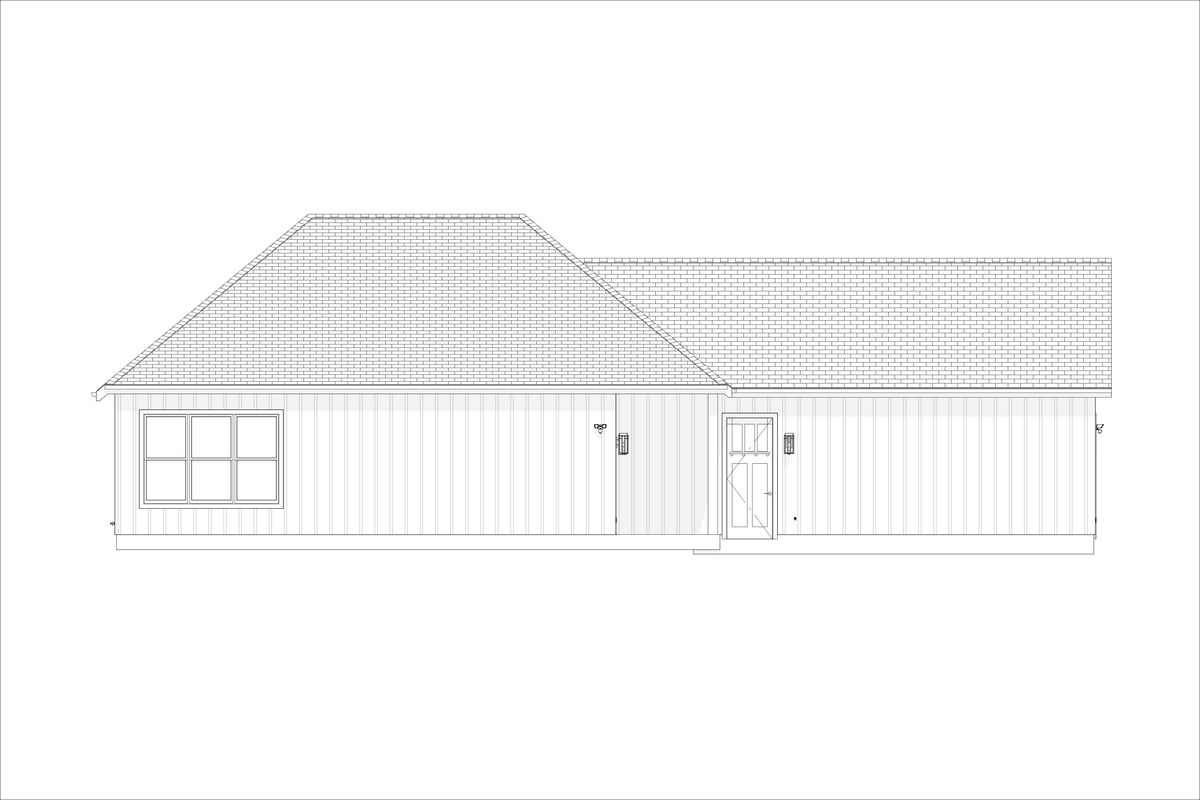

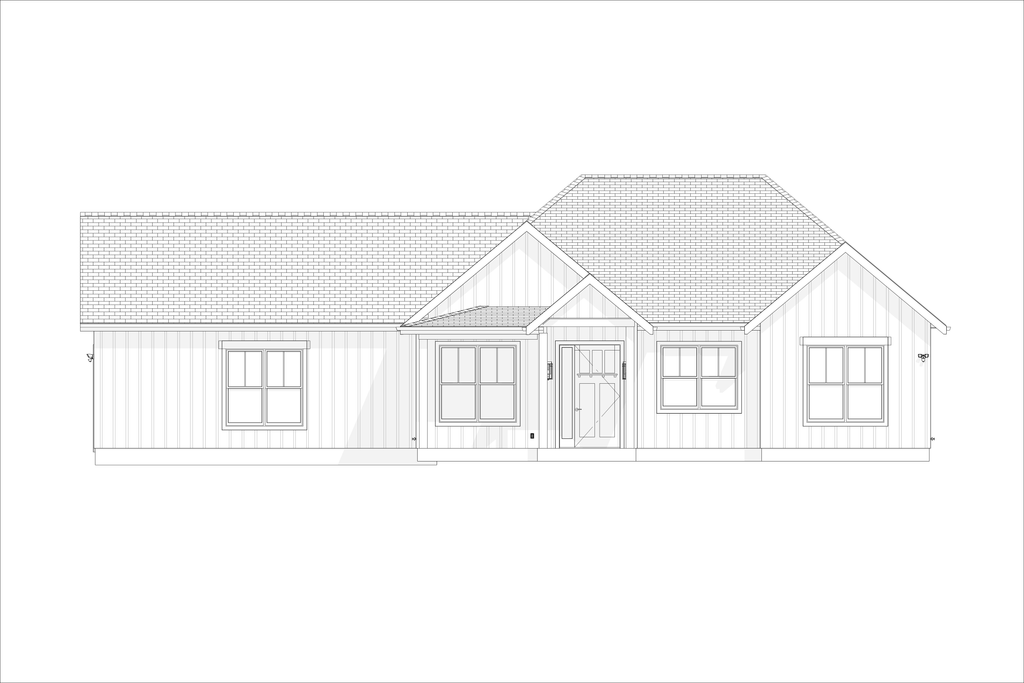

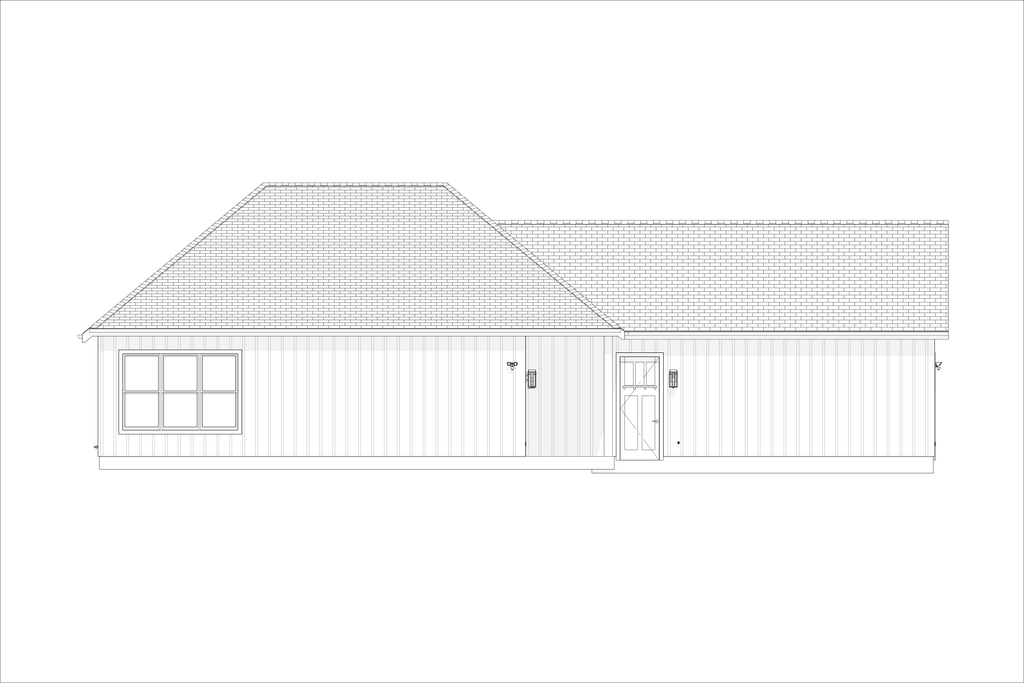

- Exterior Elevations
- Roof Plan
- Door and Window schedule
- Lighting and Power Plan
- Cross Section and Wall section
- Typical Details
When will I get my order?
Orders arrive via email within 1 to 2 business days. You will be able to download your file directly from the email.
REQUEST CUSTOMIZATION
We will send you a quote based on your requests!
COST TO BUILD ESTIMATE
Get A Cost Estimate For This Plan
This estimate is for general budgeting only and should not be used for financing or contractor bids. Texas House Plans assumes no responsibility for estimate accuracy.
We will send you a quote based on your requests!
LICENSE USE + REFUND POLICY
Each purchase is a license to build the home one time. Building it again? Ask us about rebuild pricing. Build-ready plans are digital files, so all sales are final.
BEDROOMS: 3
BATHROOMS: 2.0
GARAGE SPACES: 2
HEATED SQ FT: 1,742 SF
TOTAL COVERED SF: 2,522 SF
WIDTH: 64'-8 1/2"
DEPTH: 57'-0"
STORIES: 1
FOUNDATION: Slab on Grade
EXTERIOR WALLS: 2x6
ROOF PITCH:
CEILING HEIGHT 1ST FLOOR: 10'-0"
CEILING HEIGHT 2ND FLOOR: N/A
WHAT YOU WILL RECIEVE:
Within 1 -2 business days of purchasing your plan, you will be sent a digital Construction Drawing set in PDF format. The drawing set includes:
Shows boundaries of the foundation and dimensions of plumbing fixtures located in the foundation. This is not a structurally engineered foundation plan, but can be used by an engineer to create one.

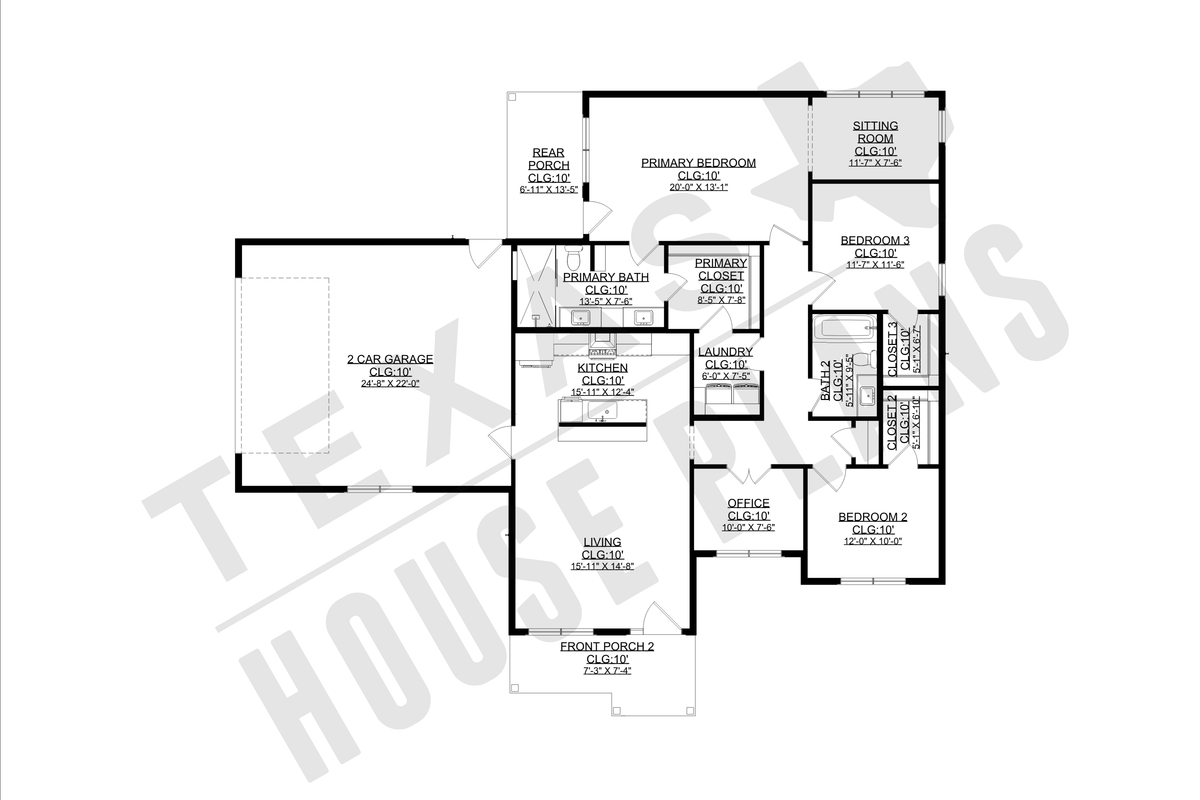

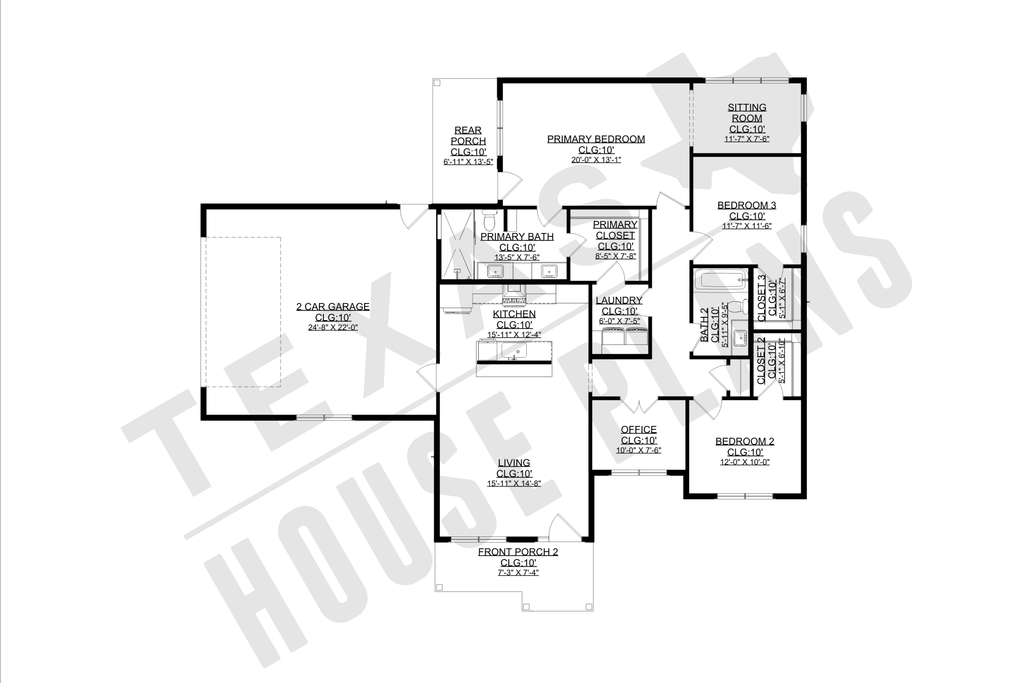

Floor plan showing dimensions and annotations for all interior and exterior walls, door and windows, and key elements.

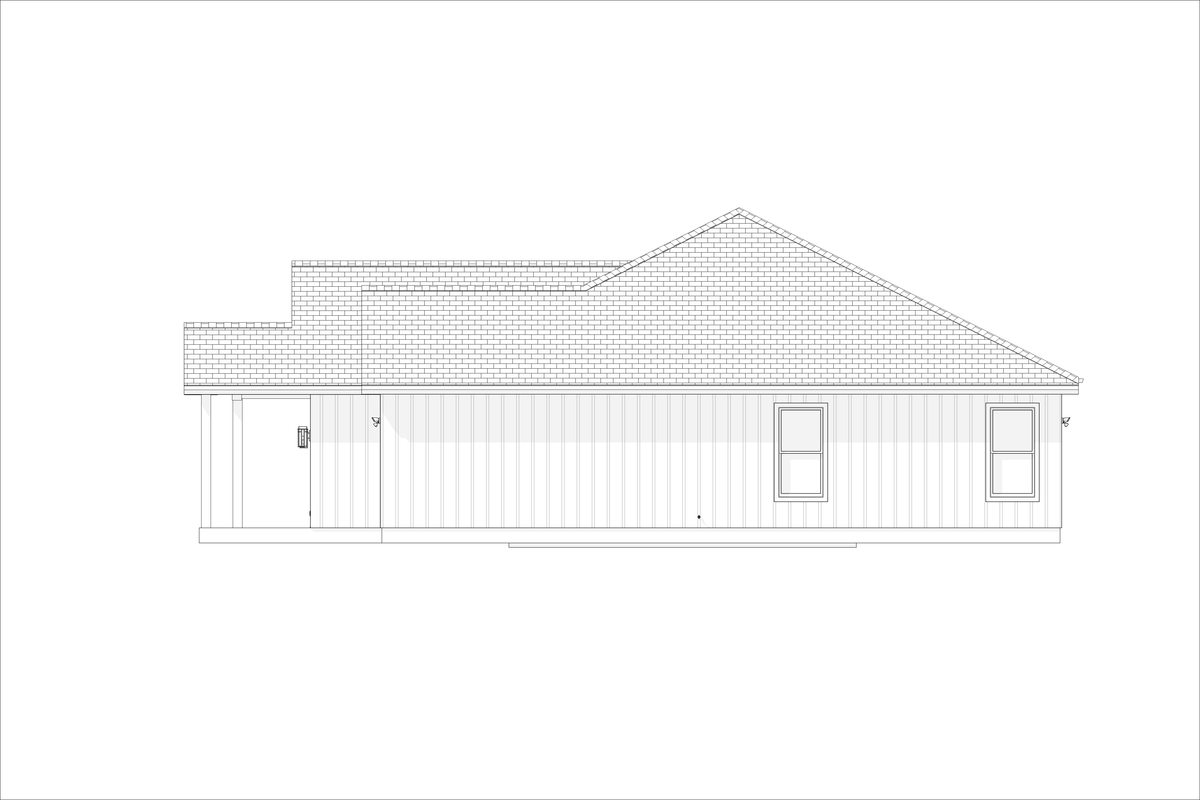

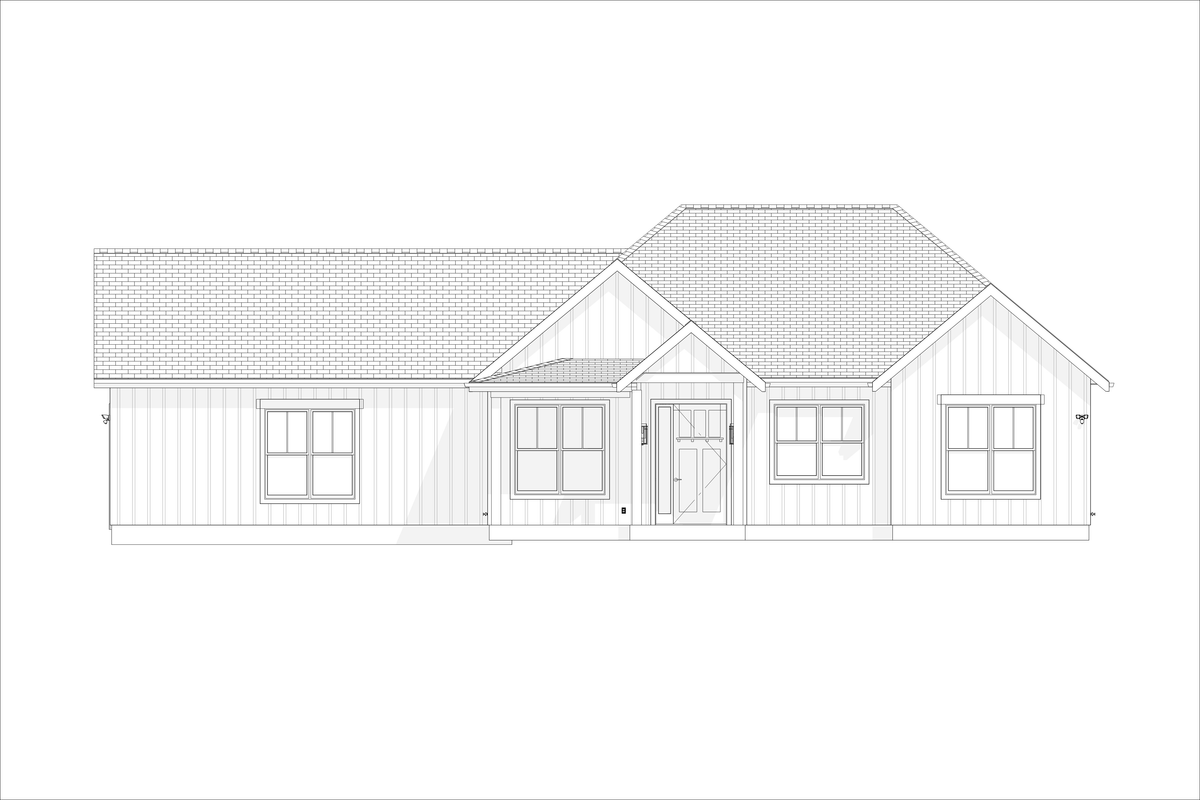

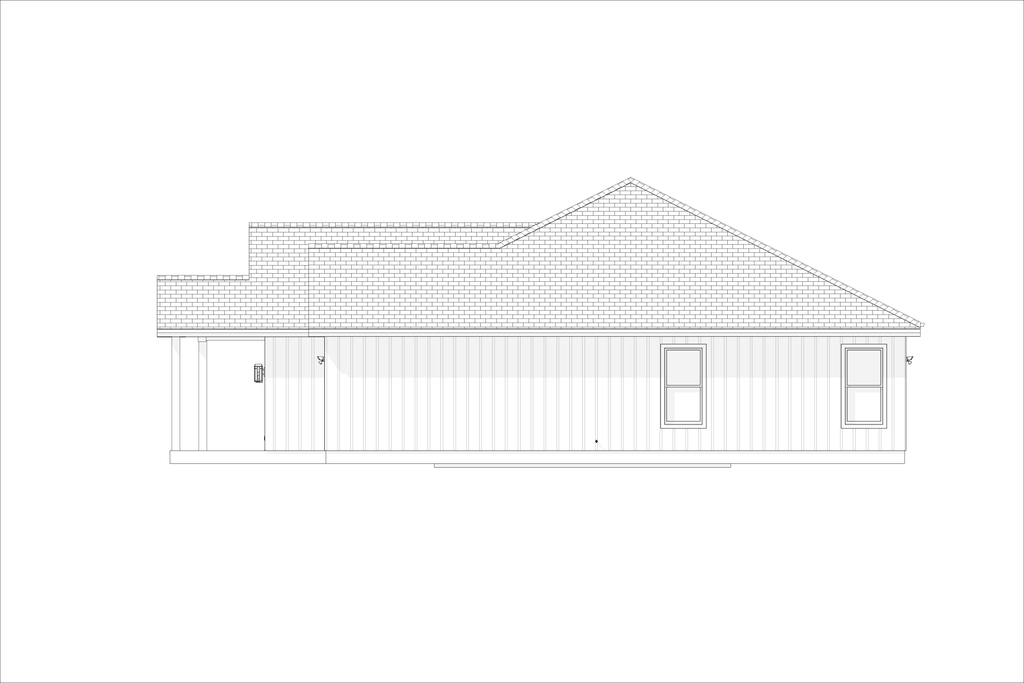

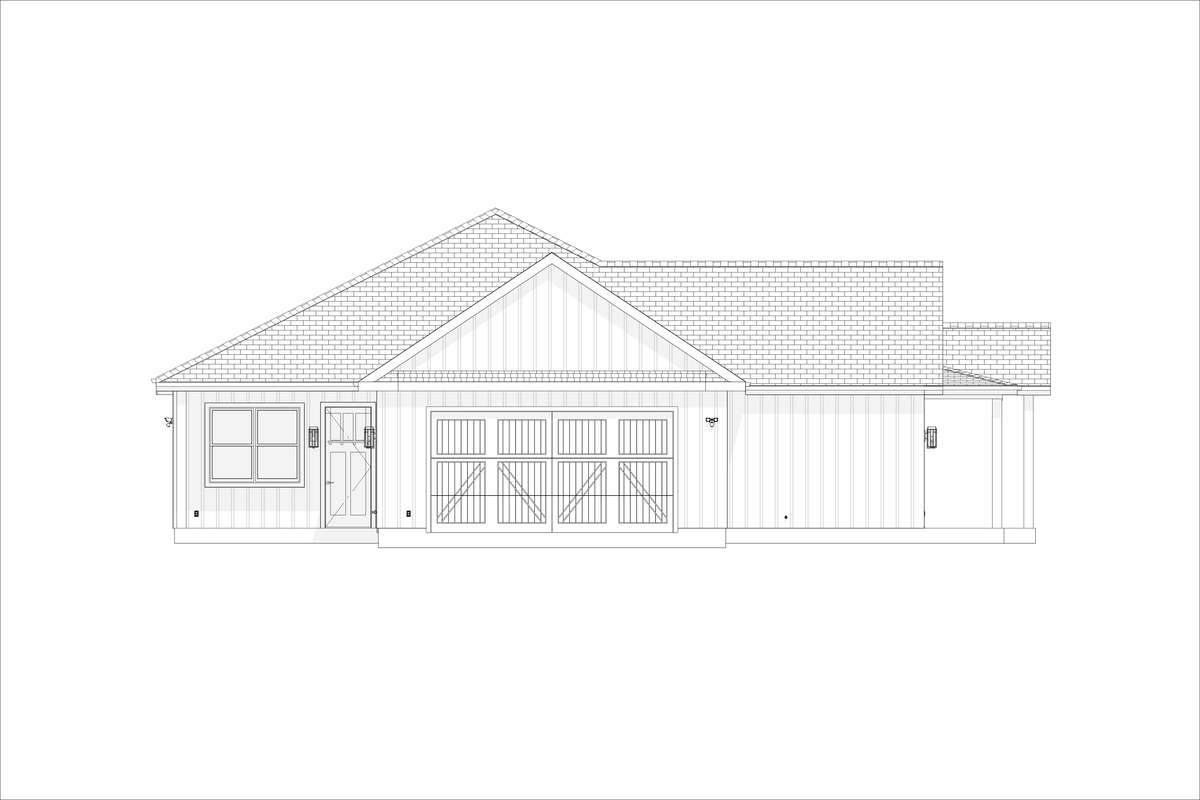

2D view of the homes exterior showing the design, finish materials, critical height relationships, door and window placements, and roof lines.
Top-down view of the roof, including ridge, valley, and hip locations, roof pitches, overhangs, and gutter and downspout locations.
Shows a section cut through the house and typical wall assembly. Shows details on how the wall is constructed and critical building heights.
Shows the location of light fixtures, switches, and outlets in the home.
This set includes:
- Exterior Rendering
- Foundation + Plumbing Layout Plan
- Dimensioned Floor Plan
- Exterior Elevations
- Roof Plan
- Door + Window Schedule
- Lighting and Power Plan
- Cross Section + Wall Section
- Typical Details
The set does not include:
- Architectural or Engineering Stamp - handled locally if required
- Structural Foundation or Framing Plans
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings showing the actual plumbing pipe sizes and locations- your subcontractors handle this
- Energy calculations
- Site Plan (Add-on available)
- Cabinet Elevations (Add-on available)
