Plan No. 1009
3 Bedroom | 2.5 Bath | 1,972 SF Home
Additional Features:
$1,250.00
Shipping calculated at checkout.
Plan Description
3 Bedroom | 2.5 Bath | 1,972 SF Home
This charming one-story Craftsman style home offers 1,972 square feet of warm, well-crafted living space featuring 3 bedrooms, 2.5 bathrooms, and a layout that makes the most of every square foot. Covered porches welcome you with that classic Craftsman character that never goes out of style, while a cozy fireplace anchors the main living area with warmth and heart. The kitchen shines with a practical and inviting kitchen island perfect for casual meals and everyday gathering, and a generous walk-in pantry keeps everything stocked and beautifully organized. Outdoor access from the laundry room adds a thoughtful and practical touch that active households will appreciate daily. Designed with simple construction in mind, this Craftsman plan delivers an attainable, character-rich build that feels far more spacious and refined than its footprint suggests.
REQUEST MODIFICATION
We will send you a quote based on your requests!
COST TO BUILD ESTIMATE
Get A Cost Estimate For This Plan
This estimate is for general budgeting only and should not be used for financing or contractor bids. Texas House Plans assumes no responsibility for estimate accuracy.
We will send you a quote based on your requests!
BEDROOMS: 3
BATHROOMS: 2.5
GARAGE SPACES: 0
HEATED SQ FT: 1,972 SF
TOTAL COVERED SF:
WIDTH: 55'-7"
DEPTH: 56'-4"
STORIES: 1
FOUNDATION:
EXTERIOR WALLS:
ROOF PITCH:
CEILING HEIGHT 1ST FLOOR:
CEILING HEIGHT 2ND FLOOR:
WHAT YOU WILL RECIEVE:
Within 1 -2 business days of purchasing your plan, you will be sent a digital Construction Drawing set in PDF format. The drawing set includes:
Shows boundaries of the foundation and dimensions of plumbing fixtures located in the foundation. This is not a structurally engineered foundation plan, but can be used by an engineer to create one.
Floor plan showing dimensions and annotations for all interior and exterior walls, door and windows, and key elements.
2D view of the homes exterior showing the design, finish materials, critical height relationships, door and window placements, and roof lines.
Top-down view of the roof, including ridge, valley, and hip locations, roof pitches, overhangs, and gutter and downspout locations.
Shows a section cut through the house and typical wall assembly. Shows details on how the wall is constructed and critical building heights.
Shows the location of light fixtures, switches, and outlets in the home.
This set includes:
- Exterior Rendering
- Foundation + Plumbing Layout Plan

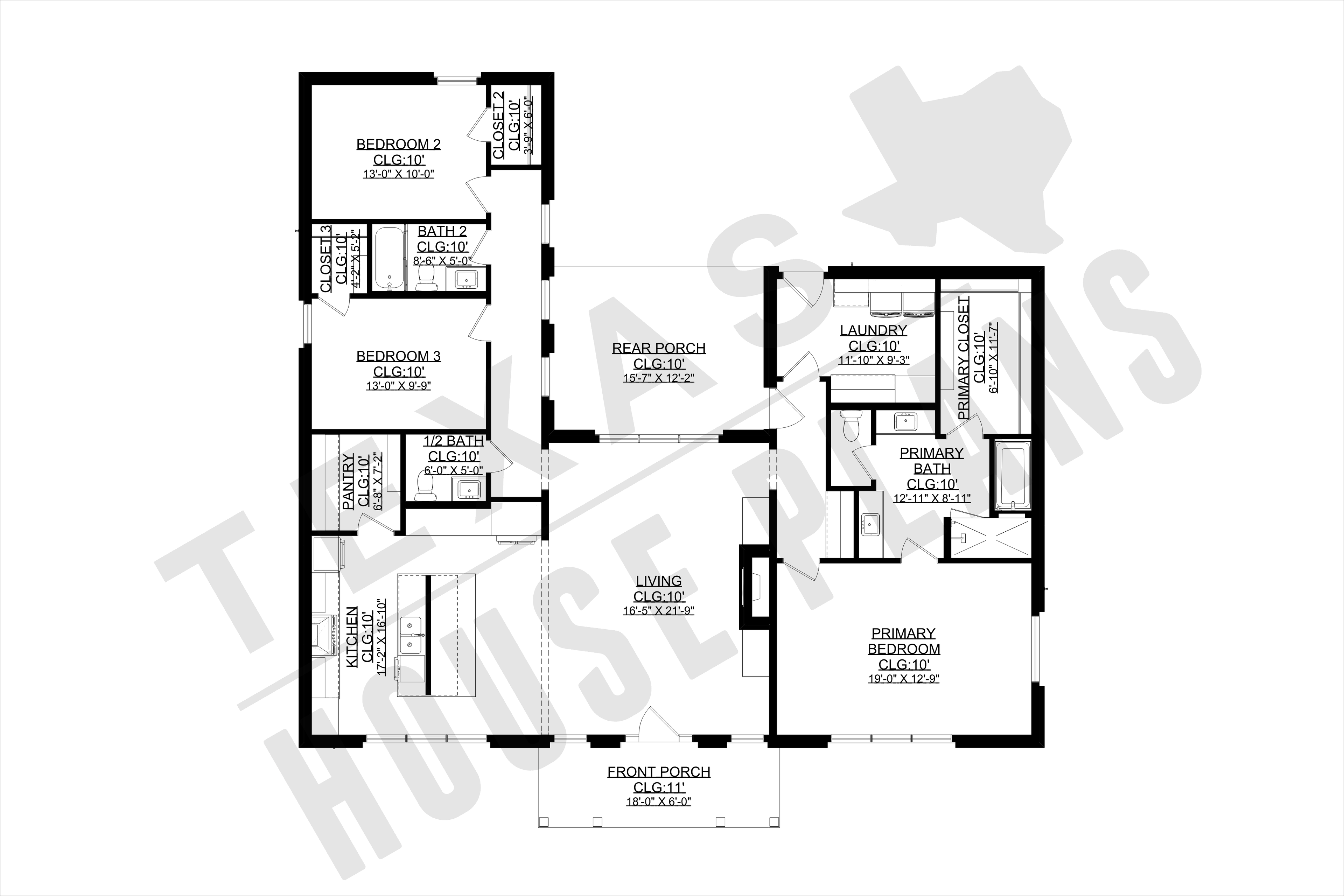

- Dimensioned Floor Plan

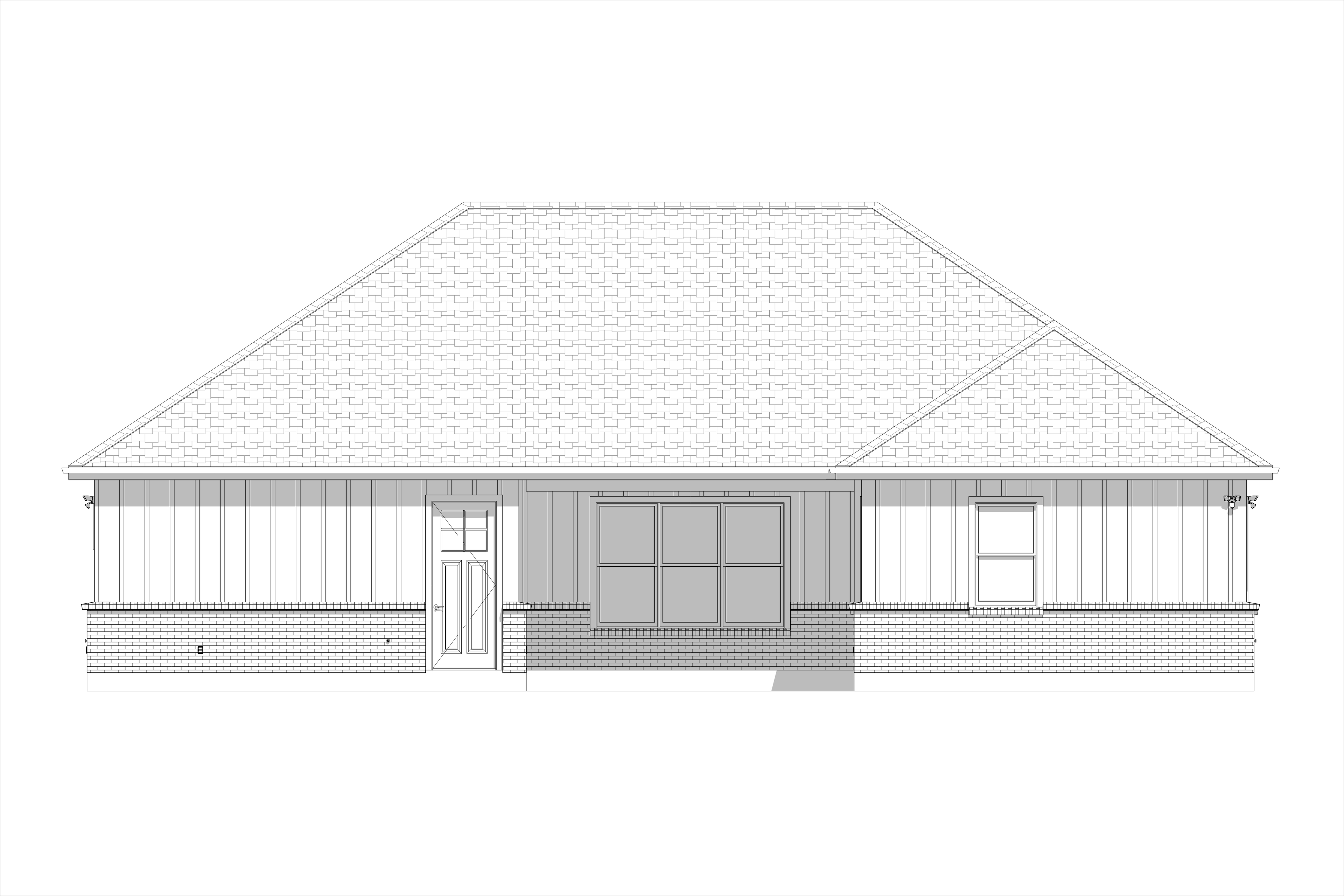

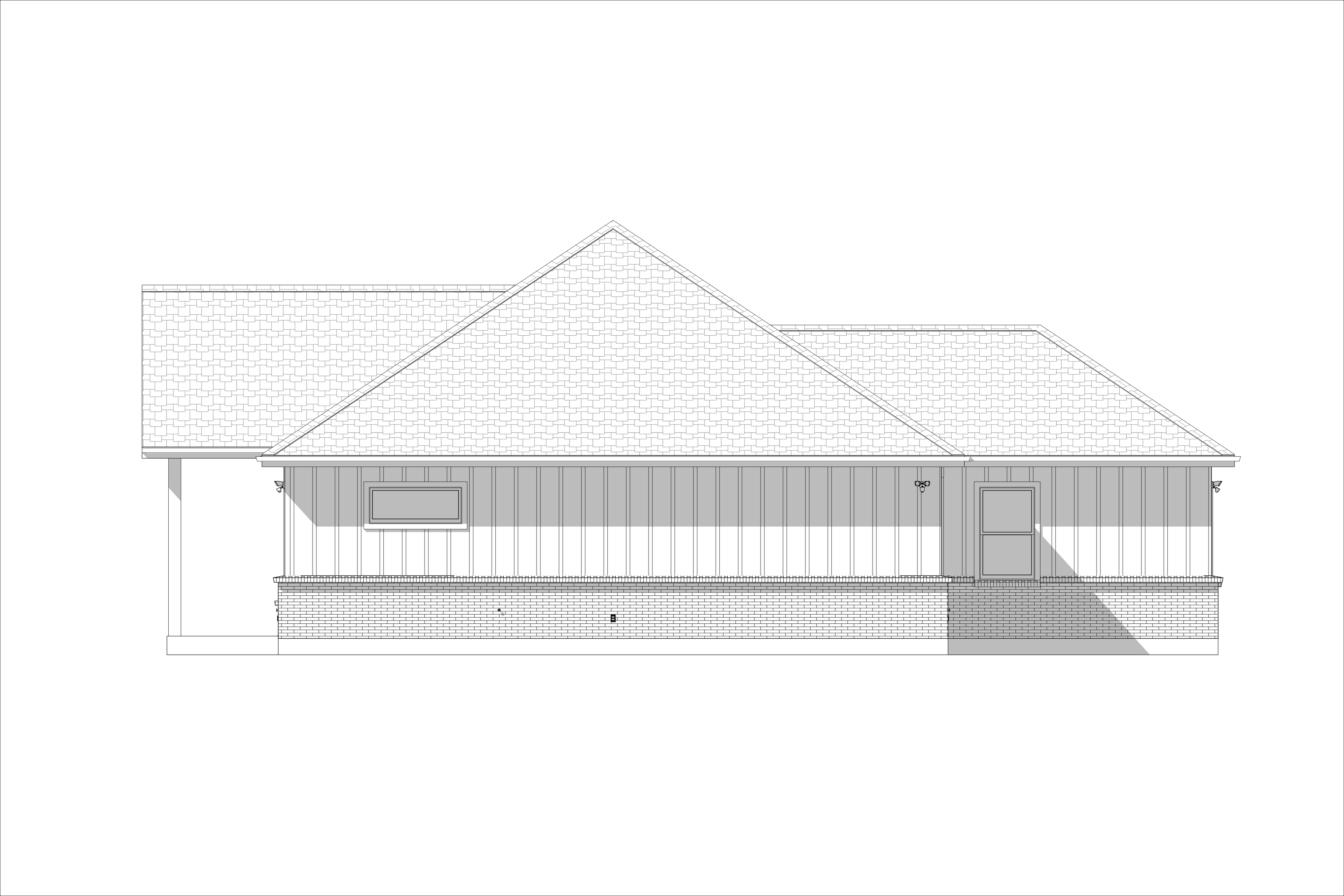

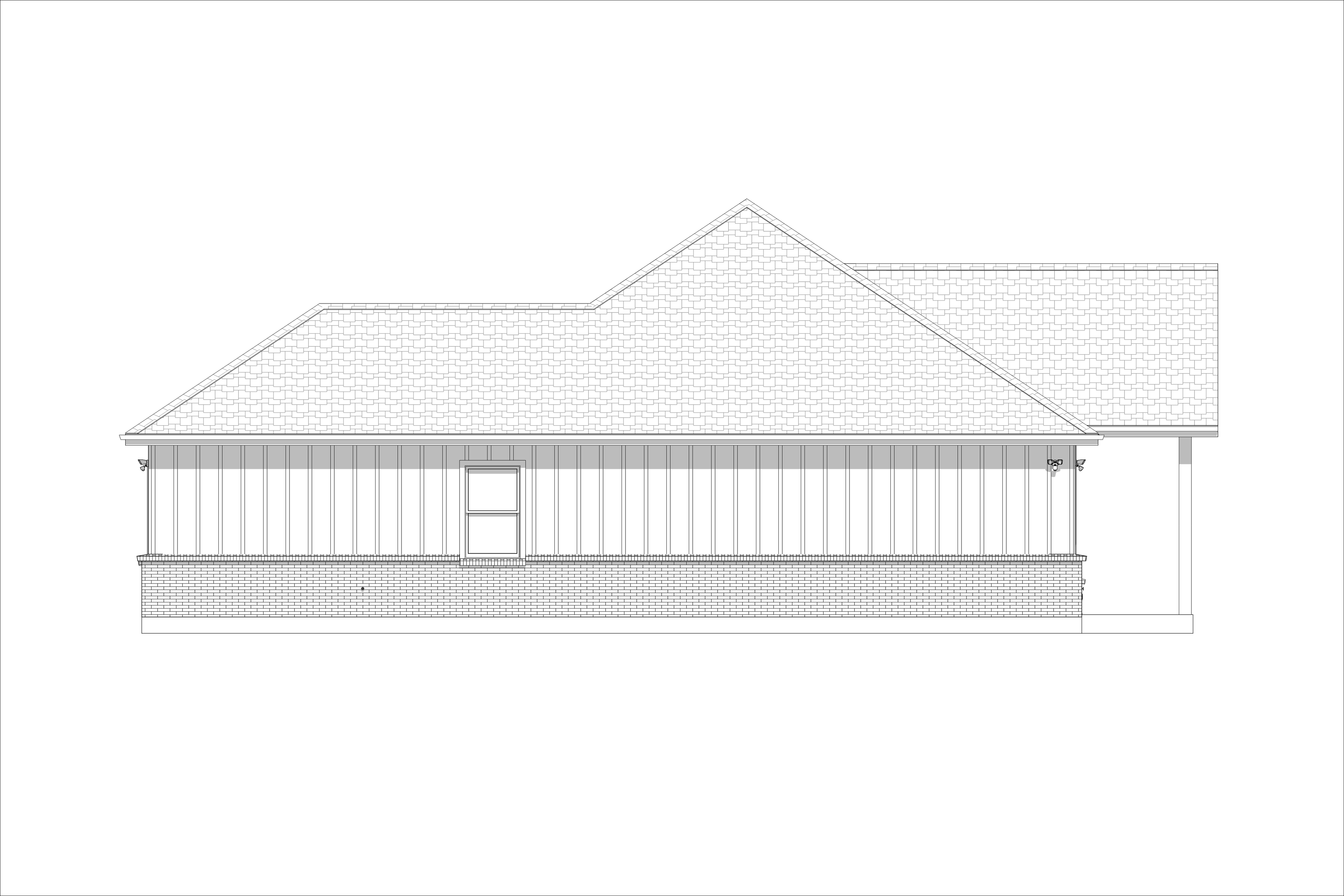

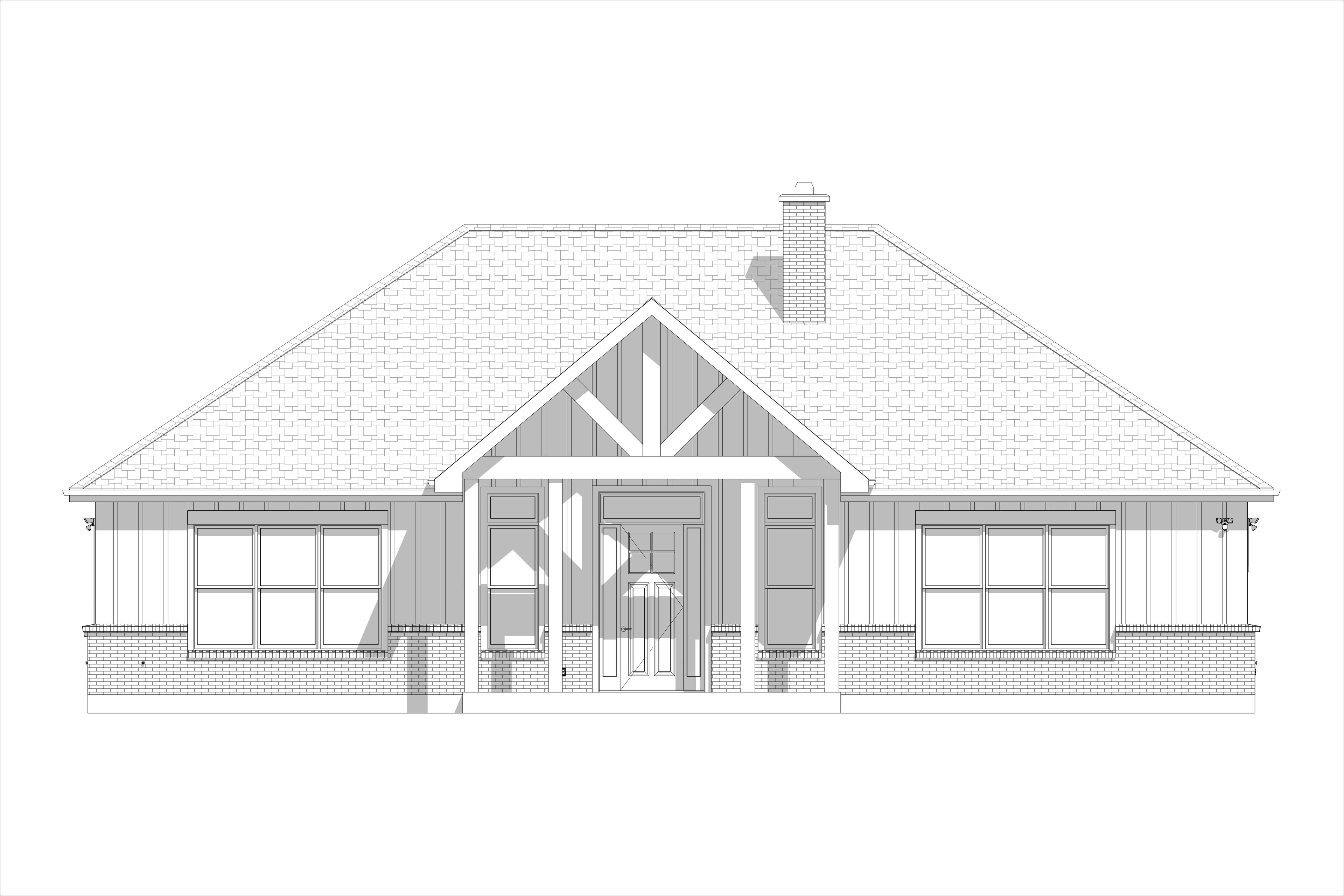

- Exterior Elevations
- Roof Plan
- Door + Window Schedule
- Lighting and Power Plan
- Cross Section + Wall Section
- Typical Details
The set does not include:
- Architectural or Engineering Stamp - handled locally if required
- Structural Foundation or Framing Plans
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings showing the actual plumbing pipe sizes and locations- your subcontractors handle this
- Energy calculations
- Site Plan (Add-on available)
- Cabinet Elevations (Add-on available)
