Plan No. 1004
3 Bedroom | 2.5 Bath | 1,632 SF Home
Additional Features:
Plan Description
3 Bedroom | 2.5 Bath | 1,632 SF Home
This hardworking yet stylish barndominium delivers 1,632 square feet of smart, efficient living space featuring 3 bedrooms and 2.5 bathrooms — all anchored by an impressive 4-car garage built for the hobbyist, car enthusiast, or tradesperson who needs serious space. A dedicated shop provides the ultimate workspace for projects, equipment, and storage, while a private office keeps business and daily tasks neatly separated from home life. Covered porches add rustic charm and a comfortable spot to unwind after a long day, and stairs to the attic offer additional storage or the potential for future finished space. Equal parts functional and livable, this barndo plan is the perfect blend of form and function for those who work hard and want a home that works just as hard right alongside them.
$2,000.00
What you will recieve:
Within 1 -2 business days of purchasing your plan, you will be sent an digital Construction Drawing set.
This set includes:

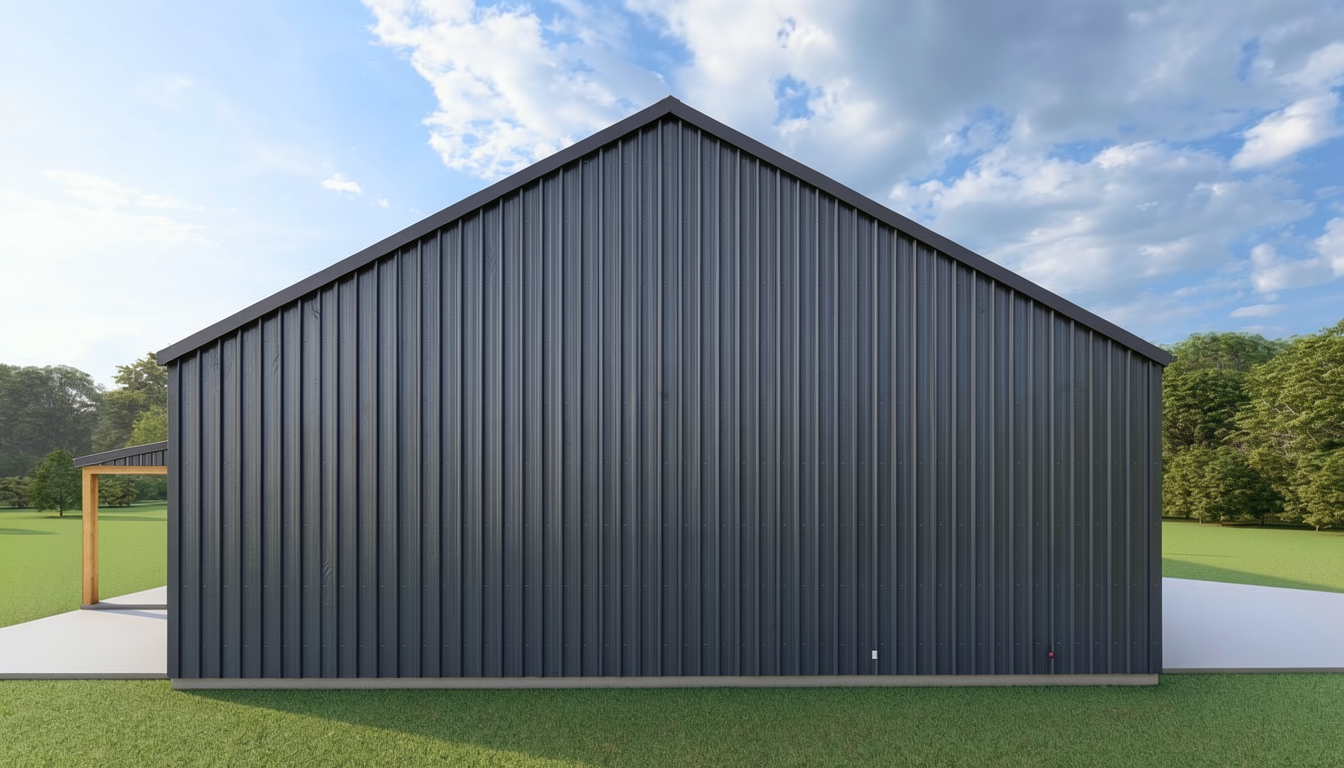

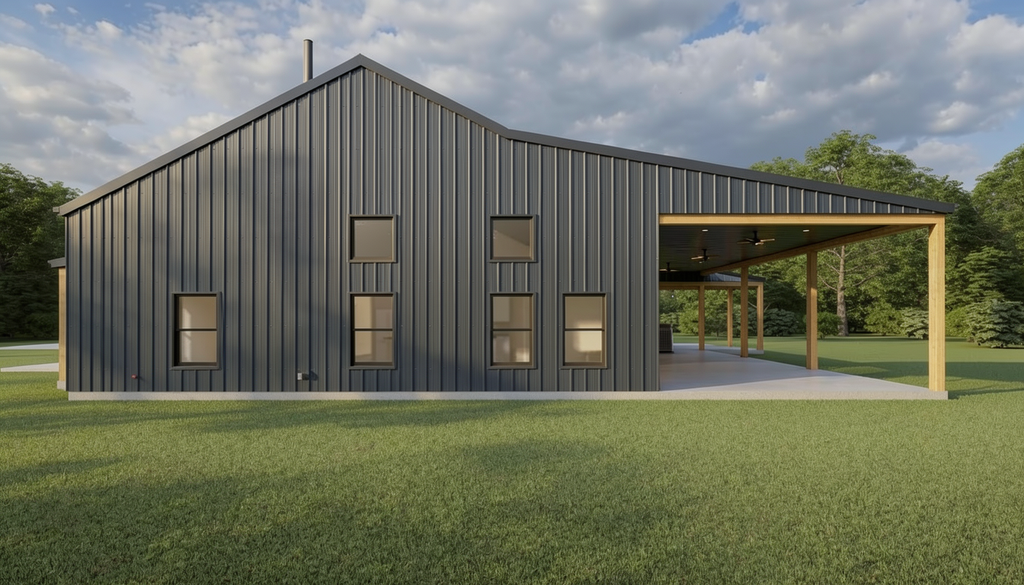

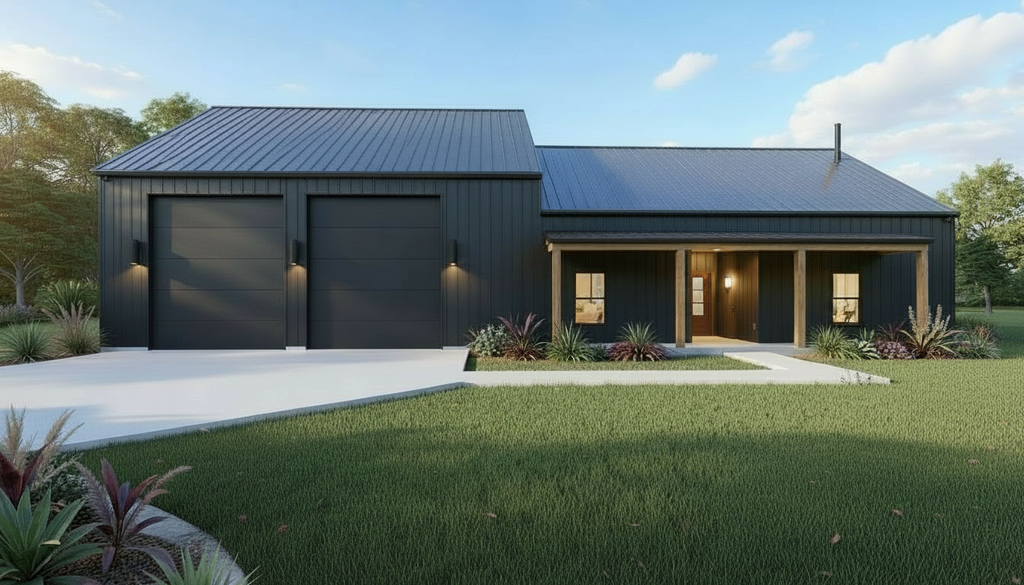

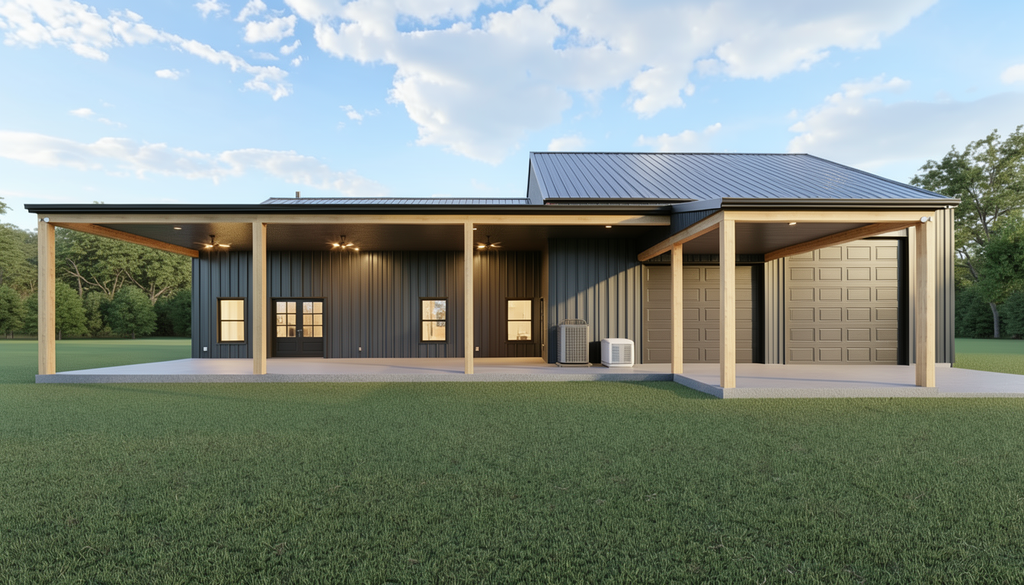

- Exterior Rendering
- Foundation + Plumbing Layout Plan
- Dimensioned Floor Plan
- Exterior Elevations
- Roof Plan
- Door + Window Schedule
- Lighting and Power Plan
- Cross Section + Typical Details
- Site Plan (If add-on is selected)
- Cabinet Elevations (If add-on is selected)
The set does not include:
- Architectural or Engineering Stamp - handled locally if required
- Structural Foundation or Framing Plans
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings showing the actual plumbing pipe sizes and locations- your subcontractors handle this
- Energy calculations
CONSTRUCTION DRAWING SET INCLUDES:
Shows boundaries of the foundation and dimensions of plumbing fixtures located in the foundation. This is not a structurally engineered foundation plan, but can be used by an engineer to create one.
Floor plan showing dimensions and annotations for all interior and exterior walls, door and windows, and key elements.

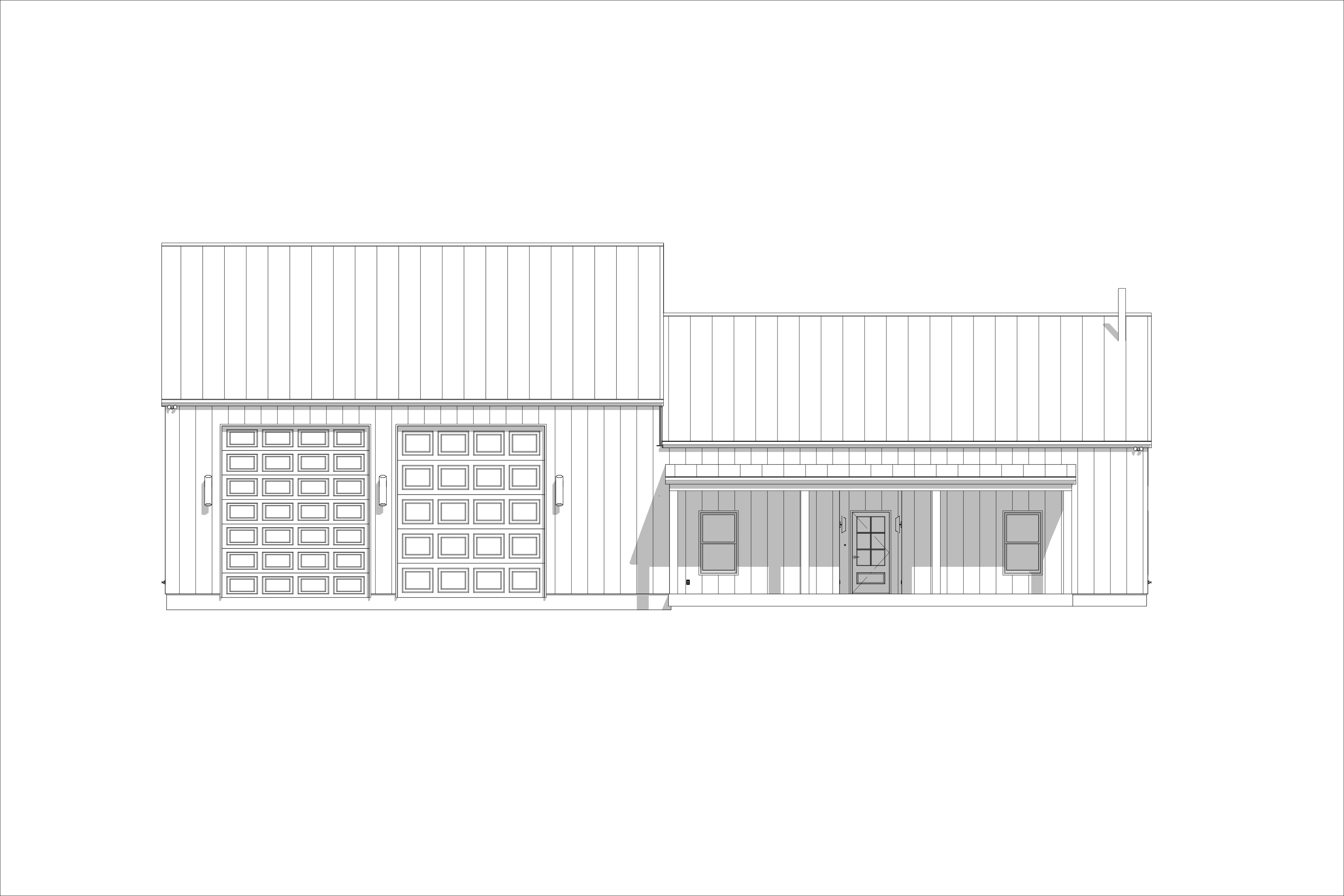

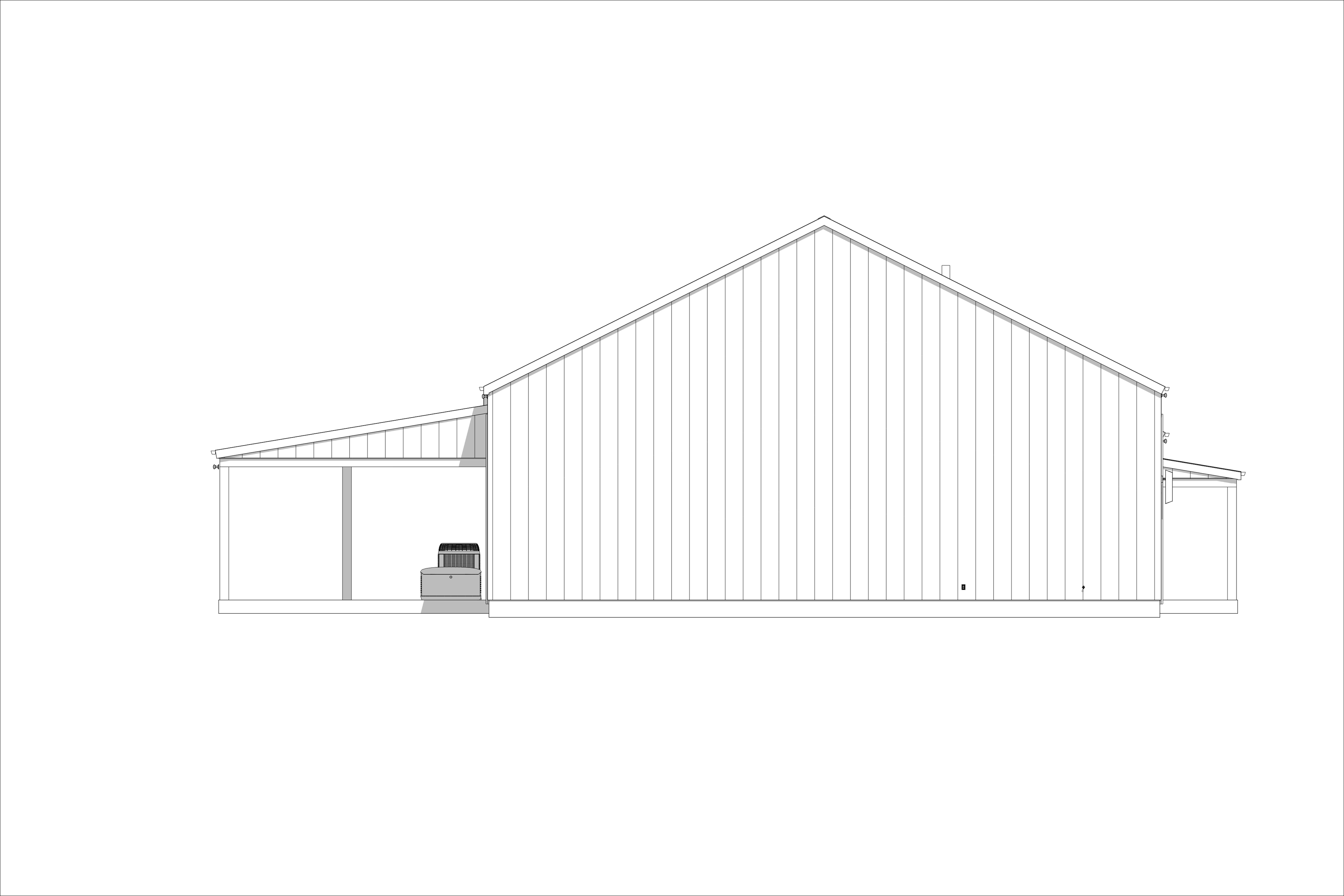

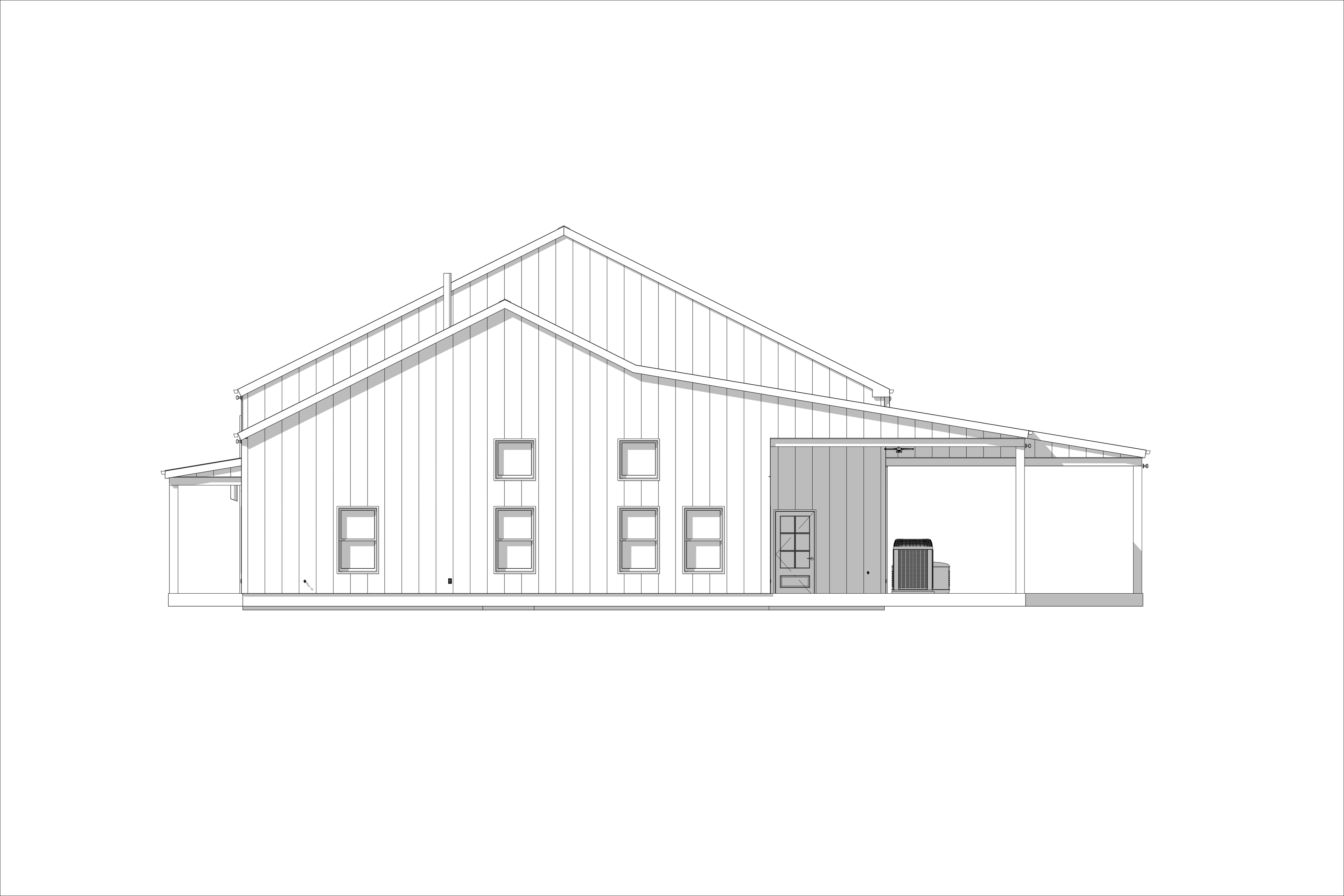

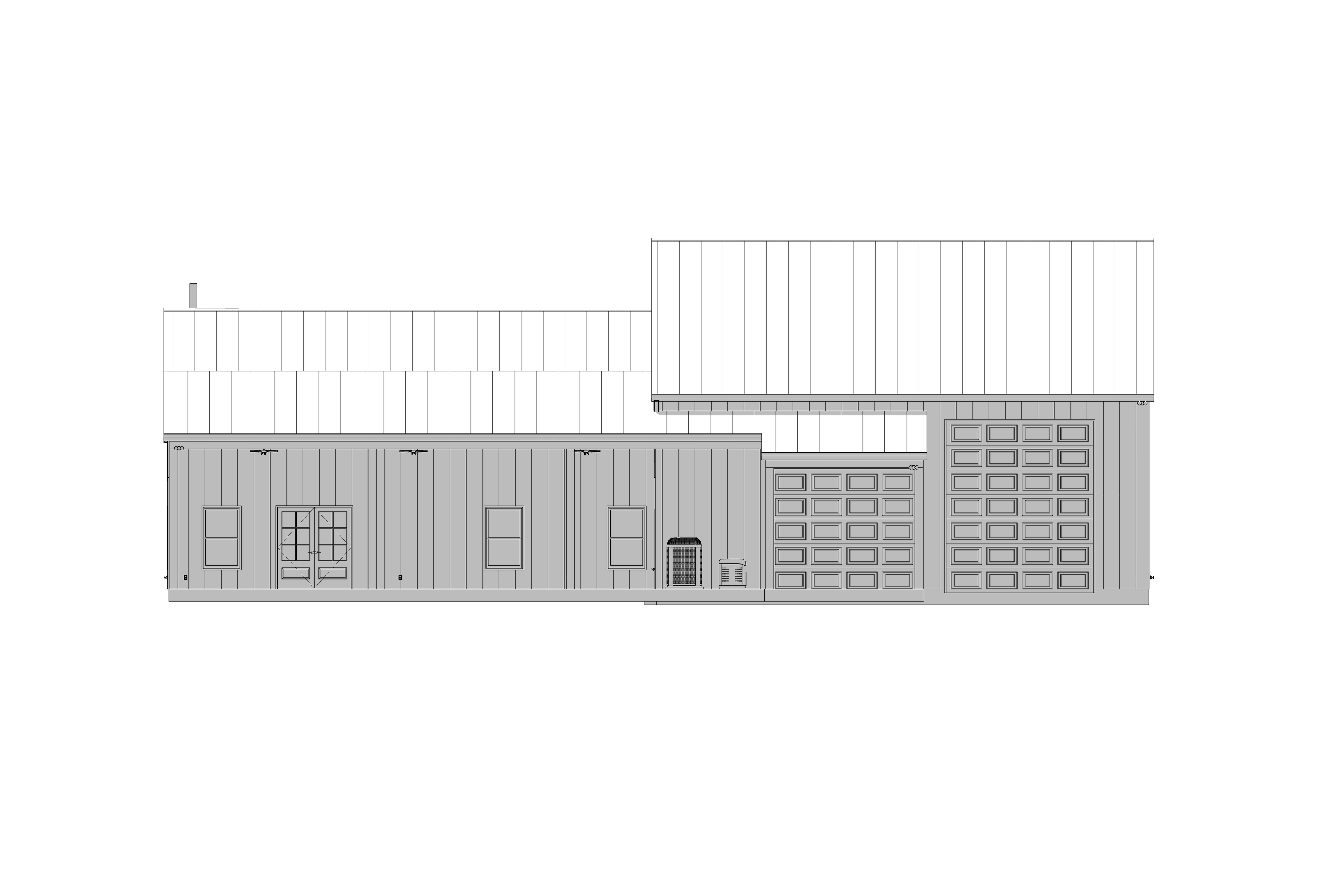

2D view of the homes exterior showing the design, finish materials, critical height relationships, door and window placements, and roof lines.
Top-down view of the roof, including ridge, valley, and hip locations, roof pitches, overhangs, and gutter and downspout locations.
Shows quantity, type, and size of the doors and windows located in the house.
Shows the location of light fixtures, switches, and outlets in the home.
Frequently asked questions
Can I request modifications to a house plan?
If you would like to make modifications to a house plan, please email us at admin@texashouseplans.com with the plan number and modifcation requests. We will provide a quote for the additional charge for the changes.
Are any purchases final sale?
Yes, because these are electronic files we are not able to offer refunds on plans that have been sent. If you have issues with an order please send us an email.
When will I get my order?
You will receive your drawing set via email set within 1 business day after purchase.
Do you offer printed sets?
While we don't offer printed sets, we can offer recommendations on where to get full size drawings sets printed. We also recommend checking with your builder for access to printed sets.
